How to increase 6.7 Powerstroke HP? The most effective ways to increase the horsepower of a Ford 6.7L Powerstroke are installing a custom ECM/TCM tune, upgrading to a high-flow cold air intake, replacing the restrictive factory cold-side intercooler pipe, and utilizing a comprehensive weight reduction system (such as an EGR/DPF delete kit) for off-road applications.
Combined, these modifications can safely add 50 to over 150 horsepower while significantly lowering Exhaust Gas Temperatures (EGTs) and reducing engine backpressure.

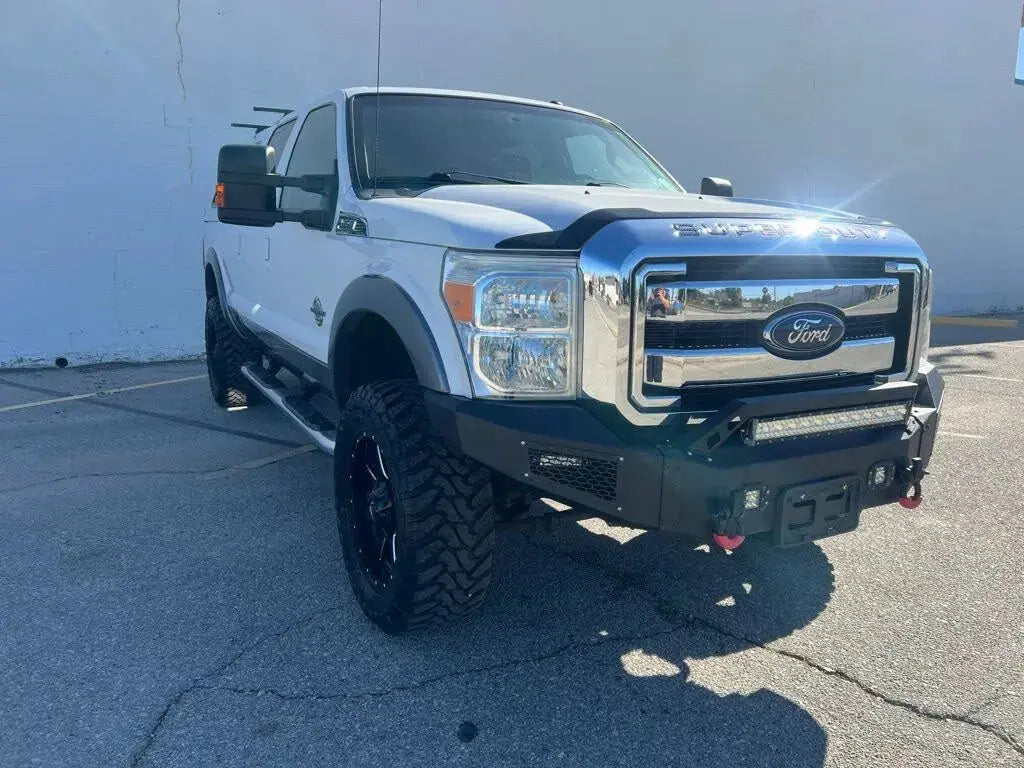

If you drive a 2011+ Ford Super Duty, you already know the 6.7L Powerstroke is a monster straight from the factory. However, to meet strict emissions standards, Ford left a massive amount of untapped potential on the table. Whether you are towing heavy loads, looking for better throttle response, or building a dedicated track truck, here is the technical guide to the modification process regarding unlocking the true horsepower of your 6.7L Powerstroke.
Top 4 Upgrades for 6.7 Powerstroke horsepower
1. Custom ECM & TCM Tuning (The Biggest Gain)
If you only do one modification to your truck, make it a custom tune. Factory tuning limits fuel delivery and turbo boost to keep the engine operating within a very conservative box. By utilizing a device capable of optimizing engine calibration parameters (such as EZ Lynk or SCT) loaded with custom files, you rewrite the engine’s fueling parameters and variable geometry turbo (VGT) vane positioning.
- Note on the Transmission: Do not skip TCM (Transmission Control Module) tuning. The 6R140 (and later 10R140) transmissions need higher line pressure to handle the added torque without slipping the clutches. A good tune can easily add +50 to +150 HP on a stock turbo.
2. High-Flow Air Intake & Intercooler Piping
More fuel requires more air. While the stock airbox is adequate for daily driving, it becomes a major bottleneck once you install a tune.
- Cold Air Intake (CAI): A high-flow CAI draws cooler, denser air into the Garrett turbocharger, improving spool-up time and reducing EGTs.
- The Intercooler Pipe Warning: Crucial advice: The factory cold-side intercooler pipe on the 6.7L is made of plastic. When you tune the truck and push boost levels past 30 PSI, this plastic pipe is notorious for bursting, leaving you stranded. Upgrading to a heavy-duty aluminum piping kit is mandatory for high-horsepower builds.
3. Comprehensive Delete Kits (Off-Road / Competition Use Only)
For track and off-road builds, the biggest enemies of the 6.7L Powerstroke are heat and backpressure caused by the DPF (Diesel Particulate Filter) and EGR (Exhaust Gas Recirculation) systems. These components choke the exhaust flow and feed hot, soot-filled air back into the intake manifold.
Removing these restrictions allows the V8 diesel to breathe freely, drastically dropping EGTs and reducing turbo lag. For those planning this modification, reviewing a comprehensive guide on DPF and EGR system removal is essential to understand the mechanical implications. For builders looking for a headache-free installation, addressing exhaust restriction issues by piecing together parts is often a mistake.
Instead, utilizing an all-inclusive solution like the Spetuner 2011-2019 6.7L Powerstroke All-in-One Kit ensures you have exactly what you need. This specific kit combines the EGR removal components, the high-flow exhaust piping, and all necessary block-off plates into one package. By guaranteeing perfect fitment and eliminating exhaust restrictions, this setup paired with an off-road tune completely transforms the truck's power delivery and reliability profile.
The ultimate "One-Click" solution for your build. This comprehensive kit includes high-flow stainless steel exhaust piping, a full EGR removal kit, and all necessary block-off plates. It’s designed to drastically lower EGTs and eliminate backpressure for off-road use.
4. Fuel System Reliability: The CP4 Disaster Prevention Kit
Before pushing your truck past the 550 HP mark, you must address the elephant in the room: the Bosch CP4.2 high-pressure fuel pump. If this pump fails (often due to poor fuel lubricity), it sends metal shavings through the entire fuel system, costing upwards of $10,000 in repairs. Installing a Disaster Prevention Kit (Bypass Kit) won't add horsepower, but it ensures that when you turn up the dial on your injectors and tune, your fuel system won't grenade your engine.
Expected HP gains summary
| Modification Type | Estimated HP Gain | Primary Benefit |
|---|---|---|
| Custom Tune (ECM + TCM) | +50 to +150 HP | Immediate power, better shifting |
| Cold Air Intake (CAI) | +10 to +15 HP | Faster turbo spool, lower EGTs |
| Intercooler Pipe Upgrade | N/A (Reliability) | Prevents blown plastic pipes at high boost |
| All-in-One Delete Kit (Off-Road) | +40 to +80 HP (w/ tune) | Massive EGT drop, zero backpressure |
Key considerations before modifying
While chasing higher horsepower numbers is exciting, ensuring your 6.7L Powerstroke remains reliable over the long term requires attention to a few critical details. Before you start bolting on parts, consider these factors:
- Legal Compliance (Off-Road Use Only): Modifications that remove emissions equipment (DPF, EGR, DEF) are strictly for competition or off-road use only. Using these on public highways may violate local or federal laws. Always check your local regulations.
- Transmission Health: The factory 6R140 and 10R140 transmissions are tough, but they have limits. If you are adding more than 100 HP, we strongly recommend TCM tuning to increase line pressure and prevent clutch slippage.
- EGT Monitoring: With increased fueling comes increased heat. If you manage heavy towing loads with a high-horsepower tune, installing a digital monitor (like an Edge CTS3) to keep an eye on your Exhaust Gas Temperatures is mandatory to prevent melting pistons.
DEFINITIONS
| Term | Definition |
|---|---|
| ECM | Engine Control Module; tuning changes engine calibration parameters like fueling and turbo control. |
| TCM | Transmission Control Module; tuning can increase line pressure and change shifting to better handle added torque. |
| VGT | Variable Geometry Turbo; tuning can adjust vane positioning to influence boost response. |
| EGTs | Exhaust Gas Temperatures; higher fueling increases heat, while airflow/exhaust changes can help reduce EGTs. |
| DPF | Diesel Particulate Filter; an emissions component that increases exhaust restriction/backpressure. |
| EGR | Exhaust Gas Recirculation; routes exhaust gases back into the intake, contributing heat/soot in the intake tract. |
| CAI | Cold Air Intake; a high-flow intake drawing cooler, denser air into the turbocharger. |
| CP4.2 | High-pressure fuel pump referenced as a major reliability risk; failure can spread metal shavings through the fuel system. |
Conclusion
The 6.7L Powerstroke is arguably one of the best diesel platforms Ford has ever built. However, it is severely restricted by factory tuning and emissions components. By addressing the airflow with a cold air intake, securing the boost with metal intercooler pipes, and freeing up the exhaust with a comprehensive delete kit and custom tune, you can transform your truck into a reliable, fuel-efficient, and powerful machine.
Ready to build your truck? Check out Spetuner's curated performance kits below:
- For 2011-2019 Models: Shop 2011-2019 6.7L Powerstroke Performance Parts
- For 2020+ Models: Shop 2020-2024 6.7L Powerstroke Performance Parts
Frequently asked questions (FAQ)
Q: How much horsepower can a stock 6.7 Powerstroke handle?
A: The article states the bottom end of the 6.7L Powerstroke is robust, and that stock connecting rods and pistons can comfortably handle around 600 to 650 horsepower; beyond that, you risk bending rods and may need a built engine.
Q: Does deleting a 6.7 Powerstroke increase MPG?
A: Yes, for off-road applications, removing the DPF and EGR systems removes significant exhaust restriction and stops the engine from going into "regen" mode (which dumps raw fuel into the exhaust). Most owners report potential fuel economy improvements of 2 to 4 MPG.
Q: Will a custom tune blow my head gaskets?
A: Unlike the older 6.0L engines, the 6.7L utilizes 6 head bolts per cylinder and is highly resistant to blowing head gaskets. As long as you monitor your EGTs and use a reputable custom tune that properly manages low-end torque, your head gaskets are safe.
Q: How much HP can you get out of a 6.7 Powerstroke?
A: With a stock fuel system and turbo, a "tuned and deleted" 6.7L Powerstroke typically maxes out around 550 to 580 RWHP (Rear Wheel Horsepower). To push beyond 600 HP, you will need to upgrade to a "Disaster Prevention" CP4 bypass or a larger injection pump and a non-VGT turbocharger setup.
Q: How can I get more power out of my 6.7 Powerstroke?
A: The formula for power is simple: Air + Fuel + Tuning. To get more power, start with a high-flow Cold Air Intake (CAI) and a custom Tune (ECM/TCM). For maximum gains, remove exhaust restrictions using a larger diameter exhaust system and upgrade the intercooler piping to handle the increased boost pressure.
Q: Is a CCV delete worth it for a 6.7 Powerstroke?
A: Yes. The factory Crankcase Ventilation (CCV) system vents oil vapors back into the intake, which coats the inside of your intercooler boots with oil. This oil degrades the silicone boots, causing them to blow off under boost. A kit designed for preventing oil buildup in the intake vents these vapors to the atmosphere, keeping your turbo and intake tract clean and dry.
Q: How much HP does deleting a 6.7 Powerstroke add?
A: It is a common misconception that the hard parts (pipes) add the power. The exhaust pipe itself adds minimal horsepower (approx. 10-20 HP from flow efficiency). However, removing the DPF allows you to run a higher horsepower tune that was previously impossible due to backpressure limits. The combination of the delete kit plus the tune is what unlocks the +100 to +150 HP gains.
