In the world of diesel engines, the 6.7 Powerstroke stands as a legend. Its roar, its strength—it’s a companion built for the bold. But even legends need care. The CCV (Crankcase Ventilation) filter is a small, often overlooked component that plays a massive role in your engine’s health. Replacing or rerouting it is not just maintenance; it’s a commitment to keeping your truck in peak condition.
This guide isn’t just a list of steps; it’s a journey into your truck’s heart. Let’s embark on this adventure together.
What Is the 6.7 Powerstroke CCV Filter?
Think of your engine as a living, breathing beast. The CCV filter acts as its lungs, filtering harmful oil vapors before they can choke the intake system. Over time, these vapors can lead to carbon buildup, reduced performance, and even damage to critical components like the turbo.
By maintaining or rerouting your CCV system, you’re ensuring that your engine breathes cleanly, runs efficiently, and lasts longer. This small effort pays dividends in power, reliability, and peace of mind.
How Often Should You Replace the CCV Filter on a 6.7 Powerstroke?
Ford recommends replacing the CCV filter every 67,500 miles, but your usage matters. If your truck is a workhorse—hauling trailers, climbing steep grades, or conquering rugged terrain—consider checking it every 50,000 miles.
Pro Tip: Frequent short trips or extended idling can also accelerate filter wear. Listen to your engine; it often knows when it’s time for attention.
How Do You Know If Your CCV Filter Needs Replacement?
Your truck won’t shout, but it will send signs:
· Blue Smoke: A hint of burnt oil in the exhaust.
· Oil Residue: Around the turbo or intake system.
· Performance Drops: Reduced power or increased fuel consumption.
Modern trucks may even throw an OBD code related to the CCV system. Keep an eye out for warning lights or diagnostic codes like P04DB (“Crankcase Ventilation System Disconnected”).
Is a CCV Reroute Worth It for Your 6.7 Powerstroke?
A CCV reroute is like giving your engine a breath of fresh air. By rerouting oil vapors away from the intake, you reduce buildup and keep critical components cleaner.
Advantages:
· Prolongs turbo and intake system life.
· Reduces carbon buildup.
Considerations:
· In regions with strict emissions regulations, a reroute might be non-compliant.
· Check your warranty terms before making modifications.
For many diesel enthusiasts, the trade-off is worth it. Cleaner internals mean more reliability and power over time.
Click to view the installation diagram and access the installation PDF document.
How to Replace or Reroute the CCV Filter on a 6.7 Powerstroke
What You’ll Need
Before we dive in, gather the essentials:
· Tools: 10mm socket wrench, worm gear clamps, clean rags, and a bit of grease.

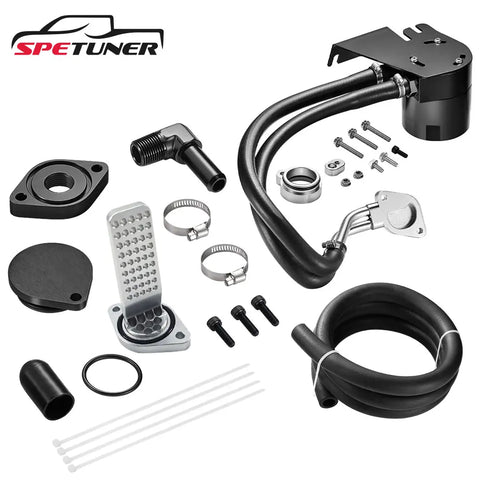

· Parts: The SPETUNER CCV Reroute Kit (complete with hoses, fittings, and adapters).
Step-by-Step Installation Guide
Preparation: Setting the Stage
1. Cool Down: Park the truck and let the engine cool completely. Working on a hot engine can lead to burns.
2. Disconnect the Battery: Remove the negative terminal to prevent accidental shorts.
3. Inspect Your Kit: Lay out all parts and compare them to the packing list. Missing anything? Don’t start until you’ve got it all.
Step 1: Removing the Old System
· Loosen the hot-side intercooler pipe and carefully remove it. Set it aside where it won’t collect debris.
· Place a bucket or drain pan under the truck to catch any residual fluids.
· Detach the fuel lines carefully. Let the system depressurize for about 5 minutes to avoid spills.
· Remove the bolts securing the fuel filter bracket and take out the bracket and filter.
Step 2: Preparing for the Reroute
· Remove the corrugated hoses connecting the CCV canister and turbo inlet.
· Install the provided rubber boot and secure it with clamps.
· Attach the short hose to the top barb and the long hose to the bottom barb, tightening each with worm gear clamps.
· Grease the aluminum adapter’s O-ring groove and place the O-ring securely in the groove.
Step 3: Installing the Catch Can
· Thread the fittings onto the catch can and tighten them with a wrench.
· Mount the catch can onto the provided bracket, ensuring it’s securely fastened.
· Connect the hoses:
Short hose to the catch can inlet.
Long hose to the outlet.
Step 4: Reassembly
· Reinstall the fuel filter bracket and reconnect the fuel lines.
· Reattach the hot-side intercooler pipe. Ensure all connections are tight and secure.
Final Touch: Double-check every bolt, clamp, and connection. The system should be airtight for optimal performance.
Post-Installation Checks and Maintenance
Start the Engine:
Let it idle while you inspect for leaks. Listen for any unusual sounds—everything should hum smoothly.
Routine Maintenance:
· Clean the catch can every oil change. It’s a simple task that ensures your system stays efficient.
· Periodically inspect hoses and clamps for wear or looseness.
FAQs: Your CCV Questions Answered
Q: Will a CCV reroute void my warranty?
A: It depends. Some manufacturers may void warranties for emissions-related modifications. Check with your dealer.
Q: How often should I clean the catch can?
A: Every oil change or as needed based on your driving conditions.
Q: Is this a DIY-friendly job?
A: Absolutely. If you’re comfortable with basic tools, this is a rewarding project that can be completed in under two hours.
Conclusion: Keeping Your Powerstroke Powerful
Replacing or rerouting your 6.7 Powerstroke CCV filter isn’t just about maintenance—it’s about honoring the beast under your hood. With cleaner air flowing through its veins, your engine is ready to tackle whatever challenges lie ahead.
So, grab your tools, fire up your passion, and make your truck proud. Every turn of the wrench is a step toward a stronger, cleaner, and more reliable 6.7 Powerstroke.
Through these steps and insights, may you find the satisfaction of knowing you’ve done right by your truck. See you on the open road!
