TL;DR:
A Duramax Y-bridge upgrade is worth considering only when the problem is confirmed around the intake-side charge-air path, such as the cold-side pipe, Y-bridge area, boots, clamps, or couplers. For compatible 2006-2010 6.6L Duramax LBZ/LMM trucks, a matched Y-bridge and cold-side pipe kit can improve sealing reliability and reduce repeated boost-leak issues.
- Upgrade if: you have hissing under boost, oil residue near boots, repeated boot blow-off, cracked cold-side piping, or confirmed leaks near the Y-bridge connection.
- Diagnose first if: low boost may come from the turbo, intercooler, hot-side pipe, sensors, fuel restriction, or exhaust-side issues.
- Check before buying: confirm year, engine generation, VIN code, emissions layout, pipe routing, sensor ports, and product-page fitment notes.
Bottom line: Choose a cold-side pipe only when the pipe is the confirmed failure; choose a Y-bridge and cold-side pipe kit when the full intake-side connection area needs to be refreshed.
The intake and charge-air tract of a turbo diesel pickup handles high boost pressure, heat, vibration, and engine movement, especially when towing, hauling, or running under sustained load. When troubleshooting low boost or updating a Duramax for better charge-air reliability, one component that often comes up is the intake bridge assembly, commonly called the Y-bridge.
However, a Duramax Y-Bridge Upgrade is not a blind fix for every low-boost complaint. The Y-bridge is only one part of the charge-air path. A boost leak can also come from the cold side pipe, hot side pipe, intercooler, boots, clamps, sensors, turbocharger connections, or other related systems. The best approach is to diagnose the problem first, then choose the correct replacement or upgrade.
This guide explains what a Duramax Y-bridge does, when an upgrade makes sense, how LBZ/LMM fitment differs from other Duramax generations, and how to choose the right Y-bridge and cold-side pipe kit without guessing.
What Is a Duramax Y Bridge?
The Y-bridge is part of the Duramax intake-side charge-air path. After compressed air moves through the turbocharger, hot side pipe, intercooler, and cold side intercooler pipe, the Y-bridge helps route cooled charge air into the intake side of the engine. If you need to confirm the route before diagnosing the bridge area, this hot side and cold side intercooler pipe comparison explains where each side sits in the system.
A Duramax Y-bridge upgrade usually replaces or improves the factory Y-bridge area, cold-side piping, boots, clamps, or related charge-air connections. The goal is not simply to install a larger-looking part. The real goal is to improve sealing, reduce weak connection points, and support a smoother charge-air path for the specific truck application.
| Charge-Air Step | Component | Inspection Focus |
|---|---|---|
| 1 | Turbocharger outlet | Outlet connection, clamp seat, heat exposure, and oil residue |
| 2 | Hot side intercooler pipe | Boot condition, clamp position, pipe routing, and rubbing marks |
| 3 | Intercooler | Inlet, outlet, tank seams, pressure leaks, and mounting damage |
| 4 | Cold side intercooler pipe | Cracks, couplers, oil film, bead roll, and intake-side routing |
| 5 | Y-bridge | Sealing surface, boots, clamps, bridge fitment, and sensor or hose clearance |
Bottom line: the Y-bridge is not an isolated part. It works with the cold side pipe, boots, clamps, intercooler outlets, intake-side connections, sensors, hoses, and surrounding engine-bay layout.
Should You Upgrade the Duramax Y Bridge?
A Y-bridge upgrade may be worth considering when the problem is connected to the intake-side charge-air path. If the truck has low boost, hissing, poor towing response, or an underboost code, inspect first. Those symptoms can come from the Y-bridge area, cold side pipe, hot side pipe, intercooler, boots, clamps, turbocharger connections, sensors, or other systems.
| Your Situation | Best First Step | Why It Fits |
|---|---|---|
| Cracked or leaking cold side pipe only | Cold side pipe replacement | The Y-bridge may not need replacement if the failure is isolated to the pipe. |
| Repeated leaks near the Y-bridge or intake-side connection | Y-bridge and cold side pipe inspection | The bridge, boots, clamps, or pipe-end retention may be part of the problem. |
| Boots keep popping off under boost | Inspect couplers, pipe beads, clamps, and alignment | A stronger pipe alone will not help if the coupler or clamp setup is wrong. |
| Truck is used for towing or higher-load driving | Inspect the full charge-air path | Sustained load can expose weak charge-air connections. |
| Low boost but no visible pipe or boot damage | Pressure test or smoke test first | Low boost can come from many systems, not just the Y-bridge. |
Bottom line: upgrade the Y-bridge when the Y-bridge area, intake-side pipe routing, boots, clamps, or related connections are part of the problem. Do not use a Y-bridge kit as a blind fix for every low-boost complaint.
Common Reasons Duramax Owners Consider a Y Bridge Upgrade
Most Duramax owners consider a Y-bridge upgrade for reliability, sealing, or airflow-path reasons. These issues often appear during towing, heavy throttle, tuned use, or after factory components age.
| Search Intent | Possible Problem | What to Inspect |
|---|---|---|
| Boost leak under load | Boot, clamp, pipe, intercooler, or Y-bridge sealing issue | Pressure-test the charge-air system |
| Cracked or leaking cold-side pipe | Aging pipe section, weak connection point, impact damage, or heat-cycle fatigue | Cold side pipe, boots, pipe ends, and intercooler outlet |
| Oil residue near boots | Charge-air seepage around a connection point | Clamp tension, boot seating, pipe alignment, and coupler condition |
| Repeated boot blow-off | Poor clamp engagement, smooth pipe end, wrong coupler size, or pipe misalignment | Bead-rolled ends, coupler condition, clamp location, and alignment |
| Towing or tuned-truck reliability concern | Higher load exposing weak airflow connections | Full hot side and cold side piping system |
Duramax Generation Fitment Matters
The phrase Duramax Y Bridge Upgrade is broad, but the part itself is not universal. Different Duramax generations use different intake, emissions, turbo, sensor, and charge-air layouts. Always choose a vehicle-specific kit and verify product-page notes before ordering.
| Duramax Platform | Typical Model Years | Y-Bridge Buying Note |
|---|---|---|
| LB7 | 2001-early 2004 | Use only LB7-specific Y-bridge or intake components. |
| LLY | 2004.5-2005, with some transitional listings depending on VIN and application | Confirm the exact engine, intake layout, emissions layout, and product listing before ordering. |
| LBZ | 2006-2007 Classic applications | Use LBZ-specific notes and verify VIN, pipe routing, and surrounding hardware. |
| LMM | 2007.5-2010 | Use LMM-specific notes and verify emissions layout before buying. |
| LML | 2011-2016 | Requires LML-specific fitment; do not assume LBZ/LMM compatibility. |
| L5P | 2017+ | Different engine generation; use L5P-specific parts only. |
Fitment reminder: a Y-bridge kit for 1 Duramax generation should not be treated as a universal Duramax part. Confirm year, make, model, engine code, VIN information, emissions configuration, truck body style, and product-page notes before purchase.
Y Bridge Upgrade vs Cold Side Pipe Replacement
Not every intake-side charge-air issue requires a full Y-bridge kit. Sometimes the cold side pipe, boot, or clamp system is the real failure point. Use the table below to choose the right starting point.
| Option | Best For | Decision Note |
|---|---|---|
| Cold side pipe only | Replacing a cracked or leaking cold side pipe | Good when the Y-bridge area is not the issue. |
| Y-bridge only | Addressing Y-bridge area sealing, intake connection, or airflow-path concerns | Fitment and surrounding components must be verified. |
| Cold side pipe and Y-bridge kit | Refreshing the intake-side charge-air path together | Useful when both pipe and bridge areas are concerns. |
| Full charge-air system inspection | Repeated boost leaks, towing issues, or unclear failure source | Inspect hot side pipe, intercooler, boots, clamps, sensors, and turbo connections too. |
Bottom line: choose a cold side pipe when the pipe is the confirmed failure. Choose a Y-bridge kit when the intake-side bridge area, boot connections, or full cold side path need to be addressed together. For a broader comparison of replacement paths, this OEM and aftermarket intercooler pipe comparison explains when factory-style parts or revised aftermarket piping may make sense.
How to Diagnose a Duramax Y-Bridge or Cold-Side Leak
Before replacing parts, inspect the charge-air path carefully. A small leak can look like a turbo issue, sensor issue, or a fueling problem. A proper diagnostic process helps prevent unnecessary purchases.
- Inspect the cold-side pipe for cracks, rubbed areas, loose couplers, or oil residue around pipe ends.
- Check the Y-bridge area for loose boots, poor clamp seating, damaged connection points, or signs of air seepage.
- Inspect the intercooler outlet, hot side pipe, and all charge-air boots before assuming the Y-bridge is the only problem.
- Check related sensors, hose routing, and nearby components that may affect installation or sealing.
- If the leak is not obvious, perform a pressure test or smoke test using safe pressure limits and service information for your truck.
| Method | Best For | Limitation |
|---|---|---|
| Visual inspection | Finding cracked pipes, slipped boots, oil residue, loose clamps, and rubbing marks | May miss small leaks that only open under boost |
| Pressure test | Confirming charge-air leaks before replacing parts | Requires proper tools, safe pressure limits, and service information |
| Smoke test | Finding hidden leaks around couplers, intercooler tanks, pipe joints, and Y-bridge connections | May not fully repeat high-boost driving load |
What to Look For in a Duramax Y Bridge Kit
A good Duramax Y-bridge kit should be judged by fitment, sealing, included hardware, installation requirements, and compatibility with the truck's existing setup. Material matters, but material alone does not determine whether the kit will work well.
For a broader fitment workflow before comparing parts, use this diesel truck intercooler pipe fitment checklist to review pipe side, routing, boots, clamps, and vehicle details.
- Vehicle-specific fitment: match the exact Duramax generation, year range, model, engine code, and truck platform.
- Pipe and bridge material: aluminum construction is commonly used for durability and resistance to cracking compared with aging plastic or weak factory pipe sections.
- Pipe diameter: a 3-inch pipe may support smoother airflow on compatible applications, but it must match the kit design and truck layout.
- Pipe-end design: bead-rolled or properly formed pipe ends help couplers stay seated under boost.
- Boot and clamp quality: weak boots or poor clamp seating can still cause leaks even with upgraded piping.
- Sensor and hose compatibility: confirm all required ports, hoses, sensors, and connection points.
- Installation requirements: check whether cutting, fabrication, tuning, extra hardware, or supporting parts are required.
- Emissions layout: some intake-related upgrades may interact with factory emissions-related components depending on platform and kit design.

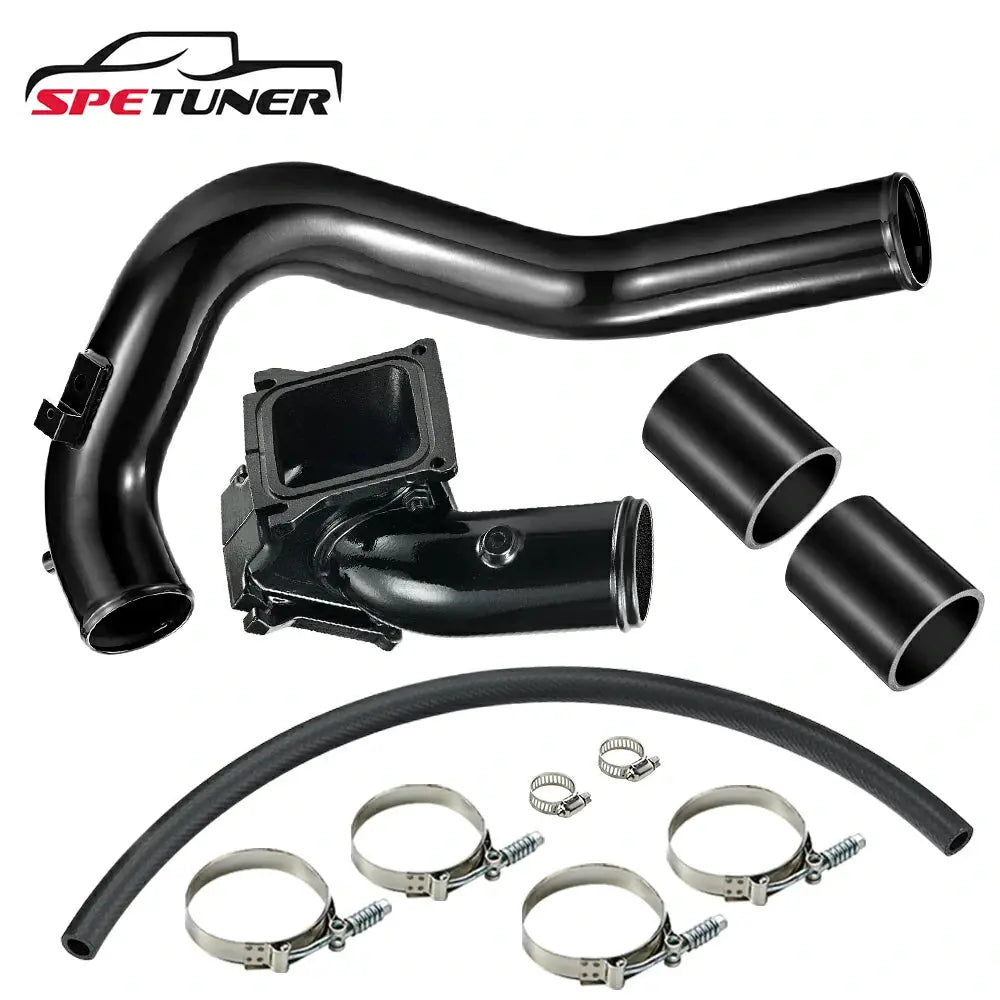

SPETUNER Product Fitment: LBZ/LMM Y-Bridge and Cold Side Pipe Kit
For owners shopping a Duramax Y Bridge Upgrade for compatible LBZ/LMM applications, SPETUNER offers a 3-inch cold side intercooler pipe and Y-Bridge kit for 2006-2010 6.6L Duramax LBZ/LMM trucks.
This SPETUNER kit combines a 3.0-inch mandrel-bent aluminum cold side pipe, Y-bridge components, triple-reinforced silicone boots, and clamps for listed LBZ/LMM trucks. Confirm VIN code, emissions layout, and product-page fitment notes before ordering.
Use the table below as a product-selection summary, then confirm the latest product-page information before purchase because fitment notes, included hardware, pricing, or product details may be updated over time.
| SPETUNER Product Detail | Listed Information to Verify |
|---|---|
| Product type | Cold side intercooler pipe and Y-Bridge kit |
| Pipe diameter | 3.0 inches |
| Pipe material | Mandrel-bent aluminum |
| Coupler material | Triple-reinforced silicone |
| Listed LBZ fitment | 2006-2007 Chevy Silverado and GMC Sierra 2500HD/3500HD with 6.6L LBZ-related applications; verify VIN and product-page notes |
| Listed LMM fitment | 2007.5-2010 Chevy Silverado and GMC Sierra 2500HD/3500HD with 6.6L LMM Duramax |
| VIN code note | Product details list LBZ VIN code 2 or D and LMM VIN code 6; verify against your truck before ordering |
If you only need a cold-side pipe replacement, a different engine-generation fitment, or a broader platform comparison, review the collection before narrowing the product choice.
Is This SPETUNER Y-Bridge Kit Right for Your Truck?
Use this quick match table before ordering. It helps separate a good product fit from situations where more diagnosis or a different part is needed.
| Good Match | Not a Good Match |
|---|---|
| Compatible 2006-2010 6.6L Duramax LBZ/LMM trucks listed on the product page | LB7, LLY, LML, L5P, or any unverified Duramax application |
| Trucks with intake-side boost leaks, weak cold side piping, or repeated boot sealing issues around the Y-bridge or cold side area | Trucks with low boost caused by turbo control, sensor issues, fuel restriction, exhaust-side leaks, or unrelated engine-system problems |
| Owners who want to refresh the cold side pipe and Y-bridge area together with matched hardware | Owners who only need a simple standalone boot, clamp, or isolated cold side pipe replacement |
How to Choose the Right SPETUNER Option
Use this simple process before ordering a Duramax Y-bridge or cold side pipe kit:
- Confirm your truck's year, make, model, and engine generation.
- Check the VIN information and product-page fitment notes, especially on 2006-2010 LBZ/LMM-related applications.
- Identify whether the problem is the cold side pipe, Y-bridge area, boot, clamp, intercooler connection, or another charge-air component.
- Decide whether you need a cold side pipe only, a Y-bridge and cold side pipe kit, or a broader intercooler piping inspection.
- Review product photos to confirm pipe routing, Y-bridge layout, coupler style, included hardware, and connection points.
- Check whether the truck has aftermarket turbo, aftermarket intercooler, custom intake, emissions-related changes, or tuning that could affect compatibility.
Installation, Tuning, and Compliance Notes
Installation requirements vary by Duramax generation, truck condition, previous modifications, corrosion level, and engine bay layout. A careful installer should verify boot seating, clamp orientation, hose routing, pipe clearance, sensor connections, and surrounding components before startup.
Installation Checklist
- Compare the new Y-bridge and pipe against the old parts before installation.
- Clean oil film and old residue from pipe ends, boots, couplers, and mating surfaces.
- Seat each boot evenly on the pipe bead or connection point before tightening clamps.
- Align the full charge-air path before final tightening so boots are not twisted or stretched.
- Position clamps squarely behind the bead or raised lip, not on the edge of the boot.
- Verify sensor ports, hose routing, wiring clearance, and nearby component clearance.
- After installation, check for boost leaks, rubbing, boot movement, and abnormal noises during normal driving.
Tuning note: do not assume every Duramax Y Bridge Upgrade has the same tuning requirement. Stock trucks, tuned trucks, aftermarket turbo setups, custom intercooler systems, and emissions-adjacent modifications can require different compatibility checks. Follow the specific product page and consult a qualified diesel technician when needed.
Compliance note: before modifying diesel intake, airflow, or emissions-adjacent components, check all applicable federal, state, and local regulations. Do not remove, bypass, disable, or impair required emissions controls on public-road vehicles unless permitted by applicable law. If a part is labeled for racing, competition, or off-road use only, follow the stated usage restrictions.
Diesel Intercooler Pipe Upgrades
Replacing a cracked cold side pipe, chasing repeated boost leaks, or refreshing the LBZ/LMM intake-side charge-air path? Compare the Duramax Y-bridge kit, cold side pipe kit, and full intercooler pipe collection before ordering.
References
- Garrett Motion: "How a Turbo Works - Basic Guide." Available from Garrett Motion Turbo Basic Guide.
- GM Authority: "GM Duramax Engine Family Info, Specs, Wiki." Available from GM Duramax Engine Family Overview.
- U.S. Environmental Protection Agency: "Aftermarket Defeat Devices and Tampering are Illegal and Undermine Vehicle Emissions Controls Enforcement Alert." Available from EPA Enforcement Alert.
- Legal Information Institute: "40 CFR 1068.101 - What general actions does this regulation prohibit?" Available from 40 CFR 1068.101.
- California Air Resources Board: "Aftermarket, Performance, and Add-on Parts." Available from CARB Aftermarket Parts Program.
FAQ
Q1: What is a Duramax Y Bridge Upgrade?
A1: A Duramax Y Bridge Upgrade replaces or improves the Y-bridge and related intake-side charge-air components on a Duramax diesel engine. The Y-bridge helps route compressed air from the intercooler and cold side pipe into the intake side of the engine. Owners usually consider this upgrade when dealing with boost leaks, weak factory connections, cracked cold side piping, repeated boot blow-off, or airflow reliability concerns. It should be selected by engine generation and confirmed fitment, not by the Duramax name alone.
Q2: Is a Duramax Y-bridge the same on every engine generation?
A2: No, a Duramax Y-bridge is not the same on every engine generation. LB7, LLY, LBZ, LMM, LML, and L5P trucks can use different intake layouts, emissions configurations, turbo routing, intercooler piping, boots, clamps, and sensor connections. A Y-bridge kit designed for one generation should not be treated as a universal Duramax part. Confirm the truck's year, make, model, engine code, VIN information, emissions layout, and product-page fitment notes before buying.
Q3: What symptoms suggest a Duramax Y-bridge or cold side pipe problem?
A3: Common symptoms include hissing under boost, low boost pressure, oil residue around boots or couplers, repeated boot blow-off, reduced throttle response, poor towing performance, or visible cracks in the cold side piping. These signs can point toward the Y-bridge, cold side pipe, silicone coupler, T-bolt clamp, or intercooler outlet, but they are not final proof. Inspect the full charge-air path and use a pressure test or smoke test if the leak is not visible.
Q4: Does a Duramax Y Bridge Upgrade fix every boost leak?
A4: A Duramax Y Bridge Upgrade does not fix every boost leak. It may help when the leak comes from the Y-bridge area, cold side pipe, boots, clamps, or intake-side charge-air connections being replaced. Boost leaks can also come from the hot side pipe, intercooler tanks, loose couplers, damaged sensors, turbo connections, or other intake components. Diagnose the leak source before buying parts so you do not replace the wrong section of the system.
Q5: Should I replace only the cold side pipe or choose a Y-bridge kit?
A5: Replace only the cold side pipe when the pipe is cracked, leaking, or damaged and the Y-bridge area is still sealing correctly. Choose a Y-bridge and cold side pipe kit when the truck has repeated intake-side sealing problems, weak factory connections, airflow-path concerns, or aging boots and clamps around the Y-bridge area. If the leak source is unclear, inspect the intercooler outlet, pipe ends, couplers, clamps, and bridge connection before ordering.
Q6: Is the SPETUNER Duramax Y-bridge kit compatible with all Duramax trucks?
A6: No, the SPETUNER Duramax Y-bridge kit referenced here is not compatible with all Duramax trucks. The product page lists it for specific 2006-2010 6.6L Duramax LBZ/LMM Chevy Silverado and GMC Sierra 2500HD/3500HD applications. It should not be assumed to fit LB7, LLY, LML, L5P, or unverified Duramax platforms. Review the current product page, year range, engine code, VIN information, cold side routing, and included hardware before ordering.
Q7: How do I confirm whether my truck is an LBZ or LMM Duramax?
A7: Confirm LBZ or LMM fitment by checking your truck's model year, VIN information, engine code, and product-page notes. The SPETUNER product page lists 2006-2007 LBZ applications with VIN code 2 or D and 2007.5-2010 LMM applications with VIN code 6. Because model-year transitions, swaps, and previous modifications can create confusion, compare the 8th VIN character and engine layout before purchasing a Y-bridge or cold side pipe kit.
Q8: Does a Duramax Y Bridge Upgrade add horsepower?
A8: A Duramax Y Bridge Upgrade should not be treated as a guaranteed horsepower upgrade by itself. Its main value is usually improving charge-air sealing, reducing weak connection points, and supporting a smoother intake-side airflow path when factory components are leaking, restrictive, or unreliable. On a stock truck, the benefit may be more about reliability and consistency than peak power. Tuned trucks, towing setups, or higher-load applications may notice the sealing and airflow support more clearly.
Q9: Do I need tuning for a Duramax Y Bridge Upgrade?
A9: Tuning needs depend on the specific Y-bridge kit, truck setup, emissions layout, intake configuration, turbo setup, and current modifications. The referenced SPETUNER product page lists direct OEM-style fitment and no tuning requirement for the stated 2006-2010 LBZ/LMM applications, but modified trucks may need extra checks. If the truck is tuned, has an aftermarket turbo, uses custom intercooler routing, or has emissions-adjacent changes, review the product notes and consult a qualified diesel technician.
Q10: Can a Duramax Y Bridge Upgrade help with towing reliability?
A10: A Duramax Y Bridge Upgrade may help towing reliability when towing exposes weak charge-air connections, boost leaks, boot blow-off, or airflow restriction around the cold side pipe and Y-bridge area. Under heavy load, small sealing problems can become more noticeable because the charge-air system is working harder. The upgrade should still be part of a proper inspection rather than a blind fix. Check the intercooler, hot side pipe, cold side pipe, boots, clamps, and bridge connection first.
Q11: Is professional installation recommended for a Duramax Y Bridge Upgrade?
A11: Professional installation is recommended if the truck is modified, has corrosion, has prior custom work, or if the installer is not familiar with Duramax charge-air and intake-side components. A proper installation should verify boot seating, clamp orientation, pipe clearance, hose routing, sensor connections, and surrounding component clearance before startup. After installation, the charge-air system should be checked for leaks under normal operating conditions. Experienced DIY owners may handle some direct-fit kits, but fitment and sealing still need careful inspection.
Q12: Will a Duramax Y Bridge Upgrade affect emissions equipment?
A12: A Duramax Y Bridge Upgrade may be close to intake and emissions-related components depending on the engine generation, kit design, and truck configuration. Before modifying diesel intake, airflow, or emissions-adjacent parts, check all applicable federal, state, and local regulations. Do not remove, bypass, disable, or impair required emissions controls on vehicles used on public roads unless permitted by law. If a product is labeled for racing, competition, or off-road use only, follow the stated usage restrictions.
