TL;DR:
Cold-side vs. hot-side intercooler pipe selection starts by tracing 2 charge-air paths on a turbo diesel truck. The hot side usually moves compressed air from the turbo outlet to the intercooler inlet, while the cold side moves cooled air from the intercooler outlet to the intake side. Choose the pipe that matches the verified leak, crack, boot blow-off, clamp issue, or routing point. Check 5 details before ordering: year, make, model, engine, and pipe side.
If you are shopping for an intercooler pipe, the first question is simple: do you need the cold side pipe, the hot side pipe, or a complete piping kit? Many diesel truck owners start looking after they see boost leaks, oily residue near couplers, cracked factory piping, loose boots, hissing under throttle, P0299 underboost, or weak towing response. Ordering the wrong side can create 2 problems at once: poor fitment and wasted installation time.
The terms cold-side intercooler pipe and hot side intercooler pipe describe the pipe's position in the charge-air system. The hot side normally runs from the turbocharger outlet to the intercooler inlet. The cold side normally runs from the intercooler outlet toward the intake side of the engine. These 2 pipes are part of the same airflow path, but they are not interchangeable.
This guide explains the difference between hot-side and cold-side intercooler pipes, how to inspect the side that failed, what symptoms to watch for, when a complete piping kit may make more sense, and how to choose the right pipe side for your truck.
Which Intercooler Pipe Should You Buy?
If you already know where the leak or damaged part is located, choose the pipe that matches that side of the charge-air path. If you only know the symptom, inspect first. The same low-boost complaint can come from a hot-side boot, cold-side pipe, intercooler tank, clamp, sensor issue, turbocharger issue, or another engine system.
| Your Situation | Best First Choice | Why It Fits |
|---|---|---|
| Leak, oil residue, or loose boot near the turbo outlet | Hot side intercooler pipe or hot-side boot kit | This is the turbo-to-intercooler section, so turbo outlet fitment, heat resistance, boot condition, and clamp quality matter most. |
| Crack, split, or boot movement near the intake side | Cold-side intercooler pipe or cold-side boot kit | This is the intercooler-to-intake section, where factory plastic or composite parts can become a durability concern on some applications. |
| Several boots are oily, swollen, slipping, cracked, or aging | Complete intercooler piping kit | A matched kit refreshes both sides and reduces the chance of fixing 1 weak point while another one fails soon after. |
| Intercooler core is bent, cracked, corroded, leaking, restricted, or inefficient | Inspect the full intercooler system before buying only pipes | Piping upgrades help seal the charge-air path, but they do not repair a damaged intercooler core. |
Buying tip: if you already know your truck's year, make, model, engine, and failed pipe side, start by checking the SPETUNER intercooler pipe collection by vehicle fitment for included boots, clamps, adapters, and pipe location.
Hot Side vs Cold Side Intercooler Pipe: Airflow Path
A basic turbo diesel charge-air path has 6 checkpoints: turbocharger outlet, hot side pipe, intercooler inlet, intercooler outlet, cold side pipe, and intake-side connection. The hot side carries compressed air before the intercooler removes heat. The cold side carries charge air after it exits the intercooler.
| Airflow Step | Component | What to Check |
|---|---|---|
| 1 | Turbocharger outlet | Outlet style, clamp seat, oil residue, and nearby heat exposure |
| 2 | Hot side intercooler pipe | Pipe bends, heat-stressed boots, rubbing marks, and loose clamps |
| 3 | Intercooler inlet | Boot alignment, clamp tension, and signs of pressurized air escaping |
| 4 | Intercooler outlet | Cold-side boot condition, oil film, and outlet connection size |
| 5 | Cold side intercooler pipe | Cracks, splits, boot movement, sensor or bracket clearance, and pipe material |
| 6 | Intake-side connection | Coupler fit, clamp position, throttle-body or intake connection, and clearance |
Cold Side vs Hot Side Intercooler Pipe: Quick Comparison
| Feature | Hot Side Intercooler Pipe | Cold Side Intercooler Pipe |
|---|---|---|
| Air path step | After the turbocharger outlet and before the intercooler | After the intercooler outlet and before the intake side |
| Typical location | Between the turbocharger outlet and intercooler inlet | Between the intercooler outlet and the intake side of engine |
| Air temperature | Hotter compressed air before cooling | Cooled charge air after the intercooler |
| Common search terms | Hot side intercooler pipe, turbo to intercooler pipe, hot side charge pipe | Cold side intercooler pipe, CAC pipe, cold side charge pipe |
| Common failure points | Heat-stressed boots, loose clamps, leaks near turbo outlet or intercooler inlet | Cracked factory pipe sections, boot blow-off, oily residue near couplers, weak intake-side connection |
| Buying focus | Turbo outlet routing, intercooler inlet connection, heat resistance, boot quality | Intercooler outlet routing, intake connection, coupler fitment, pipe durability |
What Does an Intercooler Pipe Do?
An intercooler pipe moves compressed air through a turbocharged engine's charge-air system. A basic turbo path has 3 main areas to inspect: turbocharger outlet, intercooler, and intake-side connection. Depending on the platform, these parts may also be called charge pipes, CAC pipes, boost tubes, turbo pipes, or intercooler piping.
When a pipe, boot, clamp, or connection point leaks, the engine may not receive the expected amount of pressurized air. Common signs include low boost, hissing under throttle, reduced acceleration, poor towing response, black smoke under load, or an underboost-related trouble code. Those symptoms can also come from turbocharger, intake, exhaust, fuel, or sensor issues, so inspect the truck before ordering parts.
What Is the Hot Side Intercooler Pipe?
The hot side intercooler pipe is usually located between the turbocharger and the intercooler. It carries compressed air after it leaves the turbocharger but before it passes through the intercooler. Because this air has just been compressed, this side often sees more heat, pressure change, engine movement, and vibration.
Truck owners may search for terms like turbo to intercooler pipe, hot side charge pipe, hot side boost tube, or hot side CAC pipe when this part is leaking or damaged. On many diesel trucks, the hot side pipe uses side-specific bends, boots, clamps, brackets, or mounting details. A difference of 1 model year can matter on some platforms, so check the product page carefully.
Hot Side Pipe Buying Notes
- Confirm the turbo outlet connection style before buying.
- Check the intercooler inlet diameter and routing.
- Inspect boot condition for swelling, cracking, hardening, oil saturation, or heat damage.
- Look for rubbing against nearby brackets, fan shrouds, wiring, or engine bay components.
- Check whether multi-layer silicone boots, adapters, and quality clamps are included.
- Do not assume a hot side pipe fits the cold-side location.
What Is the Cold Side Intercooler Pipe?
The cold-side intercooler pipe is usually located after the intercooler. It carries cooled compressed air from the intercooler outlet toward the intake side of the engine. In diesel truck discussions, this pipe may also be called a cold-side charge pipe, intake-side intercooler pipe, CAC pipe, or boost pipe.
Cold side pipes are a common upgrade because some factory designs use plastic or composite sections that can become brittle over time. Heat cycles, vibration, towing load, and higher boost pressure can stress the pipe or couplers. A cold side intercooler pipe upgrade made from aluminum, stainless steel, or reinforced construction can improve durability when the kit matches the exact vehicle.
Cold Side Pipe Buying Notes
- Confirm the intercooler outlet connection.
- Check the intake-side connection point.
- Verify model year, engine platform, and pipe routing.
- Inspect whether the pipe includes oil-resistant boots, adapters, and quality clamps.
- Look for fresh, heavy, or wet oil residue around pipe ends, which can point to a weak seal or deteriorated boot.
- Review clearance near intake parts, fan shrouds, wiring, brackets, and other engine bay components.
3-Minute Boost Leak Self-Check
Before buying a hot-side or cold-side intercooler pipe, run a quick visual and drivability check. This is only a screening check, not a full diagnostic test.
The goal is to decide whether the charge-air piping, boots, or clamps deserve closer inspection before you order parts.
- Listen for a hiss, whistle, or whoosh when the turbo builds boost.
- Check whether the truck feels weak while towing, climbing, or accelerating hard.
- Look for black smoke under load, especially if the truck also feels low on air.
- Look for oil residue around intercooler boots, couplers, pipe beads, and clamp areas.
- Check for a P0299 underboost code, lower-than-normal boost gauge reading, or inconsistent boost.
- Inspect whether any boot has slipped, ballooned, split, hardened, or popped off recently.
If 2 or more of these signs are present, inspect the complete charge-air path from turbo outlet to intake connection. Many expensive turbo or intercooler guesses start with a smaller pipe, boot, or clamp leak.
How to Tell Which Side You Need
The most reliable way to choose between hot side and cold side is to inspect the truck and identify the exact leak, crack, or failed connection. Do not buy from 1 symptom alone. Low boost, hissing, black smoke, and poor acceleration can come from either side of the intercooler system or from another engine system.
- Start at the turbocharger outlet and inspect the hot side pipe, boot, and clamp for cracks, oil residue, loose fitment, or rubbing.
- Move to the intercooler inlet and outlet. These 2 connection points often show residue when a boot or clamp is not sealing well.
- Follow the cold side pipe from the intercooler outlet to the intake-side connection and check for cracks, splits, and boot movement.
- If the failure point is still unclear, use a pressure test or smoke test according to the service information for your truck.
For a broader fitment workflow, use this diesel truck intercooler pipe selection guide to compare pipe side, routing, boots, clamps, and vehicle details before narrowing the repair area.
| What You See | Likely Area to Inspect | Buying Direction |
|---|---|---|
| Leak near turbo outlet | Hot side pipe or boot | Check hot side intercooler pipe fitment |
| Leak near intercooler inlet | Hot side connection | Inspect hot side pipe, boot, and clamp |
| Leak near intercooler outlet | Cold side connection | Check cold side pipe and boot fitment |
| Crack or split on intake-side pipe | Often cold side pipe | Choose the correct cold-side intercooler pipe upgrade |
| Multiple worn boots, oily couplers, and loose clamps | Entire charge-air piping system | Consider a complete intercooler piping kit |
Common Symptoms of a Bad Hot Side or Cold Side Pipe
Both sides can create similar drivability symptoms because both are part of the boost system. Ford's 6.7L charge-air cooler outlet tube information lists reduced acceleration, hissing on acceleration, and a check engine light as signs that the intercooler piping may need repair. That gives you 3 warning signs to take seriously, but the repair choice still depends on finding the actual leak.
| Symptom | Could Be Hot Side? | Could Be Cold Side? | What to Do |
|---|---|---|---|
| Low boost or power loss | Yes | Yes | Inspect all pipes, boots, and clamps before ordering |
| P0299 underboost code or low boost gauge reading | Yes | Yes | Pressure test the charge-air system and inspect pipe seals |
| Hissing or whistling under throttle | Yes | Yes | Look for air leak points and torn boots |
| Black smoke under acceleration | Possible | Possible | Check for lost charge air, but do not treat black smoke as proof by itself |
| Oily residue around the coupler | Possible | Possible | Check boot condition, clamp tension, and coupler seating |
| Pipe or boot pops off under load | Possible | Possible | Inspect bead roll, boot alignment, clamp type, and pipe fitment |
| Visible crack near intake side | Less likely | More likely | Confirm cold side pipe fitment and inspect related boots |
Visual Inspection vs Pressure Test
A quick visual inspection is useful, but some leaks only appear under pressure. If the truck has repeated underboost symptoms and no visible crack, a pressure test or smoke test can help confirm the leak before replacing parts.
| Method | Best For | Limitation |
|---|---|---|
| Visual inspection | Finding cracked pipes, slipped boots, oil residue, loose clamps, and rubbing marks | May miss leaks that only open under boost |
| Pressure test | Confirming small charge-air leaks before replacing parts | Requires proper tools, safe pressure limits, and service information |
| Smoke test | Finding hidden leaks around couplers, intercooler tanks, and pipe joints | May not fully repeat high-boost driving load |
Should You Replace One Pipe or Buy a Full Intercooler Piping Kit?
If 1 pipe is clearly damaged and the rest of the system is in good condition, replacing one side may be enough. If your truck has worn boots, aging clamps, oil-soaked couplers, repeated boost leaks, or several aging charge-air parts, a full intercooler piping kit may be the better direction.
A complete kit can help because the pipes, silicone boots, and clamps are designed to work together. Still, the right choice depends on 3 details: your truck's condition, product compatibility, and the exact parts included in the kit.
| Option | Best When | Important Reminder |
|---|---|---|
| Replace hot side only | The leak or damage is clearly on the turbo-to-intercooler side | Confirm turbo outlet and intercooler inlet fitment |
| Replace cold side only | The factory pipe is cracked or the intake-side coupler area is failing | Confirm intercooler outlet and intake-side connection |
| Buy a full piping kit | Multiple boots are oil-soaked, clamps are slipping, or the whole charge-air system needs refresh | Check exactly which pipes, boots, clamps, adapters, and hardware are included |
Vehicle Platform Quick Guide
Power Stroke, Duramax, and Cummins trucks can use different pipe routing, boot sizes, coupler styles, and connection points across model years.
Use the table below as a starting point, then confirm fitment on the product page before ordering.
| Platform | Common Search Intent | What to Confirm Before Buying | Common Weak Area to Inspect |
|---|---|---|---|
| 6.7 Power Stroke | Cold side pipe, CAC pipe, hot side pipe, intercooler pipe kit | Model year, pipe side, throttle-body or intake connection, included boots and clamps | Cold-side pipe or coupler area on some applications |
| 6.6 Duramax | LML intercooler pipe, L5P charge pipe, hot side pipe, cold side pipe | Engine generation, routing, boot diameter, sensor or bracket provisions | Generation-specific connection points and boot sizing |
| 5.9 or 6.7 Cummins | Boost tubes, intercooler pipe kit, charge pipe, boots and clamps | Year range, engine, cab configuration, intake horn setup, and included hardware | Boots, clamps, and aftermarket intake clearance |

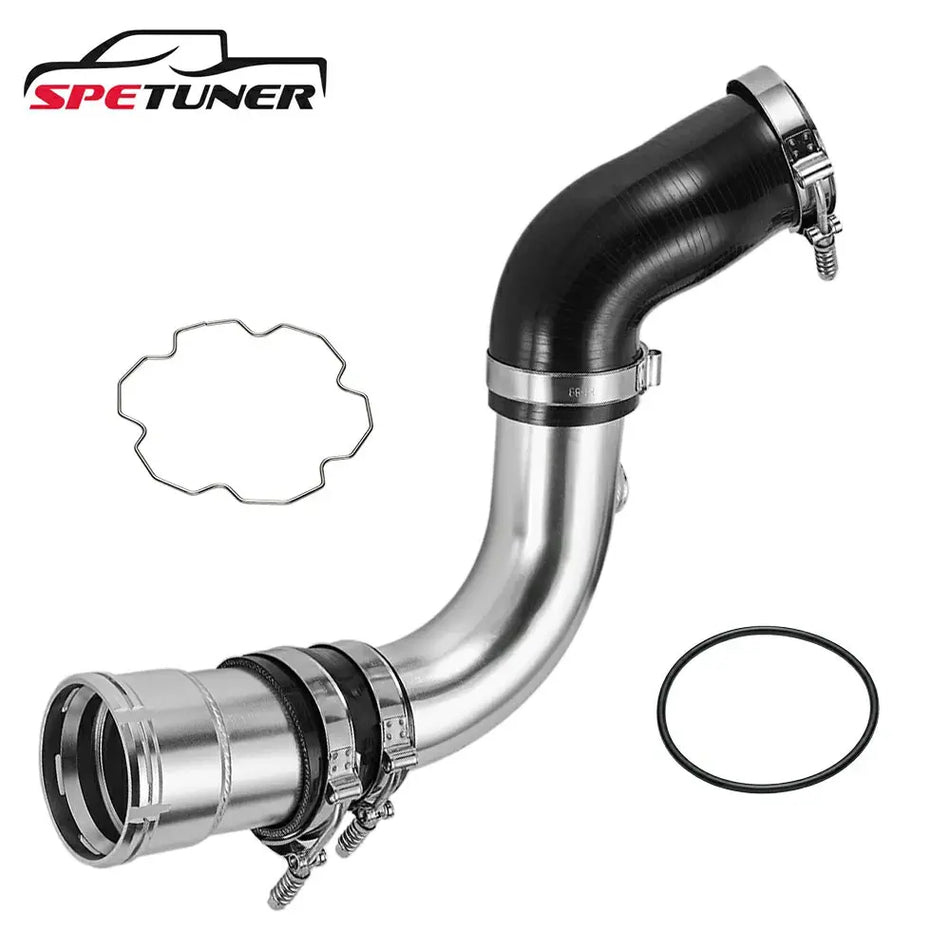

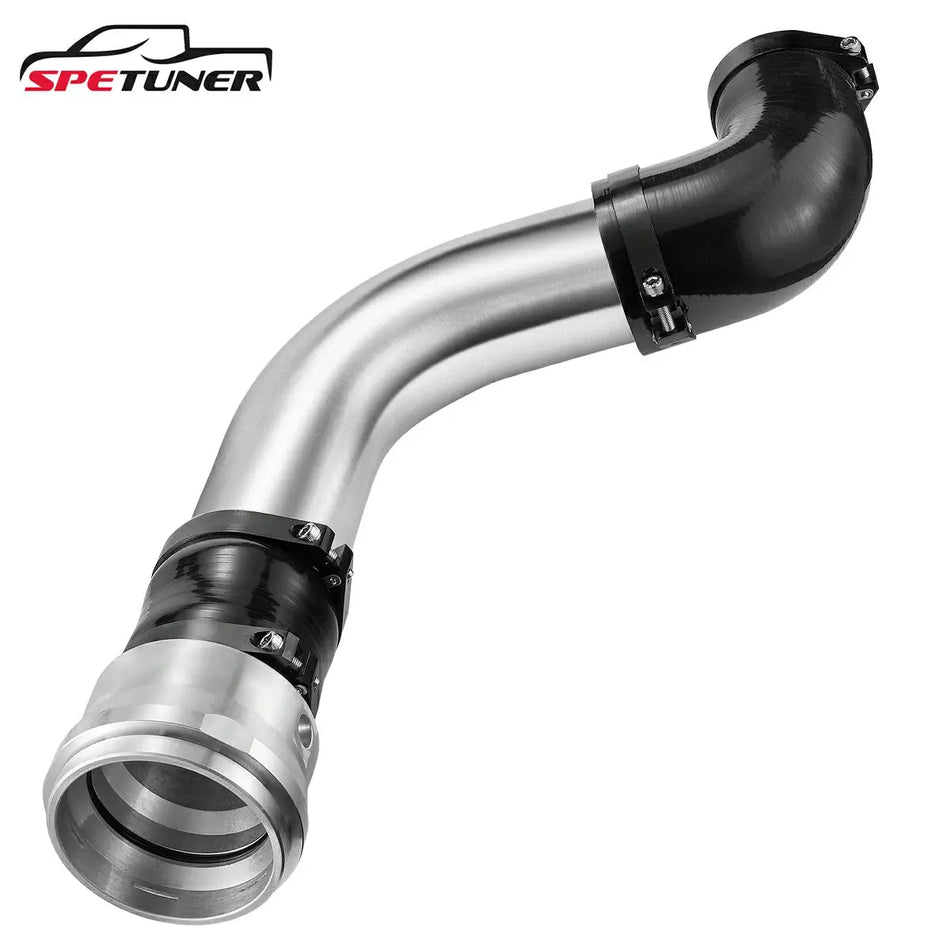

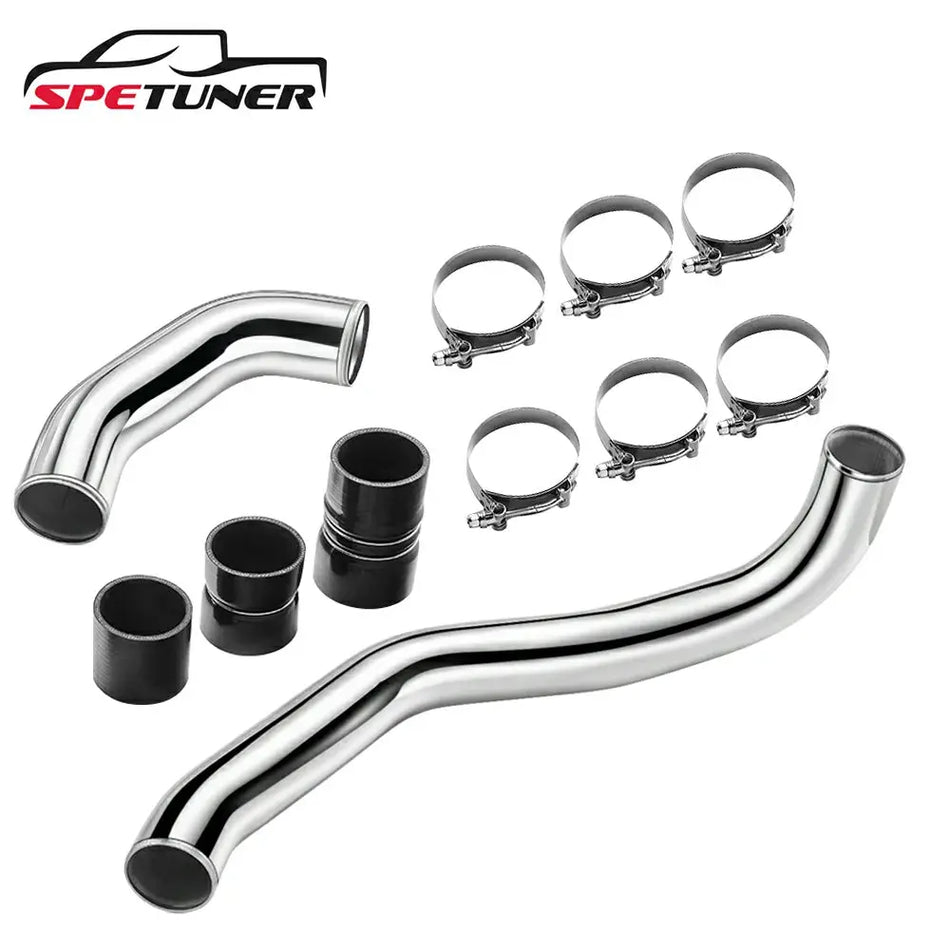

6.7 Power Stroke Cold Side and Hot Side Pipes
Many Ford diesel owners search for 6.7 Powerstroke cold side intercooler pipe, 6.7 Powerstroke hot side intercooler pipe, and 6.7 Powerstroke CAC pipe. Ford lists a 6.7L charge-air cooler outlet tube for 2023-2026 Super Duty applications, which shows why model year and engine fitment matter. A part that fits a 1-year range should not be assumed to fit every 6.7 Power Stroke truck.
Before ordering, confirm your exact model year, engine, pipe side, connection style, and product fitment notes. A cold side pipe and hot side pipe are not interchangeable, even though they are both part of the same charge-air system.
Duramax Hot Side and Cold Side Pipes
Duramax owners should confirm engine generation before buying. LB7, LLY, LBZ, LMM, LML, and L5P layouts can vary across 6 common Duramax generation names. A pipe that fits 1 Duramax generation should not be assumed to fit another because routing, brackets, intake-side connections, sensor provisions, and engine bay clearance can differ.
Check whether the product is designed for the hot side, cold side, or a full piping kit. Also verify boot diameter, clamp style, routing, sensor or bracket provisions, and clearance notes.
Cummins Boost Tubes and Intercooler Pipes
Cummins owners may search for 6.7 Cummins boost tubes, 5.9 Cummins intercooler pipe, or hot side and cold side piping. The engine name alone is not enough to confirm fitment because Cummins trucks span many model years, body configurations, and aftermarket intake manifold setups.
On some Cummins applications, the boots and clamps may be the weak point even when the factory pipe is still usable. Review the product page for year range, model, engine, pipe location, boot size, clamp style, and included hardware before purchase.
Pipe Material, Boots, and Clamps
The pipe side matters, but the sealing hardware matters just as much. A stronger tube will not solve a boost leak if the boot is oil-soaked, the clamp is weak, or the pipe end does not hold the boot correctly under pressure.
| Part Detail | What to Check | Why It Matters |
|---|---|---|
| Pipe material | Aluminum, stainless steel, aluminized steel, reinforced silicone, plastic, or composite construction | Material affects heat tolerance, durability, corrosion resistance, and failure risk on aging factory parts. |
| Pipe end design | Bead roll, raised lip, quick-connect detail, or factory-style adapter | The boot or coupler needs a positive sealing surface so it does not slide off under boost. |
| Boot quality | Correct diameter, oil resistance, layer count, flexibility, and condition | A swollen, hardened, cracked, or oil-softened boot can leak even when the pipe itself is new. |
| Clamp style | T-bolt, liner-style, constant-tension, V-band, or platform-specific clamp | The clamp must apply even pressure without cutting, deforming, or misaligning the boot. |
| Routing and clearance | Fan shroud, wiring, brackets, intake hardware, intercooler ports, and turbo outlet clearance | Poor alignment can twist the boots and create repeat leaks after the first heat cycle. |
Direct-Fit vs Universal Pipes
For most diesel truck owners, a direct-fit pipe is the safer choice. A direct-fit pipe uses application-specific bends and connection points, which can reduce routing problems and clearance issues. Universal pipes may require cutting, welding, fabrication, coupler matching, and extra leak checks after installation.
| Pipe Type | Main Advantage | Main Risk |
|---|---|---|
| Direct-fit pipe | Designed for a specific platform, engine, side, or year range | Still requires exact fitment confirmation |
| Universal pipe | Can support custom fabrication | May need cutting, welding, custom couplers, and repeated leak checks |
Will a Hot Side or Cold Side Pipe Add Horsepower?
An intercooler pipe upgrade is mainly a reliability and sealing upgrade. If the factory pipe, boot, or clamp is leaking, replacing it can help restore lost boost, improve drivability, and support more consistent airflow under load. On a healthy stock truck, a pipe upgrade by itself should not be treated as a guaranteed horsepower increase.
Power gains depend on the full setup, including turbocharger condition, tuning, fueling, intercooler efficiency, exhaust restriction, intake layout, and supporting modifications. A well-built pipe kit is best understood as a way to strengthen the charge-air path and reduce failure points, not as a standalone power adder.
Buying Checklist Before Ordering
- Confirm your truck's year, make, model, and engine.
- Identify whether the failed part is on the hot side or cold side.
- Check whether the product fits your exact engine platform and model year.
- Review at least 3 product photos and compare pipe routing.
- Check whether silicone boots, clamps, adapters, or hardware are included.
- Inspect existing boots for swelling, cracks, oil saturation, or looseness.
- Check the pipe bead, raised lip, quick-connect area, or adapter style where the boot seals.
- Confirm pipe diameter and coupler connection size where applicable.
- Review installation notes before starting the job.
- Plan to recheck clamp position after the first drive or heat cycle.
- Check for exceptions such as cab and chassis models, aftermarket turbos, aftermarket intercoolers, or modified intake setups.
- Avoid assuming universal fitment across different diesel platforms.
Common Buying Mistakes
- Ordering the wrong side: a hot side pipe will not replace a cold side pipe.
- Buying by keyword only: charge pipe, CAC pipe, and boost tube can mean different things by platform.
- Ignoring worn, oil-soaked boots: a new pipe cannot seal correctly if the boot is softened or cracked.
- Reusing weak clamps: poor clamping force can cause the pipe to leak or pop off under boost.
- Assuming every pipe fits every engine year: diesel platforms can change across model years.
- Expecting guaranteed power gains: an intercooler pipe upgrade supports airflow reliability, but final power depends on tune, turbo, fueling, and supporting parts.
- Skipping leak diagnosis: low boost can come from many systems, so confirm the failure point first.
Fitment and Installation Notes
Fitment is not interchangeable between hot side and cold side pipes. Always verify your exact truck application before ordering. Pipe routing, boot size, clamp style, turbo outlet connection, intercooler connection, and intake-side layout can vary by engine platform and model year.
- Compare the new pipe against the old pipe before installation and confirm the side, bends, and connection points match.
- Seat each boot evenly on the pipe bead and mating connection before tightening the clamp.
- Clean oil film and old residue from the pipe ends and inside of the boots before assembly.
- Align the full pipe path before final tightening so the boots are not twisted or stretched.
- Position each clamp squarely behind the bead or raised sealing lip, not on the edge of the boot.
- Tighten clamps according to the product instructions or the vehicle service information.
- After installation, inspect the system during normal driving and recheck for boost leaks, rubbing, or boot movement.
Compliance Note
An intercooler pipe is generally a charge-air system component, not an emissions-delete part. Still, diesel performance parts are sometimes installed with other modifications. Follow all federal, state, and local rules. Do not remove, disable, bypass, or impair required emissions equipment on vehicles used on public roads unless the modification is clearly allowed by law.
Shop SPETUNER Intercooler Pipe Upgrades
Find hot side pipes, cold side pipes, charge pipes, boost tubes, boots, clamps, and full intercooler piping kits. Confirm vehicle-specific fitment before ordering so the pipe side, routing, and included hardware match your truck.
References
- Garrett Motion: "How a Turbo Works - Basic Guide." Available from Garrett Motion Turbo Basic Guide.
- Garrett Motion: "Garrett Performance Intercoolers." Available from Garrett Motion Intercooler Overview.
- Ford Motor Company: "Intercooler Pipe Tube Charge Air Cooler - Outlet 6.7L." Available from Ford Parts Product Information.
- U.S. Environmental Protection Agency: "Aftermarket Defeat Devices and Tampering are Illegal and Undermine Vehicle Emissions Controls Enforcement Alert." Available from EPA Enforcement Alert.
- Electronic Code of Federal Regulations: "40 CFR 1068.101 - What general actions does this regulation prohibit?" Available from eCFR 40 CFR 1068.101.
- California Air Resources Board: "Aftermarket, Performance, and Add-on Parts." Available from CARB Aftermarket Parts Program.
FAQ
Q: What is an intercooler pipe?
A: An intercooler pipe carries compressed air between the turbocharger, intercooler, and intake side of the engine. In a basic turbo system, Garrett identifies the compressor discharge as step 2 and the charge-air cooler as step 3, so the pipe system links these areas to the intake path.
Q: How do I tell which intercooler pipe side has failed?
A: You identify the failed side by finding the exact leak, crack, or loose connection on the truck. Inspect 3 zones in order: turbo outlet to intercooler inlet, intercooler inlet and outlet, and intercooler outlet to intake side. If the leak is not visible, use the test method listed in your service information.
Q: What is the difference between a hot-side and a cold-side intercooler pipe?
A: The hot side pipe carries compressed air before the intercooler, while the cold side pipe carries cooled charge air after the intercooler. That creates 2 pipe locations, 2 routing paths, and often different boot or clamp sizes.
Q: Should I replace one pipe or buy a full intercooler piping kit?
A: Replace 1 pipe when the failure is isolated, but consider a full kit when several boots, clamps, or pipes are worn. The 3 common choices are hot side only, cold side only, or a complete piping kit with matched boots and clamps.
Q: Is replacing an intercooler pipe legal?
A: Replacing an intercooler pipe can be legal when the part does not remove, disable, bypass, or impair emissions equipment, but compliance depends on the exact part and location. Check 2 areas before use on public roads: 40 CFR 1068.101 federal anti-tampering rules and any state requirements such as CARB Executive Order status where applicable.
Lars
Diesel Performance Engineer | 15+ Years Experience
"Empower Your Beast: Run Cooler, Pull Harder, Last Longer."
