Quick Answer:
An L5P Duramax delete requires an unlocked E41 ECM, a supported tuning device, tuning credits, a DPF/CAT delete pipe, EGR delete parts, CAN Bus plugs, and sometimes TCM tuning. Most 2017-2026 L5P builds cost about $2,300 to $4,500+, depending on model year, exhaust size, power goal, and transmission support. A 4-inch muffled pipe is usually better for daily driving and towing, while a 5-inch straight pipe is louder and more race-focused. These parts are only for off-road, race, or competition-use vehicles where allowed by law.
Legal Notice: Emissions delete parts may not be legal for public road use in many areas, including the United States. This guide is for off-road, race, and competition-use vehicles where the law allows these changes. Always check local, state, and federal rules before buying, tuning, or removing any emissions equipment.
Hi, I’m Lars, a diesel performance engineer at SPEtuner. If you own a 2017-2026 L5P Duramax, the first thing to know is simple: this is not a cheap pipe-only job.
The L5P uses a locked E41 ECM. That engine computer must be unlocked, replaced, or otherwise supported before custom tuning can be loaded. You also need the right exhaust parts, EGR parts, electrical plugs, and tuning support for your model year.
Why Is an L5P Delete More Expensive Than Older Duramax Trucks?
Older Duramax trucks were easier to tune because the factory ECM security was less strict. The L5P is different. GM added stronger ECM protection, so a normal low-cost tuner cannot simply flash the truck.
This is why a real L5P Duramax delete setup often costs more than an older LBZ, LMM, or LML setup. You are paying for more than an exhaust pipe. The total package may include an unlocked ECM, a tuning device, tuning credits, a delete pipe, EGR hardware, CAN Bus plugs, and support for the transmission control module. If you are comparing budgets, use an L5P Duramax delete cost guide to check the full parts list instead of judging by pipe price alone.
Before You Buy: Use This Decision Table
Use the table below to match the setup to the way you use the truck. Do not choose a kit by price alone.
| Truck Use | Better Setup | Why It Fits | What to Avoid |
|---|---|---|---|
| Daily driving | Unlocked ECM, mild tune, 4-inch muffled pipe | Keeps noise lower and cost closer to $2,300-$2,600 | A loud 5-inch straight pipe if you drive long highway miles |
| Heavy towing | Full EGR removal, tow tune, TCM tuning | Adds better shift control and supports higher load use | Skipping transmission support on a high-torque tow tune |
| Off-road performance | 5-inch pipe, full EGR removal, SOTF or race tune where supported | Built for sound, flow, and higher power goals | Under-budgeting; these builds often reach $4,000-$4,500+ |
| 2024-2026 truck | Confirm tuning and fitment before ordering | Newer ECM and TCM support can change often | Buying a kit that only lists 2017-2023 fitment |
What Parts Do You Need to Delete an L5P Duramax?
Most L5P delete builds use the same core parts. The exact kit depends on year, cab and bed layout, transmission, tune type, and how the truck is used.
1. Unlocked E41 ECM
The E41 ECM is the engine computer on the L5P Duramax. A stock E41 ECM is locked. It cannot accept normal custom tuning until it is unlocked or replaced with a ready-to-tune ECM.
You normally have two options:
- ECM exchange service: You send in your factory ECM and wait for it to be unlocked or modified.
- Pre-unlocked ECM: You buy an unlocked ECM that is ready for supported tuning.
A pre-unlocked ECM is often easier for owners who want less downtime. An exchange service may cost less, but the truck can be down while the ECM is away. Before choosing either path, review the L5P factory ECM unlock instructions so you know what must be prepared before tuning.
2. Tuning Device and Credits
You need a tuning device to load the tune. Common options include HP Tuners MPVI3 and EZ Lynk, depending on the tuner and support for your truck. You may also need tuning credits to license the ECM and write the tune.
Before buying, confirm the kit includes the correct device support, credits, tune file, and instructions for your exact model year. A 2017 truck and a 2024 truck may not use the same tuning path. If you are choosing hardware first, compare the L5P OBDII flash tuning interface with the tuner requirements for your truck.
3. DPF and CAT Delete Pipe
The DPF and CAT are part of the factory exhaust emissions system. In an off-road or race-use delete setup, these parts are replaced with a straight-through pipe.
- 4-inch pipe with muffler: Better for daily use, towing, and lower cabin drone.
- 5-inch straight pipe: Louder, more aggressive, and better suited to off-road performance builds.
If the truck is used for family driving, long highway trips, or towing, a 4-inch muffled pipe is usually easier to live with. For part-level planning, check the L5P DPF delete race pipe fitment options before choosing exhaust size.
4. CAN Bus Plugs
CAN Bus plugs are small parts, but they are important on the L5P. The truck uses a communication network to link sensors, modules, and control units. If some factory connections are unplugged without the right plugs, the truck may show faults or fail to start.
Important: Do not judge a kit only by the pipe and tuner. A cheap kit that leaves out CAN Bus plugs can create warning lights, no-start issues, and hard-to-find electrical problems.
Before ordering a low-cost bundle, confirm whether it includes the L5P CAN Bus plug kit for 2017-2024 trucks or the correct plugs for your exact model year.
5. EGR Delete Parts
The EGR system sends some exhaust gas back into the intake. On an off-road delete build, owners usually choose either block-off plates or a full EGR removal kit.
- Block-off plates: Lower cost and faster to fit. Good for basic mild builds.
- Full EGR removal kit: More work, but cleaner in the engine bay. Better for towing trucks and long-term builds.
If you tow heavy, work the truck hard, or plan to keep it for years, a full EGR removal kit is usually the better long-term choice. Match the hardware to the L5P EGR valve and cooler delete kit requirements before removing factory parts.
6. CCV Reroute Kit
The factory CCV system can send oily vapor back into the intake. Over time, this can leave oil film inside the turbo inlet, charge pipes, and intake path.
A L5P CCV reroute kit for GM 2017+ trucks is not always required for a basic L5P delete. It is a smart support upgrade if you want to keep oily mist out of the intake path.
7. TCM Tuning
The TCM is the transmission control module. It controls shift timing, shift feel, and line pressure. When torque goes up, the transmission may need better clutch holding control.
For a mild daily tune, TCM tuning may not be required. For towing, high torque, or race tuning, it is strongly recommended. Many 2017-2019 trucks use a 6-speed Allison setup. Many 2020+ trucks use the 10-speed Allison, which can involve a more complex TCM support path.

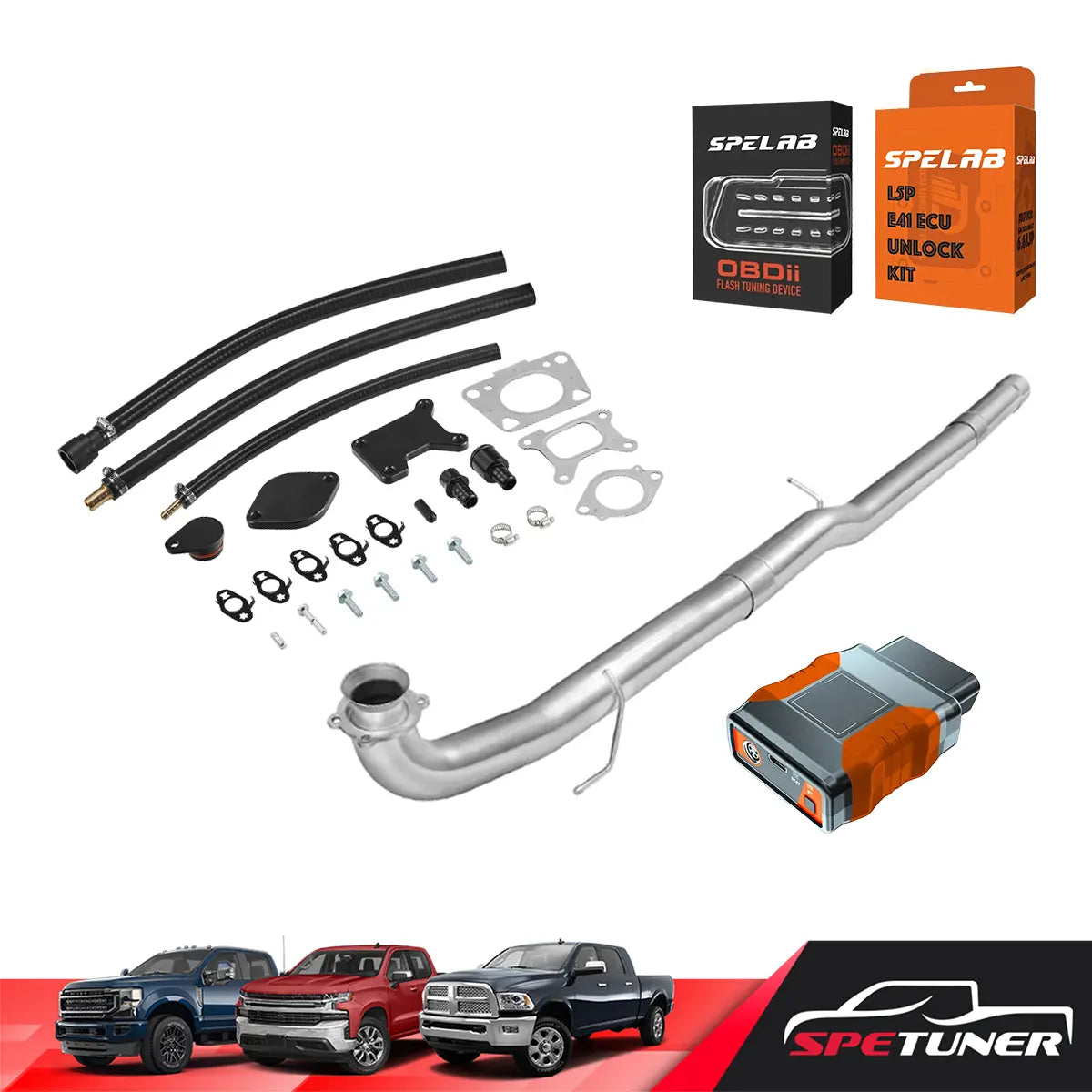

When an All-in-One L5P Delete Kit Makes Sense
An all-in-one L5P delete kit makes sense when you want the main parts matched together instead of buying one part at a time. This is helpful because the ECM, tune, pipe, plugs, and EGR parts must work together.
This kit is built for owners who want a complete L5P Duramax delete setup instead of matching every part by hand. Depending on the option selected, it can include an unlocked E41 ECM, tuning support, credits, delete pipe, CAN Bus plugs, and key install hardware.
How to Delete a L5P Duramax
Deleting an L5P Duramax is not just removing one exhaust part. A proper off-road-use L5P delete usually involves ECM support, tuning, exhaust work, EGR parts, electrical plugs, and final checks. The best order is to confirm tuning first, then install the hardware, then load the correct tune.
Important: This section is only for off-road, race, or competition-use vehicles where emissions changes are allowed by law. Do not remove or disable emissions equipment on a public-road vehicle unless your local, state, and federal rules allow it.
Step 1: Confirm the ECM, tune, and parts before removing anything
Start with the electronic side first. The L5P uses a locked E41 ECM, so the truck needs a supported ECM unlock, ECM exchange, or pre-unlocked ECM before the delete tune can be loaded. Also confirm the tuning device, credits, CAN Bus plugs, exhaust size, EGR parts, and transmission support for your exact model year.
This step matters because a pipe-only install can leave the truck with warning lights, limp mode, no-start problems, or an unusable tune path. For 2020+ trucks and 2024-2026 trucks, confirm TCM and ECM support before ordering or starting the job.
Step 2: Install the DPF/CAT delete pipe and downpipe parts
After the tuning path is confirmed, the exhaust system is usually the next major job. On an off-road L5P delete setup, the factory DPF/CAT section is replaced with the correct delete pipe. Some builds also include a downpipe upgrade, depending on the kit and power goal.
A 4-inch muffled pipe is usually better for daily driving and towing because it keeps the truck quieter. A 5-inch straight pipe is louder and better suited to off-road performance builds. Make sure the pipe matches the cab, bed length, hanger location, and model year before installation.
Related installation guide: Step-by-step L5P 6.6 Duramax 4-inch DPF downpipe installation guide.
Step 3: Install the EGR delete parts
The EGR system is the next key area. Some owners use block-off plates for a simpler setup. Others choose a full EGR removal kit for a cleaner engine bay and a better long-term build. For towing trucks or trucks that work hard, full EGR removal is usually the stronger choice.
During this part of the job, keep track of coolant lines, clamps, brackets, sensors, and factory hardware. Do not force parts into place. A poor EGR install can lead to coolant leaks, exhaust leaks, loose brackets, or hard-to-find fitment issues later.
Related installation guide: Detailed EGR delete installation guide for Duramax L5P owners.
Step 4: Add the CCV reroute kit if the build needs intake protection
A CCV reroute kit is not always required for a basic L5P delete, but it is a smart support upgrade. The factory CCV system can send oily vapor back into the intake path. Over time, that oil mist can leave residue in the turbo inlet, charge pipes, intercooler system, and intake tract.
If the truck tows, runs long highway miles, or is being built for long-term use, a CCV reroute kit can help keep the intake path cleaner. It is best to install it while other engine-bay parts are already being removed.
Related installation guide: How to install an L5P CCV reroute delete kit.
Step 5: Install CAN Bus plugs and check all electrical connections
CAN Bus plugs are small, but they are important on the L5P. The truck depends on module communication. If the wrong connector is left open, the truck may show warning lights, store communication codes, or fail to start.
Before loading the tune, check every connector, sensor lead, plug, ground, battery cable, and harness clip. This is one of the easiest places to make a mistake, especially on a rushed install.
Step 6: Load the correct tune and complete final checks
Once the hardware is installed, load the correct tune for the ECM, exhaust setup, EGR setup, and transmission support. Do not use a tune file that does not match the truck. A 2017 truck, a 2020+ truck, and a 2024+ truck may need different support.
After the tune is loaded, check for leaks, loose clamps, rubbing exhaust sections, coolant level, battery voltage, and stored codes. Let the truck reach operating temperature, then recheck the exhaust clamps, coolant fittings, and engine-bay hardware after the first heat cycle.
Simple L5P Delete Install Order
| Order | What to Do | Why It Matters |
|---|---|---|
| 1 | Confirm ECM unlock, tuning device, credits, and tune support | The truck must be tunable before emissions hardware is removed |
| 2 | Install the DPF/CAT delete pipe and downpipe parts | This replaces the main factory exhaust restriction in an off-road setup |
| 3 | Install the EGR delete parts | This completes the main engine-side emissions hardware change |
| 4 | Install the CCV reroute kit if used | This helps reduce oily vapor in the intake path |
| 5 | Install CAN Bus plugs and check connectors | This helps avoid warning lights, communication faults, and no-start issues |
| 6 | Load the tune and complete leak/code checks | The tune must match the hardware, ECM, model year, and transmission setup |
Do not skip diagnosis: If the truck already has limp mode, fuel pressure codes, turbo faults, coolant loss, wiring damage, or weak battery voltage, fix those problems first. A delete kit will not repair a bad sensor, weak electrical system, leaking coolant line, or mechanical failure.
Which L5P Delete Setup Should You Choose?
Option 1: Daily Driver Setup
Best for: commuting, light hauling, family use, and owners who want a quieter off-road-use setup.
- ECM: Pre-unlocked E41 ECM
- Tune: Stock power or mild economy tune
- Exhaust: 4-inch pipe with muffler
- EGR: Block-off plates
- TCM tuning: Usually not required
- Estimated budget: $2,300-$2,600
- Install level: Medium
This is the better choice if you want a simple setup with less noise and less highway drone. It is also the setup most owners should compare against an L5P delete versus emissions-intact guide before changing emissions hardware.
Option 2: Heavy Hauler Setup
Best for: towing a fifth wheel, horse trailer, equipment trailer, or heavy work load.
- ECM: Pre-unlocked E41 ECM
- Tune: Tow tune
- Exhaust: 4-inch pipe with muffler
- EGR: Full EGR removal kit
- TCM tuning: Recommended or required for higher torque
- Estimated budget: $3,200-$3,800
- Install level: Hard
This setup is built for better towing control and safer transmission behavior when torque is increased. It costs more, but it is usually the smarter choice for a work truck.
Option 3: Street or Race Setup
Best for: off-road performance, louder sound, higher horsepower goals, and owners who accept more noise.
- ECM: Pre-unlocked E41 ECM
- Tune: SOTF or race tune where supported
- Exhaust: 5-inch straight pipe
- EGR: Full EGR removal kit
- Fuel system: Lift pump recommended for bigger power
- TCM tuning: Strongly recommended
- Estimated budget: $4,000-$4,500+
- Install level: Hard
This setup is not for every owner. It is louder, costs more, and may need more supporting parts.
L5P Delete Build Comparison
| Feature | Daily Driver | Heavy Hauler | Street/Race |
|---|---|---|---|
| Main goal | Simple and quiet | Towing support | Power and sound |
| Exhaust | 4-inch with muffler | 4-inch with muffler | 5-inch straight pipe |
| EGR setup | Block-off plates | Full removal | Full removal |
| TCM tuning | Usually no | Yes | Yes |
| Typical budget | $2,300-$2,600 | $3,200-$3,800 | $4,000-$4,500+ |
| Best fit | Quiet daily use | Heavy towing | Off-road performance |
Fitment Checks Before Ordering
Always check fitment before you order. L5P delete parts can change by model year, cab style, bed length, emissions layout, and transmission setup.
- Confirm the truck is a 2017-2026 GM 6.6L L5P Duramax, not an older LML or another engine code.
- Check whether the truck uses the 6-speed Allison or the 10-speed Allison.
- Confirm the cab and bed layout, because exhaust length and hanger position can change.
- Ask whether the kit includes the correct CAN Bus plugs for your model year.
- For 2024, 2025, and 2026 trucks, confirm current ECM and TCM tuning support before buying.
Fitment Notes by Model Year
- 2017-2019 L5P: Often simpler than newer trucks because many use the 6-speed Allison setup.
- 2020-2023 L5P: More complex because many trucks use the 10-speed Allison and newer TCM control.
- 2024-2026 L5P: Support may vary by ECM, TCM, and tuning availability. Contact the seller before ordering.
Common Mistakes to Avoid
Buying Only the Pipe
A pipe alone is not enough for most L5P trucks. You still need the ECM solution, tune, credits, electrical plugs, and the right support parts.
Ignoring CAN Bus Plugs
Missing plugs can cause warning lights, communication faults, or no-start problems. Make sure the plugs are part of the kit before you buy.
Choosing a 5-Inch Straight Pipe for a Daily Driver
A 5-inch straight pipe is loud. It can drone on the highway. For most daily drivers, a 4-inch pipe with a muffler is easier to live with.
Skipping TCM Tuning on a Tow Build
If you tow heavy, the transmission needs support when torque increases. TCM tuning can help improve shift control and clutch holding force.
Not Checking 2024+ Tuning Support
Newer trucks can have extra tuning limits. Contact the seller before buying parts for a 2024, 2025, or 2026 L5P.
When Not to Buy an L5P Delete Kit Yet
Do not buy a delete kit just because the truck has a check engine light, limp mode, or a poor-running condition. A delete kit will not fix every problem.
Inspect the truck first if you have fuel pressure faults, turbocharger issues, wiring damage, coolant loss, low battery voltage, or unknown ECM communication codes. Fix mechanical and electrical problems before tuning the truck. If the truck is in regen trouble, diagnose it with an L5P Duramax regen troubleshooting guide before assuming a delete kit is the correct fix.
What Should You Buy to Delete Duramax L5P?
If you use the truck as a normal daily driver, choose a mild setup with an unlocked ECM, a quiet 4-inch exhaust, block-off plates, and the correct plugs.
If you tow heavy, spend more on full EGR removal and TCM tuning. That is usually the safer long-term choice for a work truck.
If you want an off-road race-style build, plan for a higher budget. You may need SOTF tuning, a 5-inch pipe, a lift pump, and transmission support. The best kit is not always the most expensive kit. The best kit is the one that matches how you use your truck and what your local law allows.
Shop L5P Duramax Parts by Fitment
If you are comparing L5P parts, start with the correct model year and truck configuration. The L5P Duramax collection helps you compare off-road-use delete kits, EGR parts, exhaust options, tuning interfaces, and support upgrades by 2017+ truck fitment.
References
- U.S. Environmental Protection Agency: "EPA Tampering Policy: The EPA Enforcement Policy on Vehicle and Engine Tampering and Aftermarket Defeat Devices under the Clean Air Act." Available from EPA.
- HP Tuners: "GM E41 ECM Services (L5P)." Available from HP Tuners.
- HP Tuners: "Emissions Compliance." Available from HP Tuners Emissions Compliance.
- Chevrolet: "Manuals and Guides." Available from Chevrolet Support.
FAQ
Q1: What do I need to delete an L5P Duramax?
A1: You usually need an unlocked E41 ECM, a tuning device, tuning credits, a DPF/CAT delete pipe, EGR delete parts, CAN Bus plugs, and sometimes TCM tuning. The ECM is the key part because the factory E41 ECM is locked. The other parts must match your model year, exhaust layout, and tune type. These parts are only for off-road, race, or competition-use vehicles where allowed by law.
Q2: Why does an L5P delete kit cost more than older Duramax delete kits?
A2: An L5P delete kit costs more because the L5P uses a locked E41 ECM and newer control systems. Older trucks were often easier to flash, but the L5P may need an ECM unlock, tuning credits, a supported tuning device, and extra electrical parts. A basic setup often starts around $2,300, while towing or race-style builds can reach $4,500 or more.
Q3: Do I need an unlocked ECM for every L5P delete setup?
A3: In most cases, yes. The L5P E41 ECM must be unlocked or replaced before supported custom tuning can be loaded. Without the correct ECM solution, the truck may not accept the tune needed for an off-road delete setup. Always confirm whether the kit includes a pre-unlocked ECM, an exchange service, or another supported unlock path for your exact model year.
Q4: Are CAN Bus plugs required on an L5P Duramax?
A4: CAN Bus plugs are strongly recommended because the L5P uses a sensitive communication network. If factory sensors or modules are unplugged without the right plugs, the truck may show warning lights, store communication faults, or fail to start. Before buying, check that the kit includes plugs for your model year and emissions layout. Missing plugs can make a cheap kit expensive later.
Q5: Should I choose a 4-inch or 5-inch exhaust for an L5P delete?
A5: Choose a 4-inch pipe with a muffler if the truck is used for daily driving, towing, or long highway trips. It is usually quieter and has less drone. Choose a 5-inch straight pipe only if you want a louder off-road performance setup and accept more cabin noise. The better choice depends on how the truck is used, not only on pipe size.
Q6: Is TCM tuning required after deleting an L5P Duramax?
A6: TCM tuning is not always required for a mild daily setup, but it is a smart choice for towing or higher torque. The TCM controls shift timing and line pressure, so extra torque can stress the transmission if shift control is not matched to the tune. It is especially important to ask about TCM support on 2020+ trucks with the 10-speed Allison.
Q7: Can an L5P delete kit fix limp mode or a check engine light?
A7: It may help only if the problem is caused by emissions-system faults and the truck is used legally off road. It will not fix every limp mode condition. Wiring damage, weak batteries, fuel pressure faults, turbocharger problems, and mechanical failures must be diagnosed first. If the root cause is unknown, inspect and repair the truck before buying a delete kit or loading any tune.
Q8: What is the best L5P delete setup for towing?
A8: The best towing setup is usually an unlocked E41 ECM, a tow-focused tune, a 4-inch muffled pipe, full EGR removal, correct CAN Bus plugs, and TCM tuning. This setup keeps noise reasonable and gives the transmission better support when torque increases. It normally costs more than a basic daily driver setup, but it is the better match for fifth wheels, equipment trailers, and work loads.
Q9: Do 2024, 2025, and 2026 L5P trucks need special fitment checks?
A9: Yes. Newer L5P trucks can have different ECM, TCM, and tuning support compared with 2017-2023 models. Product pages may not always cover the newest year range. Before ordering for a 2024, 2025, or 2026 truck, confirm the current tuning path, transmission support, exhaust fitment, and included plugs. This helps avoid buying parts that cannot be used on your truck.
Q10: Are L5P Duramax delete kits legal?
A10: L5P Duramax delete kits may not be legal for public road use in many areas. In the United States, removing or defeating emissions equipment can violate federal and state rules. These parts are generally sold for off-road, race, or competition-use vehicles where allowed by law. Check your local rules before buying, and do not use emissions delete parts on public roads unless the law allows it.
Lars
Diesel Performance Engineer | 15+ Years Experience
