EGR Delete Kit for 2006-2007 6.6L Duramax LBZ Installation Guide
(Optimized for SPETUNER Kits with High Flow Intake Elbow)
Disclaimer
- This modification is for off-road use only. Check local emissions regulations before proceeding.
- A tuner is required to disable the check engine light and optimize performance after the modification.
- Use an aftermarket exhaust system for the best results and compatibility.
Tools and Materials Required
Basic Tools
- Ratchet set
- Wrenches (10mm, 12mm)
- Torx screwdriver set
- Pry bars
Specialty Tools
- Grinder and welder (for up pipe modification)
- Handheld torch (to loosen bolts)
- Carburetor cleaner and wire brush (to clean carbon buildup)
SPETUNER Advantages

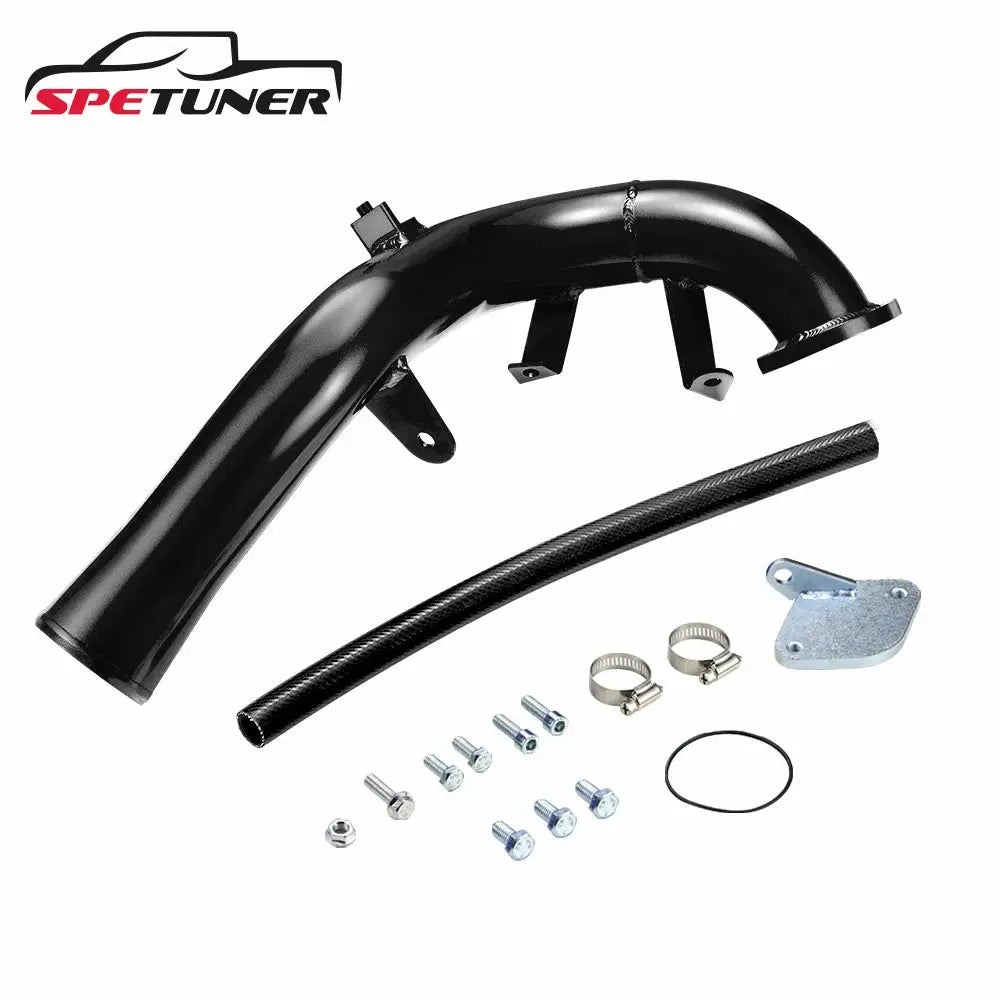

- Custom-fit blocker plates and coolant lines ensure easy installation.
- High Flow Intake Elbow and precision-engineered components designed for optimal performance.
Step-by-Step Installation
Step 1: Preparation
Disconnect Batteries
Remove the negative terminals from both batteries to ensure safety.
Remove Air Intake Pipe
Unbolt and set aside the air intake pipe to clear access to the EGR cooler.
Drain Coolant
Remove the inner fender liner to access the radiator hose.
Disconnect the hose and allow a few liters of coolant to drain into a pan.
Verification: Ensure all coolant flow has stopped before proceeding.
Step 2: Remove the EGR Cooler
Disconnect Wiring
Unplug the coolant level sensor, A/C wiring, and other electrical connections.
Move the harness aside for better access.
Detach PCV Piping
Loosen the 10mm bolts and V-band clamp securing the PCV piping.
Disconnect the pipe from the intake horn and turbo.
Cut Coolant Hoses
Use an Exacto knife to cut the hoses connected to the EGR cooler, as they will be replaced.
Unbolt the EGR Cooler
Remove all bolts securing the cooler.
Pry it loose where it connects to the up pipe.
Lift Out the Cooler
Carefully remove the EGR cooler, noting carbon buildup at the ports.
Verification: Ensure the cooler and all hoses are fully removed before proceeding.
Step 3: Modify or Replace the Up Pipe
Remove Up Pipe
Unbolt the up pipe from the turbo (3 bolts) and exhaust manifold (3 bolts).
Use a torch to loosen stubborn bolts.
Modify the Pipe
Cut off the EGR branch using a grinder.
Weld a solid cap over the opening and apply anti-corrosion paint.
Reinstall the Up Pipe
Use anti-seize on all bolts and secure the modified pipe to the turbo and exhaust manifold.
SPETUNER Alternative: Install a pre-fabricated SPETUNER up pipe without an EGR port to save time and avoid welding.
Verification: Check for tight, secure connections without leaks.
Step 4: Replace the Downpipe
Remove Factory Downpipe
Remove the turbo heat shield and loosen the V-band clamp.
Slide out the downpipe, maneuvering it through the frame.
Install New Downpipe
Position the SPETUNER downpipe for better airflow and tighten all connections.
Verification: Confirm that all bolts are secure, and there are no gaps or leaks in the exhaust system.
Step 5: Install Blocker Plates
Clean Intake Horn Ports
Use a wire brush and carburetor cleaner to remove carbon buildup from the ports.
Attach Blocker Plates
Secure the SPETUNER blocker plates to the intake horn using provided brackets and spacers.
Tighten bolts to ensure a flush fit.
Verification: Ensure blocker plates are properly sealed to prevent leaks.
Step 6: Install the New Coolant Line
-
Route the Line
Connect the new coolant line from the firewall to the radiator.
Secure it with clamps to prevent leaks.
SPETUNER Advantage: Pre-measured coolant lines eliminate guesswork for a precise fit.
Verification: Double-check the connection points and test for leaks after adding coolant.
Step 7: Final Assembly
Reinstall Components
- Turbo intake horn and PCV piping.
- Air intake system.
- Electrical wiring and sensors.
Refill Coolant
Fill the system and bleed air by loosening the thermostat housing screw until coolant flows out.
Verification: Check all connections, bolts, and fluid levels before starting the engine.
After Installation
- Test Drive: Ensure the truck runs smoothly with no leaks or error codes.
- Monitor Levels: Check oil and coolant levels for a few days after installation.
- Follow-Up Maintenance: Inspect bolts and seals periodically to ensure long-term reliability.
Video Reference for Installation
For a visual walkthrough, we recommend checking out the detailed EGR Delete installation video by Dark Iron Diesel on YouTube. This video provides a practical demonstration of the process for a 2006 LBZ Duramax. Please note, while we draw inspiration from their valuable content, our guide focuses on the SPETUNER EGR Delete Kit and may include product-specific details and optimizations not covered in the video.
You can watch the original video here:
Disclaimer: This video is referenced for educational purposes only and remains the property of its creator. Full credit goes to Dark Iron Diesel for their expertise and efforts.
Conclusion: Why Choose SPETUNER for Your EGR Delete Kit
Installing the SPETUNER 2006-2007 LBZ EGR Delete Kit for your 6.6L Duramax LBZ delivers unmatched performance and reliability for off-road use.
A complete EGR removal solution for your 2006-2007 LBZ. This kit eliminates exhaust gas recirculation to lower intake temperatures, improve throttle response, and prevent soot buildup. Built for long-term durability and better engine efficiency.
Enhanced Engine Efficiency
Reduced exhaust backpressure improves airflow, optimizing engine performance for demanding conditions.
Prolonged Engine Lifespan
By eliminating carbon buildup, the SPETUNER EGR Delete Kit protects vital components, reducing maintenance and repair costs.
Improved Cooling System Durability
The included precision-engineered coolant lines ensure smooth and consistent coolant flow, reducing strain on the system and preventing overheating.
Precision Engineering
Every component is designed to fit perfectly, simplifying installation and ensuring long-term reliability.
Cost-Effective Upgrades
SPETUNER kits eliminate the need for expensive replacements, offering a high-quality solution that saves you money without compromising on performance.
Ready to unlock the full potential of your truck? Whether you are looking for a universal EGR delete kit or a specific Duramax EGR delete kit, SPETUNER provides the precision-engineered parts you need to ensure a leak-free, high-performance setup.
Choose SPETUNER for your next modification and experience the ultimate in durability, efficiency, and ease of installation. Your Duramax deserves nothing less.
FAQ
Q: Will this modification trigger a check engine light?
A: Yes, removing the EGR system will trigger a Check Engine Light (CEL) and potential "limp mode" because the ECU will detect a lack of EGR flow. You must use an aftermarket tuner (like EFI Live or EZ Lynk) to disable the EGR codes and optimize engine performance.
Q: What if I don’t have welding tools for the up pipe?
A: If you cannot weld the factory up pipe, we recommend purchasing a pre-fabricated SPETUNER performance up pipe. It is designed without the EGR riser, providing a cleaner look and better exhaust flow without the need for custom fabrication.
Q: How do I loosen stuck or rusted exhaust bolts?
A: 2006-2007 trucks often have rusted bolts. Use a handheld torch to heat the area around the bolt and apply a high-quality penetrating lubricant (like PB Blaster). Let it soak for at least 30 minutes before attempting removal with a 12-point socket.
Q: Will an EGR delete improve my fuel mileage?
A: Most LBZ owners report a slight increase in MPG (typically 1-2 miles per gallon). This is because the engine is breathing fresh, oxygen-rich air instead of hot, inert exhaust gases, leading to more efficient combustion.
Q: Can I reinstall the factory EGR system later?
A: Yes, as long as you keep your factory components. If you modified your original up pipe by welding it, you would need to buy a new factory-style up pipe to return the vehicle to its stock emissions configuration.
Q: Does the LBZ EGR delete kit require a full exhaust replacement?
A: While not strictly required, it is highly recommended. Using a high-flow downpipe and a 4-inch or 5-inch exhaust system alongside the EGR delete will significantly reduce Exhaust Gas Temperatures (EGTs).
Q: How does this kit prevent coolant leaks?
A: The SPETUNER kit includes a custom-formed silicone coolant bypass hose and high-quality clamps. This ensures that the engine's cooling circuit remains intact and pressurized after the bulky EGR cooler is removed.
Q: Is the high-flow intake elbow included in the kit necessary?
A: It is a significant upgrade. The stock intake bridge is often restricted by soot buildup and the EGR valve itself. The SPETUNER high-flow elbow eliminates these restrictions, allowing for maximum airflow into the cylinders.
Q: How long does the installation typically take?
A: For a DIYer with average mechanical skills, the installation usually takes 4 to 8 hours. The most time-consuming part is often removing the stubborn bolts on the factory up pipe and draining the coolant.
Q: Is this kit legal for street use?
A: This kit is sold strictly for off-road or competition use only. Removing emissions equipment on a highway vehicle is illegal in many jurisdictions. Always check your local and federal regulations before installing.
