What Is a Cat Delete? What It Removes and What Changes
A cat delete means removing the catalytic converter from a vehicle’s exhaust system and replacing it with a straight section of pipe. The word “cat” is short for catalytic converter. This part helps turn harmful exhaust gases into less harmful gases before they leave the tailpipe.
Some owners consider a cat delete because they want more exhaust flow, a different sound, or a possible fix for a restricted converter. However, removing a working catalytic converter does not guarantee more horsepower, better MPG, or lower exhaust gas temperature. It can also cause warning lights, strong exhaust odor, inspection failure, and legal problems.
This guide explains cat deletes on both gasoline vehicles and diesel trucks, with added detail for older Powerstroke exhaust systems.
Quick Answer
A cat delete removes the catalytic converter and replaces it with an open exhaust pipe. It may reduce backpressure if the old converter is damaged or blocked. On a healthy street vehicle, the change may offer little measurable power or fuel economy benefit. Removing a required converter is also illegal for street use under federal law in the United States.[1]
What Does a Catalytic Converter Do?
A catalytic converter is an emissions-control part installed in the exhaust. It contains a coated internal structure that helps change harmful gases into less harmful gases.
Depending on the engine and emissions system, the converter may help reduce:
- Carbon monoxide
- Unburned hydrocarbons
- Oxides of nitrogen
- Some diesel exhaust pollutants
The converter does not act like a simple empty pipe. Exhaust flows through a honeycomb-style core with a large surface area. The coating on that core supports chemical reactions as hot exhaust passes through it.
Where Is the Cat Located?
The catalytic converter is normally installed between the engine and the rear section of the exhaust. Its exact location depends on the vehicle.
On a gasoline vehicle, the converter may sit close to the exhaust manifold so it can heat up quickly. Some vehicles have more than one converter. V-style engines may also have separate converters for each bank of cylinders.
On a diesel truck, the converter may be part of a larger emissions system that includes a diesel oxidation catalyst, diesel particulate filter, selective catalytic reduction system, and several sensors.
Before buying or removing any pipe, identify every exhaust component by part number, sensor position, and model-year diagram. A large exhaust canister is not always a traditional catalytic converter.
How Does a Cat Delete Work?
A cat delete replaces the converter section with a straight pipe or less restrictive exhaust section. This creates a more direct path for exhaust gas.
If the converter is badly blocked, removing the restriction can restore lost exhaust flow. If the converter is healthy, the difference may be small because a working converter may not be the main restriction in the system.
The change may also affect oxygen sensors, exhaust temperature sensors, pressure sensors, or the engine control system. Results depend on the vehicle, engine calibration, emissions equipment, and condition of the original converter.
Cat Delete vs. Muffler Delete vs. DPF Delete
These terms are often mixed together, but they describe different changes.
| Modification | Part Removed | Main Change | Common Concern |
|---|---|---|---|
| Cat delete | Catalytic converter or diesel oxidation catalyst | Changes emissions control and exhaust restriction | Legality, odor, warning lights, inspection |
| Muffler delete | Muffler | Increases exhaust sound | Noise, drone, local sound limits |
| DPF delete | Diesel particulate filter | Removes the filter that traps soot | Tampering laws, smoke, calibration, sensors |
| EGR delete | Exhaust gas recirculation parts | Stops or changes exhaust gas recirculation | Legality, tuning, engine operation |
| Cat-back exhaust | Usually replaces parts behind the converter | Changes sound and rear exhaust flow | Fitment, sound level, local rules |
Cat Delete vs. Muffler Delete
The catalytic converter controls emissions. The muffler controls sound. Removing a muffler normally makes the vehicle louder, but it does not remove the same emissions-control function as removing a converter.
Some older diesel exhaust systems place both parts in the same replacement path. This is why certain vehicle-specific off-road pipes replace both the cat and muffler sections. Removing both parts normally creates a larger sound change than removing only the converter.
Cat Delete vs. DPF Delete
A catalytic converter changes gases through chemical reactions. A diesel particulate filter traps soot and later burns much of it during regeneration. They are different parts, even when they sit close together.
Later diesel trucks may use a combined exhaust section containing a diesel oxidation catalyst, DPF, and multiple sensors. Replacing that section is more involved than replacing a single converter pipe on an older truck.
Cat Delete vs. Straight Pipe
A cat delete removes only the catalytic converter section. A full straight pipe may also remove the muffler, resonator, DPF, or other exhaust parts. Product names are not always used in the same way, so check exactly which factory sections a pipe replaces.
Related Article:
What Changes After a Cat Delete?
1. Exhaust Sound
The exhaust may sound louder, sharper, or more direct. The size of the change depends on the muffler, pipe diameter, turbocharger, resonator, and location of the converter.
Removing only the cat does not always create a major sound change. The muffler still controls much of the volume on many vehicles. Some trucks may also develop cab drone at a steady highway speed.
2. Exhaust Smell
Exhaust odor will usually become stronger because the converter is no longer treating the exhaust gas. The smell may be most noticeable during a cold start, at idle, or when the vehicle is parked near a building.
A strong raw-fuel smell can also point to an engine problem. Do not assume every odor is a normal result of an exhaust change. Check for fuel leaks, injector problems, rich operation, and exhaust leaks.
3. Exhaust Flow
A blocked converter can create high backpressure. Replacing a blocked unit can restore lost flow and power. Removing a healthy converter, however, does not guarantee a large improvement.
A turbo diesel may feel more responsive when a serious exhaust restriction is removed. That is often restored performance, not extra power above what the engine could produce with a healthy emissions system.
4. Check Engine Light
A cat delete can turn on the check engine light. Gasoline vehicles often compare signals from oxygen sensors before and after the converter. If the expected change is missing, the computer may store a catalyst-efficiency code.
Common catalyst-related codes include P0420 and P0430. P0420 usually relates to catalyst efficiency on Bank 1, while P0430 normally refers to Bank 2. The exact test and code meaning can vary by vehicle, so read the stored codes before replacing any part.
Diesel systems may monitor exhaust pressure, temperature, oxygen level, or emissions-system operation. The result depends on the model year and calibration. Never assume a pipe will install without codes just because a similar truck did not show a warning light.
5. Emissions and Inspection Results
The vehicle will release more untreated pollution after the converter is removed. It may also fail a visual inspection, onboard diagnostic inspection, readiness check, or exhaust emissions test.
Even in an area without regular testing, federal emissions rules still apply to vehicles driven on public roads. The EPA identifies removing a catalytic converter without a proper approved replacement as illegal tampering.[1]
Does a Cat Delete Add Horsepower?
There is no accurate universal horsepower number for a cat delete. Claims such as “adds 20 horsepower” are not reliable unless they come from controlled testing on the same vehicle.
The real result depends on:
- Whether the original converter is healthy or blocked
- Engine type and current power level
- Turbocharger and exhaust design
- Pipe diameter
- Engine calibration
- Dyno type and correction method
- Air temperature and test conditions
If the converter is healthy, the gain may be too small to feel or may fall within normal dyno test variation. If it is badly blocked, removing the restriction can recover horsepower the vehicle had already lost.
How to Measure Horsepower Correctly
Use the same chassis dyno before and after the change. Keep tire pressure, fuel, engine temperature, gear, correction method, and test-day conditions as close as possible. Run the vehicle more than once and compare the average, not only the best pull.
Does a Cat Delete Improve MPG?
A cat delete does not have a dependable MPG gain. Some owners report better fuel economy, while others see no change or even lower MPG. A louder exhaust can also cause the driver to use more throttle, which may reduce fuel economy.
Many older heavy-duty pickups do not have the same official EPA city and highway fuel economy ratings shown for lighter vehicles. EPA rules historically excluded many vehicles above an 8,500-pound gross vehicle weight rating from fuel economy testing.[4] This is one reason owner-reported diesel truck MPG numbers are difficult to compare.
How to Test MPG Accurately
Do not rely on one short trip or only on the dashboard display. Fill the tank to the same point, record the miles driven, and divide the miles by the gallons needed at the next fill-up.
Track at least three full tanks before and three full tanks after the change. Keep the route, load, towing weight, tire pressure, idle time, fuel type, and driving speed similar. A small MPG change can come from wind, traffic, weather, or regeneration events rather than the exhaust pipe.
Does a Cat Delete Lower EGT?
A cat delete may reduce exhaust restriction if the original converter is blocked. That can change exhaust gas temperature, or EGT, under load. However, there is no single accurate temperature drop that applies to every truck.
Probe location can change the reported EGT more than the exhaust modification itself. Banks Power reports that a post-turbo reading under heavy load can be about 200–300°F lower than a reading taken in the exhaust manifold before the turbo. Under light load, the difference can reach about 500°F.[3]
That does not mean a cat delete lowers EGT by 200–300°F. It means two gauges in different locations can display very different numbers on the same truck.
| Measurement | What a Useful Test Requires | What to Avoid |
|---|---|---|
| Horsepower | Same dyno, correction method, gear, temperature, and several runs | Using a claimed gain from a different truck |
| MPG | Hand calculation over at least three tanks with a similar route and load | Judging the result from one trip or the dash display |
| EGT | Same probe location, load, speed, gear, grade, and outside temperature | Comparing pre-turbo data with post-turbo data |
Do You Need a Tune for a Cat Delete?
It depends on the vehicle. Some older trucks may not directly monitor converter performance. Newer gasoline and diesel vehicles can use several sensors to check the exhaust system.
Removing an emissions part may cause trouble codes, warning lights, reduced-power operation, or failed readiness monitors. A tune also does not make emissions tampering legal for public-road use. EPA policy treats hardware removal and products that bypass emissions controls as tampering or defeat-device concerns.[2]
Common Cat Delete Problems
- Check engine light: The computer may detect that catalyst operation is missing.
- Failed inspection: The vehicle may fail a visual, OBD, readiness, or tailpipe test.
- Strong exhaust smell: Untreated exhaust is easier to notice near the vehicle.
- Extra noise: The exhaust may become louder or develop highway drone.
- No real performance gain: A healthy converter may not be a major restriction.
- Poor fitment: A universal pipe can cause leaks, rattles, or sensor-location problems.
- Lower resale value: Some buyers will not purchase a vehicle with missing emissions parts.
- Warranty concerns: Related repair claims may become more difficult after emissions parts are removed.
- Harder to return to stock: Cutting the factory exhaust can make later repairs or emissions restoration more expensive.
- Legal risk: Public-road use can violate federal and local emissions rules.
How Can You Tell If a Catalytic Converter Is Clogged?
A blocked converter can cause poor acceleration, low boost, high exhaust backpressure, excess heat, or a loss of power under load. In severe cases, the engine may run normally at idle but struggle as speed and load increase.
These symptoms do not prove the cat is clogged. Similar problems can come from:
- A dirty air filter
- Boost or exhaust leaks
- Turbocharger problems
- Weak fuel pressure
- Injector faults
- Bad sensors
- A restricted DPF
- A damaged muffler
- Transmission or torque converter problems
A proper diagnosis may include checking trouble codes, measuring exhaust backpressure, comparing temperatures before and after the converter, and viewing the internal core with an inspection camera. Do not replace or remove parts based only on sound or a guess.
What Should You Do With a Failed Catalytic Converter?
For a street-driven vehicle, the proper repair is normally an approved replacement converter that matches the vehicle and local emissions rules. Find the cause of the failure before installing the new unit.
A converter may fail early because of:
- A rich fuel mixture
- Oil or coolant entering the exhaust
- Injector problems
- Engine misfires
- Excessive exhaust heat
- Physical impact
- Long-term engine problems
If the root cause is not repaired, the new converter may also overheat, melt, become contaminated, or clog.
Can a Cat Delete Be Reversed?
A cat delete can often be reversed if the original converter and exhaust sections were saved. Returning the vehicle to stock may require new clamps, flanges, gaskets, sensors, or complete exhaust sections.
Restoration becomes more difficult when the original exhaust was cut into several pieces or sensor mounts were changed. Owners of lawful off-road or competition vehicles should keep all factory emissions parts and avoid damaging them whenever possible.
Keeping the factory parts may reduce future problems if the vehicle is sold, registered in another state, or returned to public-road use.
Is a Cat Delete Legal?
For a street-driven vehicle in the United States, removing a required catalytic converter is not legal. The Clean Air Act prohibits tampering with emissions-control systems. The EPA also states that installing a straight pipe in place of a catalyst or filter can be evidence of tampering.[2]
A product marked “race use only” does not make it legal to drive the modified vehicle on public roads. The vehicle must actually be used in a lawful application. State and local rules may add inspection, registration, sound, or emissions requirements.
Before changing an emissions system, check federal law, state inspection rules, and the rules for the property, event, or track where the vehicle will be operated.
Is a Cat Delete Worth It?
For a street vehicle with a healthy converter, a cat delete is usually not worth the legal risk, exhaust smell, inspection trouble, and uncertain performance gain. A compliant replacement converter or legal cat-back exhaust is normally the better choice.
For a dedicated off-road or competition truck, the decision depends on the rules of the event, property, or track. Confirm the exact model year, cab and bed length, exhaust diameter, sensor locations, and existing emissions equipment before choosing any pipe.
The key point is simple: diagnose the vehicle first. A cat delete should not be treated as a guaranteed fix for low power, poor MPG, high EGT, or turbo problems.
Recommended SPEtuner Cat Delete Products
If you are working with an older Powerstroke and have already confirmed the exhaust layout, intended use, and local rules, the next step is to compare a pipe made for your exact engine and model year.
The options below are designed for specific Powerstroke applications. Check the model year, engine, cab and bed configuration, factory exhaust layout, and pipe size before ordering.
| Truck Application | Product Type | Check Before Ordering |
|---|---|---|

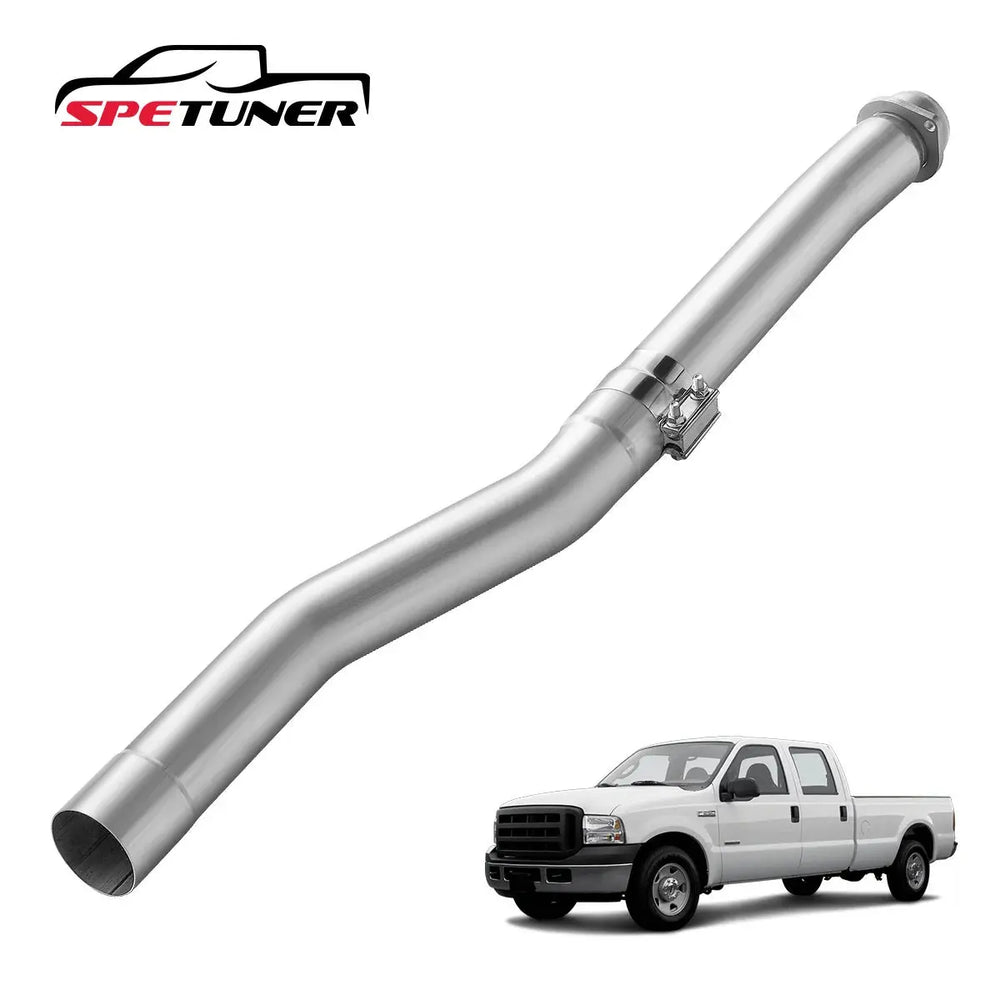

| 2003–2007 Ford 6.0L Powerstroke | Cat and muffler delete exhaust | Model year, cab, bed, wheelbase, and factory exhaust layout |

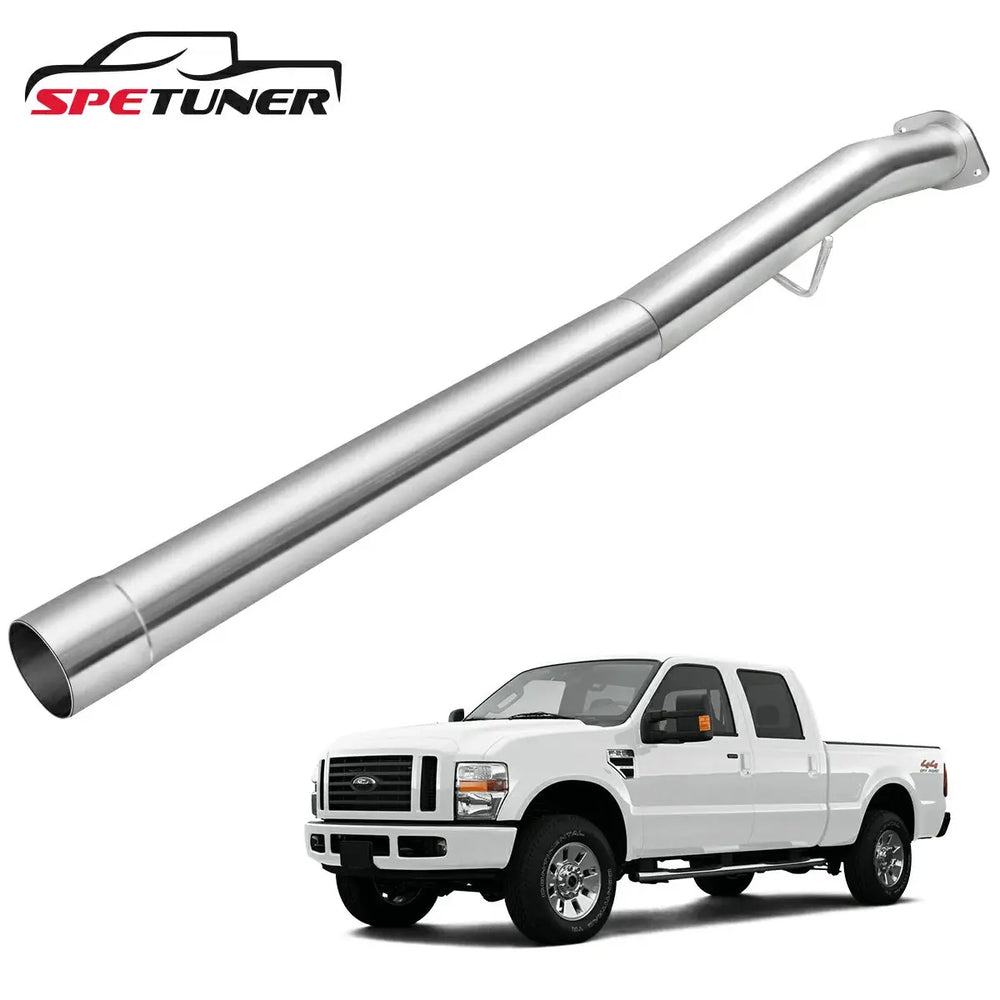

| 2008–2010 Ford 6.4L Powerstroke | Cat and DPF delete race pipe | Model year, emissions layout, pipe size, sensors, and intended use |
[[product-recommend:1]]
[[product-recommend:2]]
Important: These products are intended only for lawful off-road or competition applications. Removing required emissions equipment from a vehicle used on public roads may violate federal, state, or local law.
Check These Details Before Choosing a Pipe
- Exact model year and engine: Similar-looking trucks can use different exhaust layouts.
- Cab, bed, and wheelbase: These details can affect pipe length and connection points.
- Factory or aftermarket exhaust: A pipe designed for the stock system may not connect to an existing aftermarket exhaust.
- Pipe diameter: Measure the current exhaust rather than choosing by appearance.
- Sensor locations: Compare all sensor bungs, ports, and flange positions.
- Required work: Check whether installation requires cutting, welding, or extra clamps.
- Intended use: Confirm that the vehicle will be used only where the exhaust change is lawful.
References
- United States Environmental Protection Agency: “Frequent Questions Related to Transportation, Air Pollution, and Climate Change.” Guidance covering catalytic converter removal, replacement, and emissions tampering. Available from United States Environmental Protection Agency.
- United States Environmental Protection Agency: “EPA Enforcement Policy on Vehicle and Engine Tampering and Aftermarket Defeat Devices.” Federal policy covering removed catalysts, filters, straight pipes, and emissions-control bypass products. Available from United States Environmental Protection Agency.
- Banks Power: “Why EGT Is Important.” Technical explanation of exhaust gas temperature and the difference between pre-turbo and post-turbo probe readings. Available from Banks Power.
- United States Environmental Protection Agency: “Light-Duty Automotive Technology, Carbon Dioxide Emissions, and Fuel Economy Trends.” EPA information describing vehicle classes and historical fuel economy testing limits for heavier vehicles. Available from United States Environmental Protection Agency.
FAQ
Q1: What does a cat delete do?
A1: A cat delete removes the catalytic converter and replaces it with an open exhaust section. It can reduce restriction if the converter is clogged, but a healthy converter may not limit power enough to create a noticeable gain. Street-driven vehicles should use a legal replacement converter instead.
Q2: Will a cat delete make my truck louder?
A2: It may make the exhaust louder, sharper, or more direct. The final sound depends on the muffler, resonator, turbo, pipe size, and cab design. Owners who drive long highway trips should also consider the risk of cab drone.
Q3: How much horsepower does a cat delete add?
A3: There is no fixed horsepower gain. A blocked converter can cause major power loss, so removing the restriction may restore that lost power. A healthy converter may show little or no measurable change. Use repeatable before-and-after dyno tests for a reliable answer.
Q4: Does a cat delete improve diesel MPG?
A4: Better MPG is not guaranteed. Fuel economy changes with speed, load, tires, weather, idle time, fuel, and driving style. Hand-calculate fuel use over at least three similar tanks before and after a change.
Q5: Will a cat delete lower EGT?
A5: It may change EGT if the old converter was creating heavy backpressure, but there is no universal temperature drop. Probe location has a major effect on the reading. Compare temperatures only with the same probe location, gear, load, speed, and test route.
Q6: Will a cat delete cause a check engine light?
A6: It can. Many vehicles monitor catalyst operation through oxygen, pressure, or temperature sensors. Gasoline vehicles may store codes such as P0420 or P0430. Scan the vehicle and confirm its monitoring system before assuming it will operate without codes.
Q7: Is a cat delete the same as a straight pipe?
A7: Not always. A cat delete replaces only the catalytic converter section, while a full straight pipe may also remove the muffler, resonator, DPF, or other parts. Check the complete pipe path and sensor locations before choosing any exhaust part.
Q8: Is a muffler delete the same as a cat delete?
A8: No. A muffler controls exhaust sound, while a catalytic converter controls emissions. Removing the muffler mainly changes noise. Removing the converter changes the emissions system and creates different legal and inspection concerns.
Q9: Can I drive on the street with a cat delete?
A9: Removing a required catalytic converter is not legal for street use in the United States. It may also cause inspection and registration problems. Use an approved replacement converter for a public-road vehicle and check state and local requirements.
Q10: Should I remove the cat if my truck has low power?
A10: Diagnose the truck before changing the exhaust. Low power can come from fuel, boost, turbo, sensor, intake, DPF, or transmission problems. Test exhaust backpressure and inspect the converter before deciding that it is restricted.
Q11: Can a cat delete be reversed?
A11: Yes, if the original converter and exhaust sections were saved and the system was not heavily cut or welded. Returning to stock may require new clamps, sensors, gaskets, or complete exhaust sections. Keep all factory emissions parts if the vehicle may later be sold, registered, or returned to public-road use.
Q12: Should I keep my original catalytic converter?
A12: Yes. Keeping the original converter makes it easier to return a lawful off-road vehicle to its factory condition. Store the converter and related sensors in a dry, secure place, and label their original positions before removal.
