3.5" Cat & Muffler Delete Exhaust for 2003–2007 Ford 6.0L Powerstroke F-250/F-350

2003-2007 6.0 Powerstroke Cat and Muffler Delete Overview

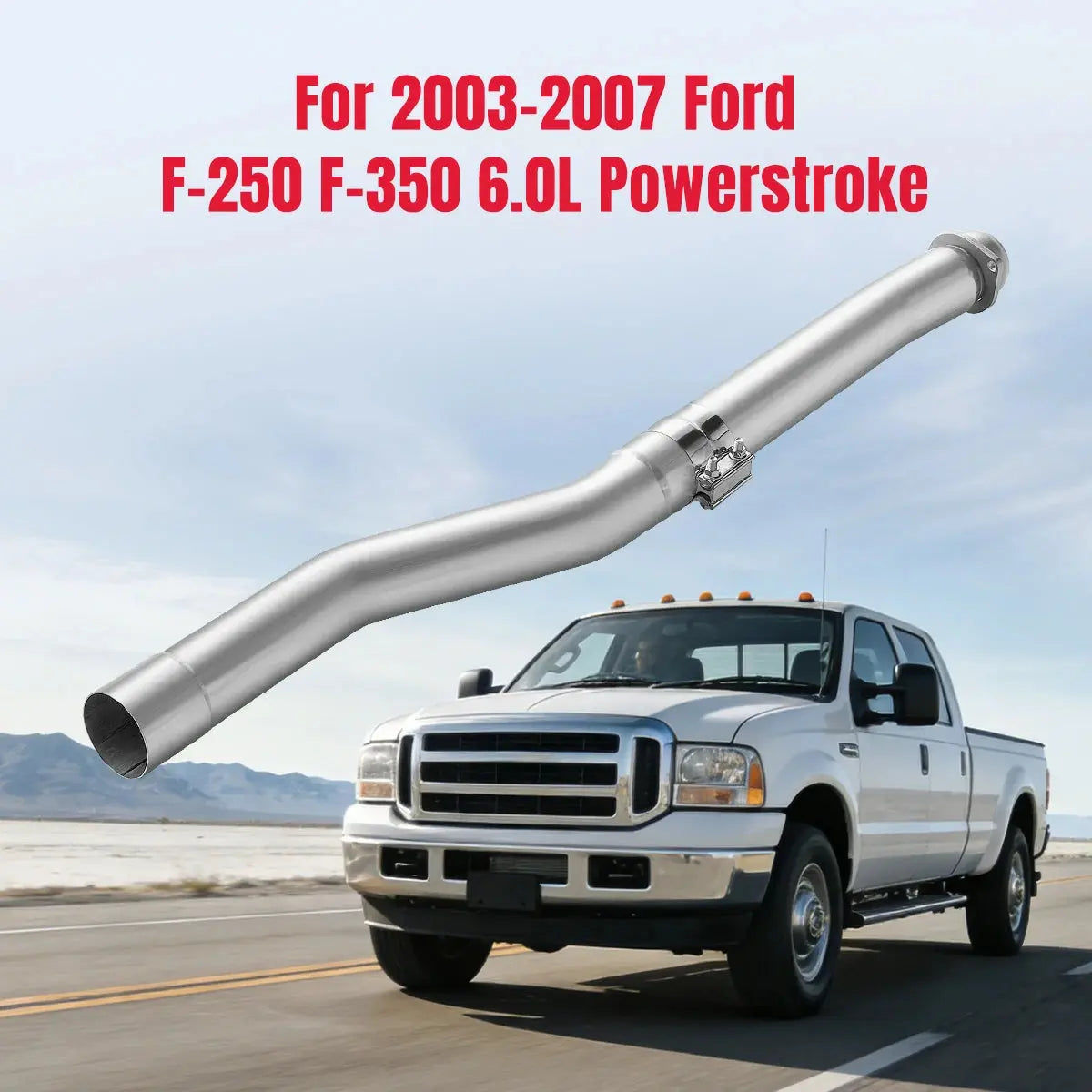

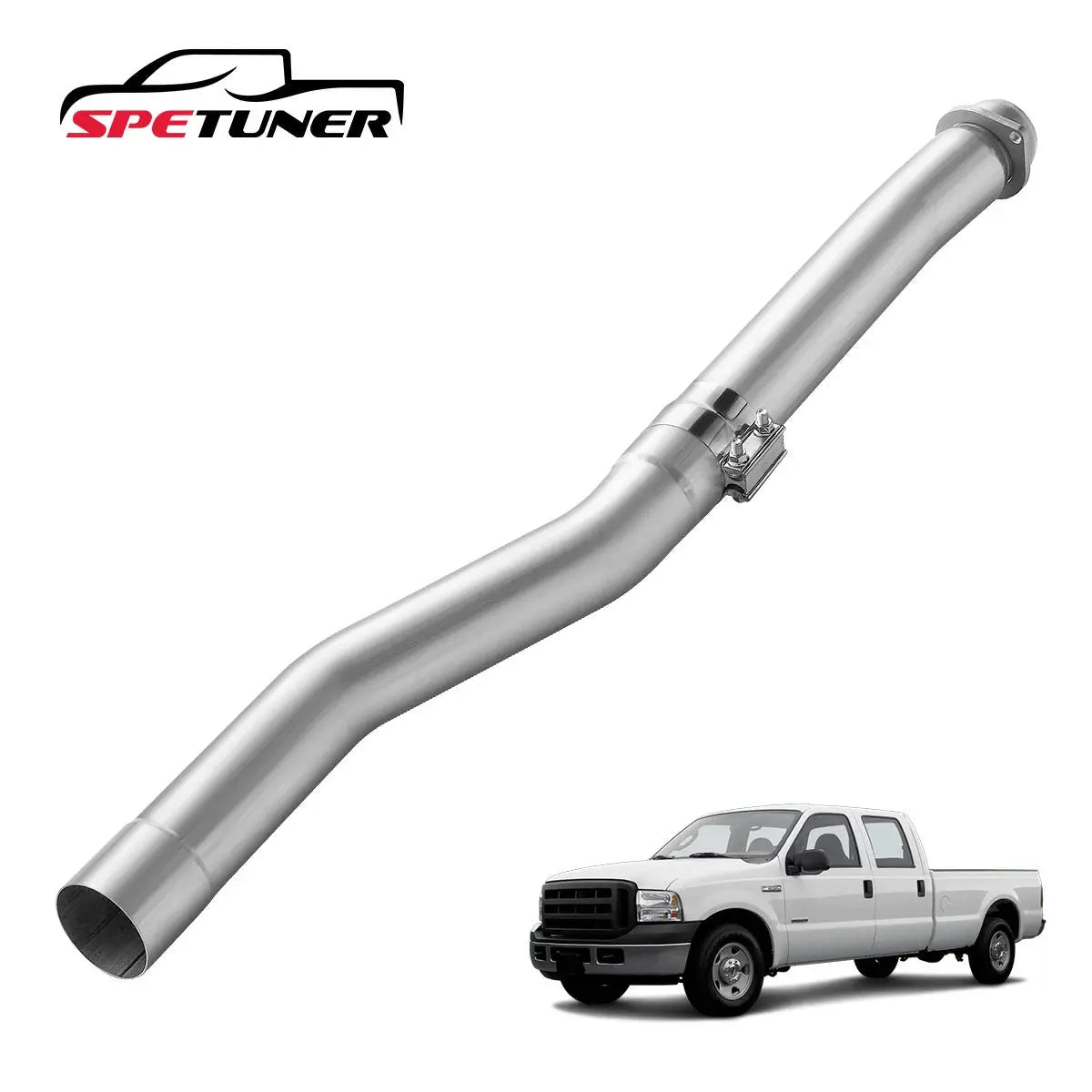

Wake up the true power, legendary whistle, and unrestricted exhaust flow of your 6.0 Powerstroke Super Duty. The 3.5" Cat & Muffler Delete Pipe is for 2003–2007 Ford F250, F350 trucks equipped with the 6.0L Powerstroke turbo diesel engine. Its two-piece, straight-through design retains the factory-style 3.5-inch exhaust diameter and connects between the compatible factory downpipe and rear exhaust section.

Removing the factory muffler creates a louder, deeper exhaust note and makes the signature 6.0L turbo whistle more noticeable. The final sound and cabin resonance vary by truck configuration, engine speed, and the remaining exhaust components.

Note: This is a high-flow race-only upgrade designed for off-road/competition use or states without emissions inspections. Tuner required before removing OE exhaust. Check compatible tuner: Mini Maxx V1 tuner.

Specifications

Key Features

• Maximum Exhaust Velocity & Flow: Eliminates the highly restrictive factory catalytic converter and muffler, creating a straight-through path for exhaust gases to escape instantly.
• Aggressive, Pure 6.0L Powerstroke Whistle: Unleashes that signature, crisp turbine whistle and deep, throaty V8 rumble that every 6.0L owner craves—zero cabin drone at highway cruising speeds.
• Drastically Lowers EGTs: Crucial for the longevity of the 6.0 Powerstroke platform; reducing backpressure allows heat to escape faster, protecting your turbo and head gaskets under heavy towing loads.
• Quicker Turbo Spool-Up: Removing exhaust restrictions reduces turbo lag significantly, giving you instantaneous throttle response and better low-end torque.
• Improves Fuel Economy (MPG): A more efficient, free-flowing engine breathes easier, allowing your truck to burn fuel more efficiently and boosting average miles per gallon.

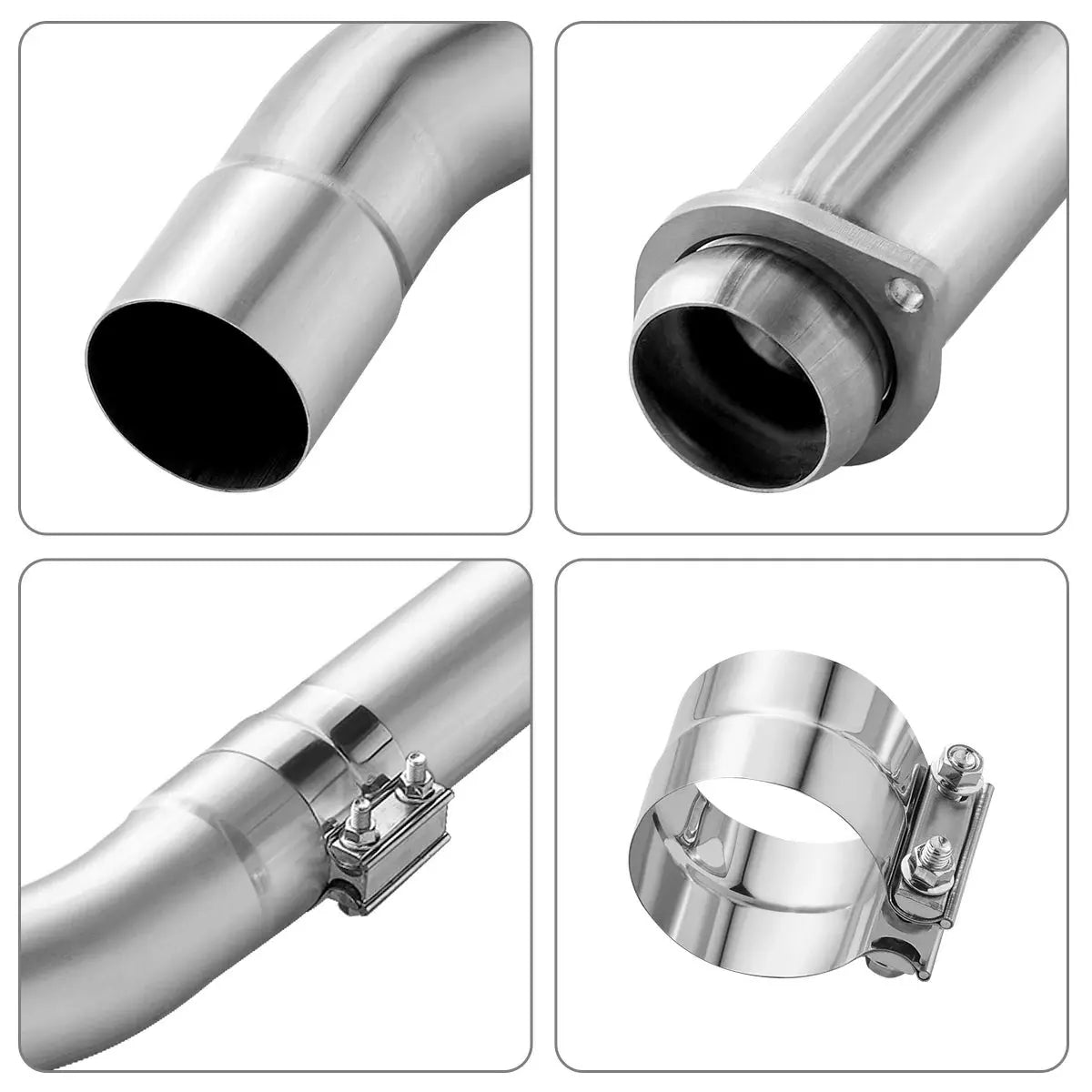

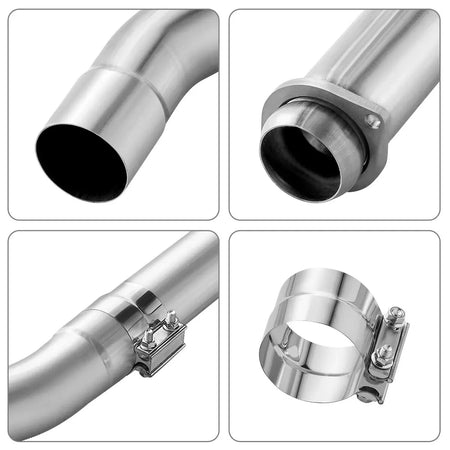

• Heavy-Duty Construction: Crafted from premium, rust-resistant mandrel-bent tubing designed to withstand harsh road debris, high vibration, and extreme exhaust heat.

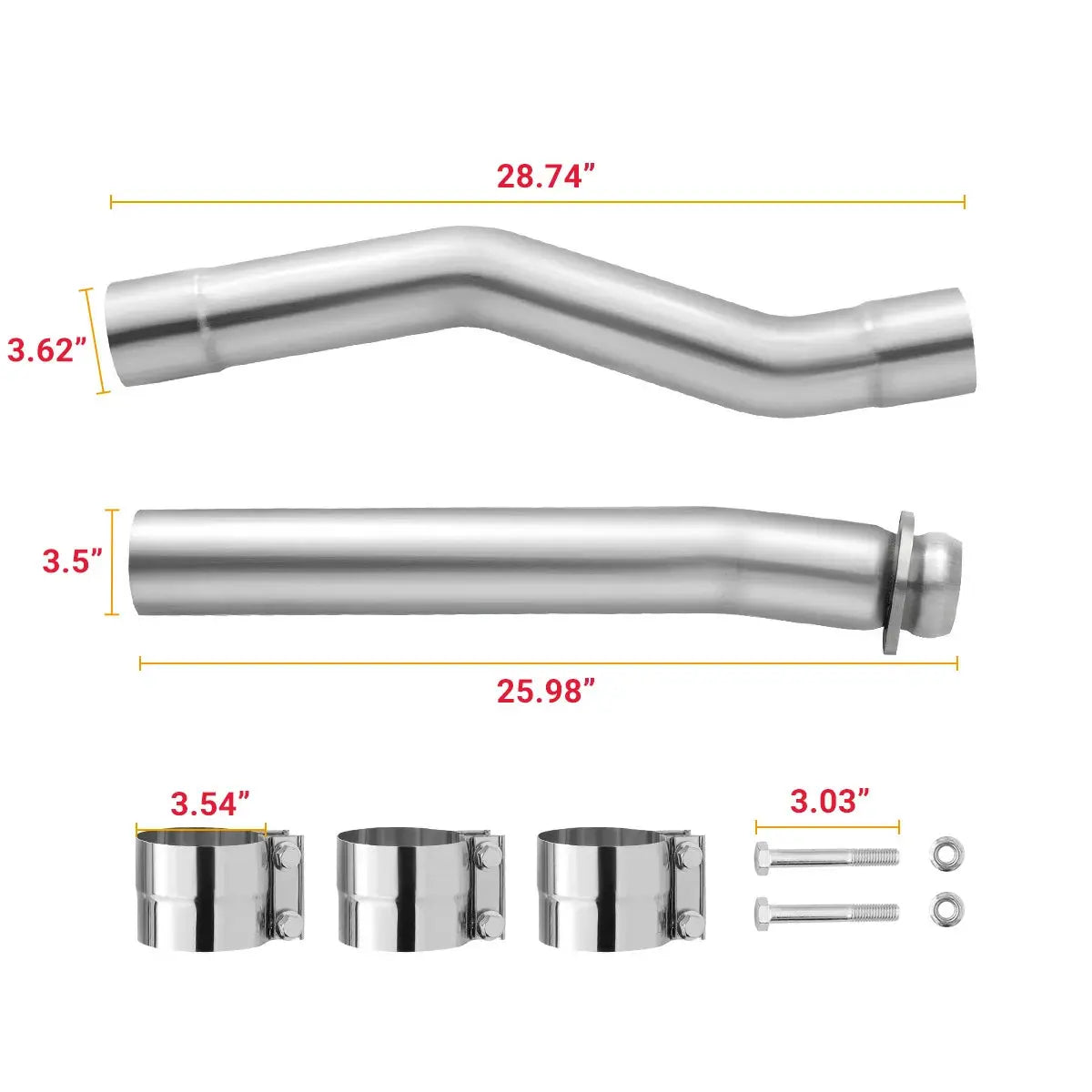

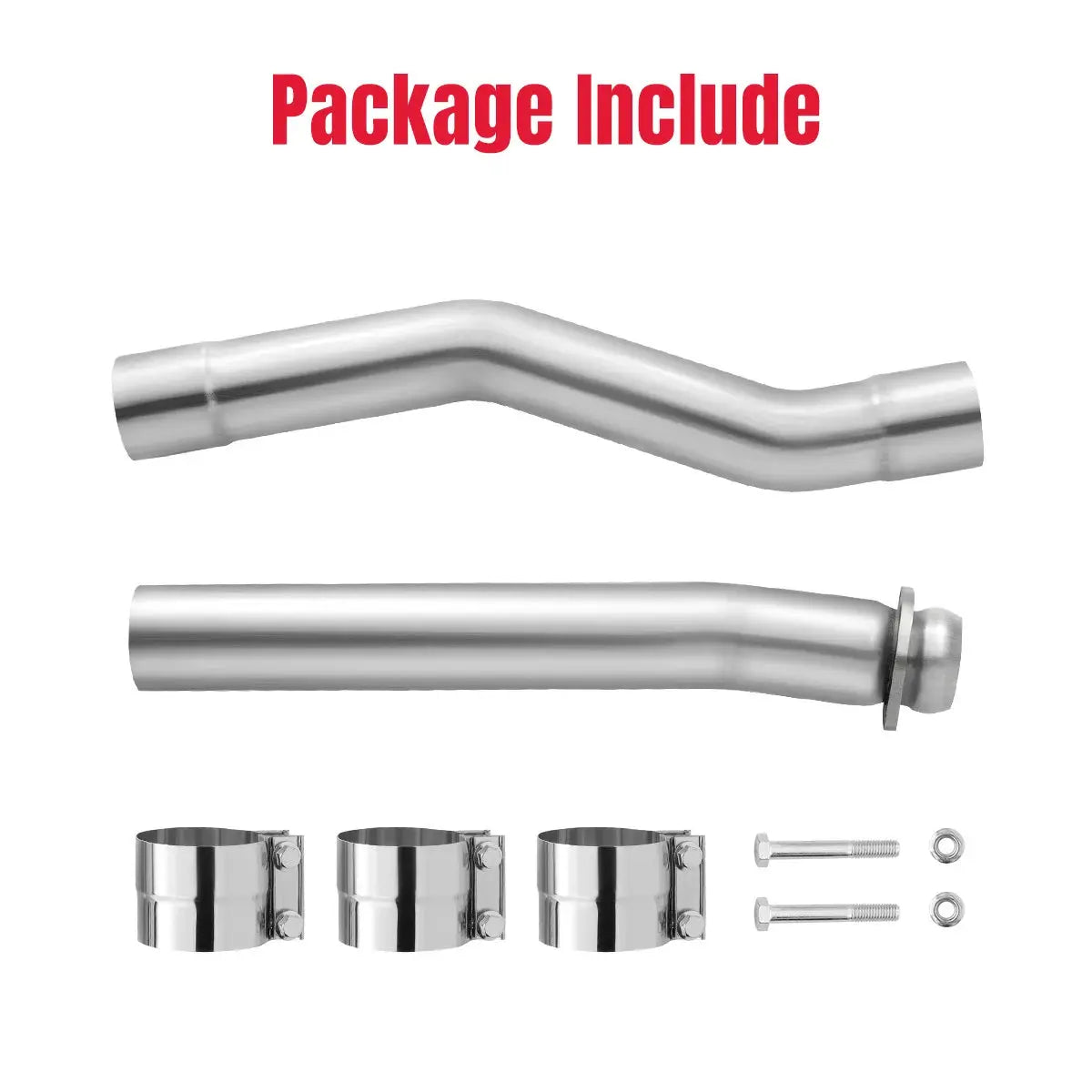

What’s Included

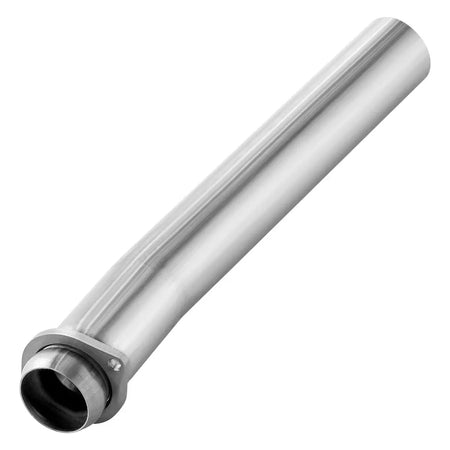

• 1 × CAT delete pipe

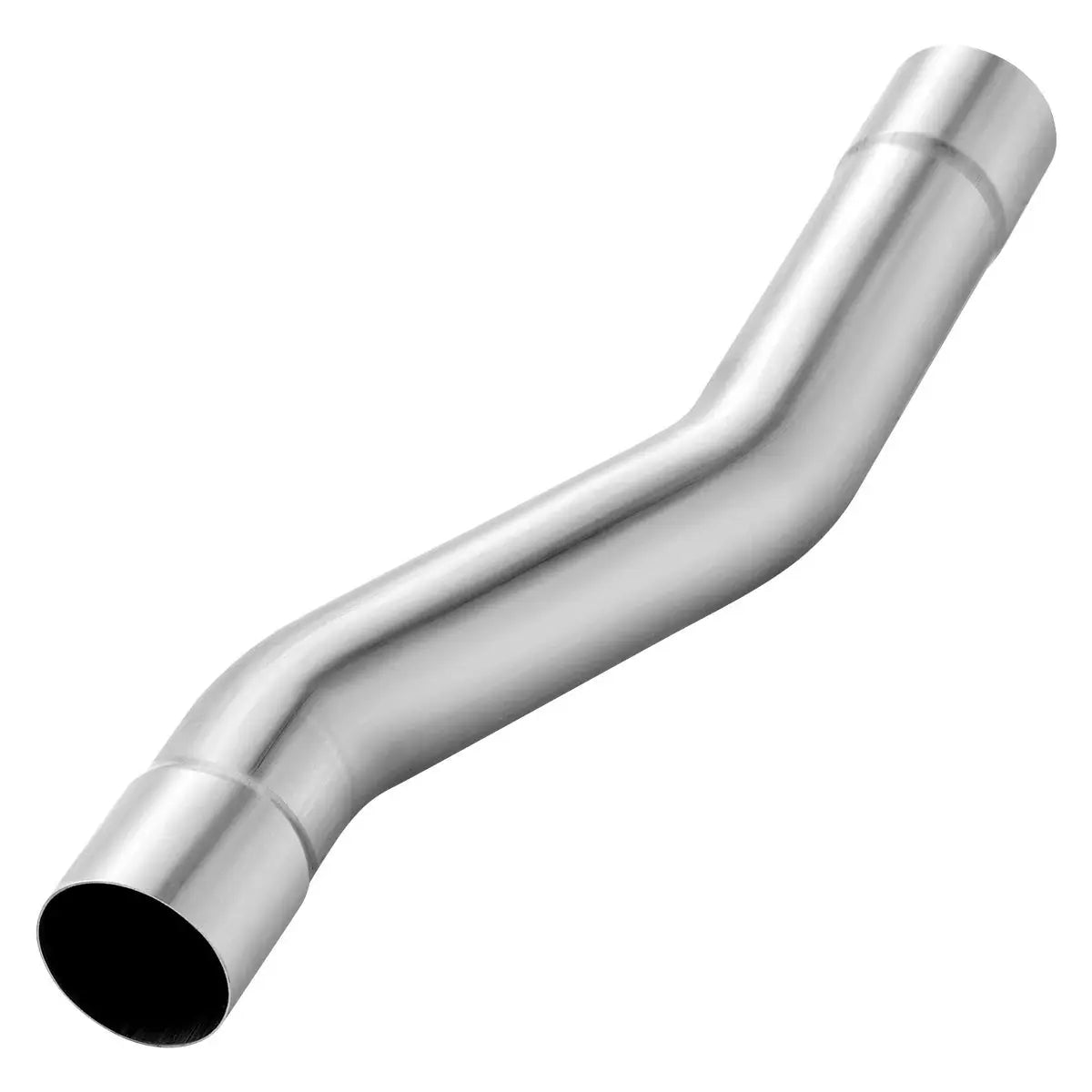

• 1 × muffler delete pipe
• 3 × exhaust clamps
• 2 × Bolt and Nut
• 2 × nuts


Why Buyers Choose Spetuner Kit

• Complete two-section replacement: Includes separate pipes for both the CAT and muffler locations.
• Factory-size connection: The 3.5-inch tubing is designed around the compatible original exhaust configuration.
• More direct exhaust path: Straight-through tubing removes the internal restriction of the original CAT and muffler sections.
• Aggressive 6.0L sound: Produces a louder exhaust note and more pronounced turbo whistle.
• Installation hardware included: Pipes, clamps, bolts, and nuts are supplied together.

Check Before You Order

• Confirm that the truck is a listed F-250 or F-350 pickup with the 6.0L Powerstroke diesel engine.
• Measure the existing exhaust and verify a factory-style 3.5-inch configuration.
• This kit is designed around the compatible factory downpipe. Fitment with MBRP or other aftermarket downpipes is not guaranteed.
• Previously modified exhaust systems may require additional trimming, clamps, adapters, or fabrication.
• A cat-and-muffler replacement setup is substantially louder than the factory exhaust and may create highway drone.

Installation Notes

• Installation Time: Approximately 60–90 minutes.
• Difficulty Level: Easy to Moderate (Basic hand tools and an exhaust pipe cutter/hanger tool required).
• Direct Bolt-On: Replaces the mid-section of your OEM exhaust system while retaining your stock downpipe and tailpipe.

Professional installation is recommended. Loosely position both pipes and all clamps before final tightening, then check clearance around the frame, crossmembers, driveshaft, wiring, and brake lines. Corroded factory hardware or a previously modified exhaust may require cutting tools or additional shop equipment. Recheck pipe alignment and clamp tightness after the first complete heat cycle.

Vehicle Fitment

This kit features a 100% direct-fit design utilizing your truck's factory hanger locations. No complex welding or permanent modifications required:

2003.5-2007 Ford F-250 / F-350 Super Duty (6.0L Powerstroke Turbo Diesel)

Frequently Asked Questions

Q: Will this cat and muffler delete pipe fit my 2005 Ford 6.0L Powerstroke?

A: It is designed for 2003–2007 Ford F-250 and F-350 Super Duty pickup trucks equipped with the 6.0L Powerstroke diesel engine and the factory-style 3.5-inch exhaust. Verify your model year, engine, cab and bed configuration, and current exhaust diameter before ordering.

Q: Does this kit replace both the catalytic converter and muffler?

A: Yes. This 6.0 Powerstroke cat delete pipe kit includes one CAT replacement pipe and one muffler replacement pipe. It is a mid-section replacement kit, not a complete turbo-back exhaust.

Q: Does this kit fit an F-450, F-550, Excursion, E-Series van, or cab-and-chassis truck?

A: Fitment for those applications is not guaranteed. Their wheelbases, exhaust routing, hangers, and chassis layouts may differ from an F-250 or F-350 pickup. Contact SPEtuner with your VIN, wheelbase, cab and bed configuration, and photos of the existing exhaust before purchasing.

Q: Will it connect to my factory 3.5-inch exhaust?

A: Yes. This kit is intended to replace the factory catalytic-converter and muffler sections while retaining the original downpipe and tailpipe. It is not a direct-fit adapter for an aftermarket 4-inch or 5-inch exhaust system.

Q: Does a 2003–2007 6.0L Powerstroke have a DPF or require a DPF delete?

A: No. These 6.0L Powerstroke trucks predate the factory diesel particulate filter used on later Super Duty models. This product replaces the catalytic converter and muffler sections; it is not a DPF delete pipe.

Q: Is an aftermarket tuner required after installing this pipe?

A: A tuner is generally not required solely to replace the catalytic converter and muffler sections on an otherwise stock 6.0L Powerstroke. The truck should still be checked for existing modifications, stored trouble codes, and mechanical problems before installation. Custom tuning may be used separately, but it is not included with this kit.

Q: Will removing the catalytic converter turn on the check engine light?

A: Many 2003–2007 6.0L Powerstroke pickup configurations do not monitor the catalytic converter like later DPF-equipped trucks, so this modification does not normally require a DPF-style tune. However, emissions equipment and sensor layouts can vary, so inspect your original exhaust for sensors before removal. Existing engine or turbo problems can still trigger diagnostic codes.

Q: How loud will the truck be with both the catalytic converter and muffler removed?

A: Expect a substantially louder, deeper exhaust note and a more noticeable turbo whistle, especially during acceleration and towing. Highway drone varies with cab style, bed length, engine load, speed, and the rest of the exhaust system. Buyers who want a quieter daily driver should consider retaining a muffler or adding a resonator.

Q: Will this pipe lower EGTs, increase horsepower, or improve fuel economy?

A: Reducing a restrictive or damaged exhaust section can improve exhaust flow and may help turbo response and exhaust-gas temperatures under load. Actual horsepower, EGT, and fuel-economy changes depend on the truck’s condition, tune, injectors, turbo system, driving style, and towing load, so specific gains are not guaranteed.

Q: Can this kit fix low boost, high EGTs, or poor acceleration?

A: It may help if a clogged or collapsed catalytic converter is causing excessive backpressure, but it will not repair unrelated 6.0L problems such as boost leaks, damaged up-pipes, a sticking turbo, low fuel pressure, injector faults, or EGR-system issues. Diagnose the truck before assuming the factory exhaust is the cause.

Q: Does installation require cutting or welding?

A: The pipes are designed for a clamped installation in place of the original catalytic converter and muffler sections, so welding is not normally required. Cutting may be necessary if the factory exhaust is one piece, rusted together, previously modified, or cannot be separated at the original joints.

Q: What commonly makes installation more difficult?

A: Rusted clamps, seized fasteners, distorted factory joints, and previous exhaust repairs are the most common obstacles. Penetrating oil, an exhaust pipe cutter, a hanger-removal tool, eye protection, and safe lifting equipment are recommended. Loosely position every pipe and clamp before final tightening so the exhaust clears the frame, driveshaft, and body.

Q: What is included with the kit?

A: The package includes one catalytic-converter replacement pipe, one muffler replacement pipe, three exhaust clamps, and two bolts with nuts. It retains the truck’s existing downpipe, tailpipe, and factory hanger locations. Replacement gaskets, hangers, sensors, and exhaust tips are not listed as included.

Q: What should I check after installation?

A: Start the truck and check every joint for exhaust leaks, soot marks, rattles, or contact with the frame and body. After the first complete heat cycle, allow the exhaust to cool and retighten the clamps. Recheck the system periodically, particularly after towing or driving on rough roads.

Q: Is this cat and muffler delete pipe legal for street use?

A: Removing a factory catalytic converter may violate federal, state, provincial, or local emissions and inspection requirements. This product is intended only for lawful off-road or competition applications where permitted. Check the rules for the location where the truck will be registered and operated before purchasing or installing it.
