2007.5–2009 6.7 Cummins Problems: Common Issues, Symptoms and Fixes

Last reviewed: September 21, 2026 | Applies primarily to 2007.5–2009 Dodge Ram 2500 and 3500 pickups equipped with the 6.7L Cummins diesel.

Confirm your engine before ordering parts: The 2007 model year included both 5.9L and 6.7L Cummins-powered trucks. The later version is commonly called the 2007.5 6.7L. Check the VIN, underhood emissions label and engine identification before assuming a calendar-year 2007 truck has the 6.7L. See how to identify whether a 2007 Cummins is a 5.9L or 6.7L.

This guide focuses primarily on Dodge Ram 2500 and 3500 pickups. Pickup and Chassis Cab trucks can differ in calibration, emissions hardware and service procedures. Always confirm fitment using the VIN, build date and emissions label. Owners comparing vehicle-specific maintenance and upgrade options can also review the 2007.5–2009 6.7L Cummins parts collection.

Common 2007.5–2009 6.7 Cummins Problems at a Glance

These symptoms frequently overlap. A restricted DPF can make the turbo appear weak, while a leaking intercooler connection can create low-boost symptoms that resemble a failed turbo. Coolant loss may come from the EGR cooler, radiator cap, hose, water pump or head gasket. The failed system should be isolated before parts are replaced.

1. DPF Restriction and Frequent Regeneration

The early 6.7L introduced a diesel particulate filter as part of its factory emissions system. The DPF captures soot and periodically raises exhaust temperature to burn that soot during regeneration. Repeated short trips, extended idling, interrupted regeneration and unresolved engine faults can prevent this process from completing normally.

Common DPF Symptoms

• Regeneration occurs more frequently than normal.
• Fuel economy decreases without an obvious change in load or driving conditions.
• The EVIC displays an exhaust-system or particulate-filter warning.
• The truck loses power or enters a reduced-power mode.
• The check-engine light appears with DPF or exhaust-temperature codes.
• The engine oil level rises because repeated regeneration attempts allow fuel dilution.
• In severe cases, the truck may produce black smoke, refuse regeneration or become difficult to start.

Chrysler service information for these trucks discusses codes including P1451, P200C, P242F and P2463 in connection with particulate-filter loading or regeneration concerns. However, a DPF code does not prove the filter itself is the only failed part. Incorrect exhaust-temperature readings, damaged differential-pressure sensor tubes, wiring problems, excessive soot production or another engine fault may be the underlying cause.

What Should Be Checked First?

1. Retrieve all active, pending and stored fault codes.
2. Review calculated soot load and DPF differential pressure at idle and under load.
3. Check whether the exhaust-temperature sensors respond logically as the engine warms up.
4. Inspect sensor tubes, exhaust connections and wiring for leaks, restriction or damage.
5. Check the engine oil level and smell for possible fuel dilution.
6. Identify the engine fault producing excessive soot before cleaning or replacing the filter.

DPF Repair Approach

If the soot load is within the allowable range and no blocking fault is present, the factory regeneration procedure may restore normal operation. A heavily loaded system may require a technician-controlled stationary regeneration, professional off-vehicle cleaning or DPF replacement.

Cleaning or replacing the DPF without correcting a failed injector, EGR fault, boost leak, temperature-sensor problem or unsuitable operating pattern will often result in another restriction.

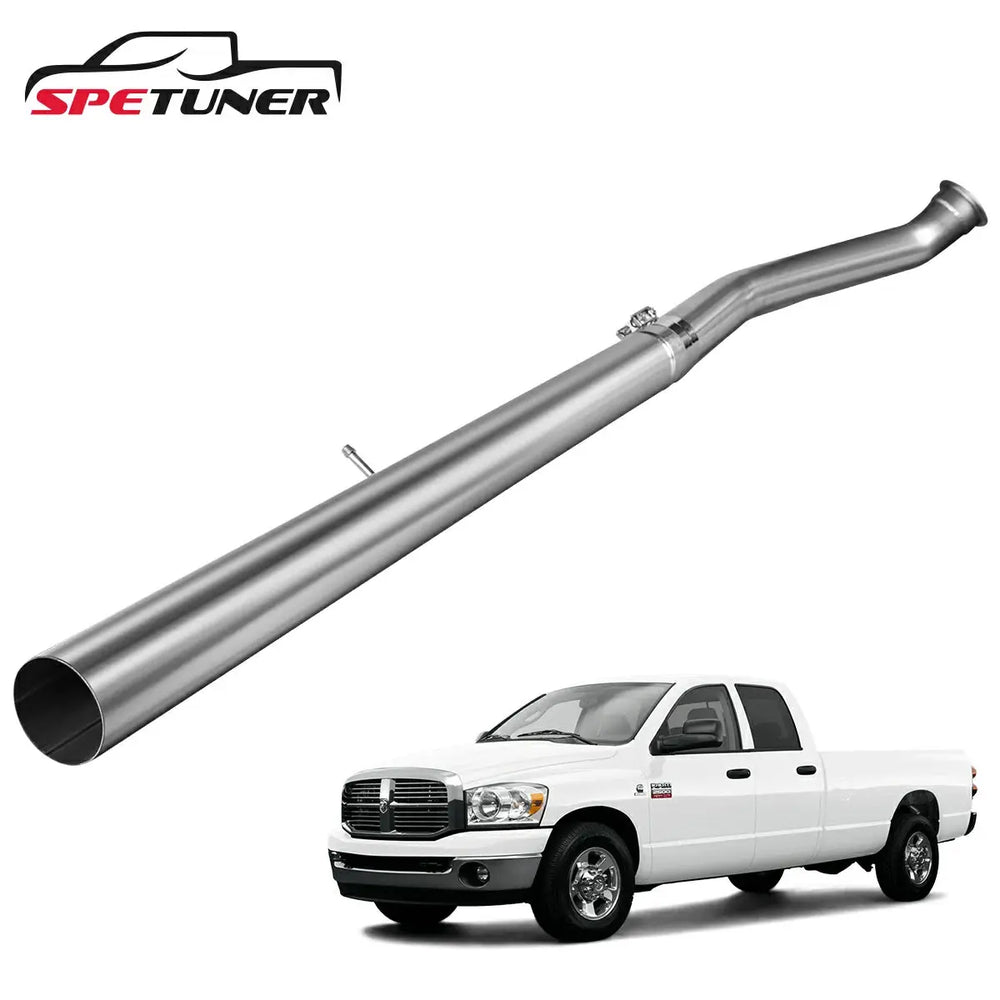

For a dedicated competition vehicle that is not registered or operated on public roads, owners comparing exhaust configurations can review this 2007–2009 6.7L Cummins DPF race pipe. A race pipe is not a repair for an undiagnosed engine fault and may require compatible off-road calibration. Confirm vehicle fitment and applicable emissions regulations before purchase or installation.

2. EGR Valve, Cooler and Intake-Soot Problems

The 2007.5–2009 6.7L Cummins uses cooled exhaust gas recirculation. Exhaust gas passes through a cooler and returns to the intake under selected operating conditions. Oil vapor from the crankcase ventilation system can mix with EGR soot and gradually form deposits in the EGR valve, intake horn and related passages.

Possible EGR-Related Symptoms

• Rough or unstable idle
• Hesitation or slow throttle response
• Reduced fuel economy
• Excessive soot and more frequent DPF regeneration
• EGR flow or valve-position fault codes
• Unexplained coolant loss
• White vapor or a sweet exhaust smell if the cooler leaks internally

Diagnose Before Replacing Parts

A technician can compare commanded EGR position with actual position, inspect the intake tract for excessive deposits and pressure-test the cooler for leakage. Coolant loss should not immediately be classified as head-gasket failure. An EGR cooler, radiator cap, hose, water pump or another external leak can create similar symptoms.

Where cleaning is appropriate, the valve and accessible intake passages should be cleaned without allowing loose carbon or solvent to enter the cylinders. A leaking cooler or electrically failed valve normally requires replacement rather than cleaning.

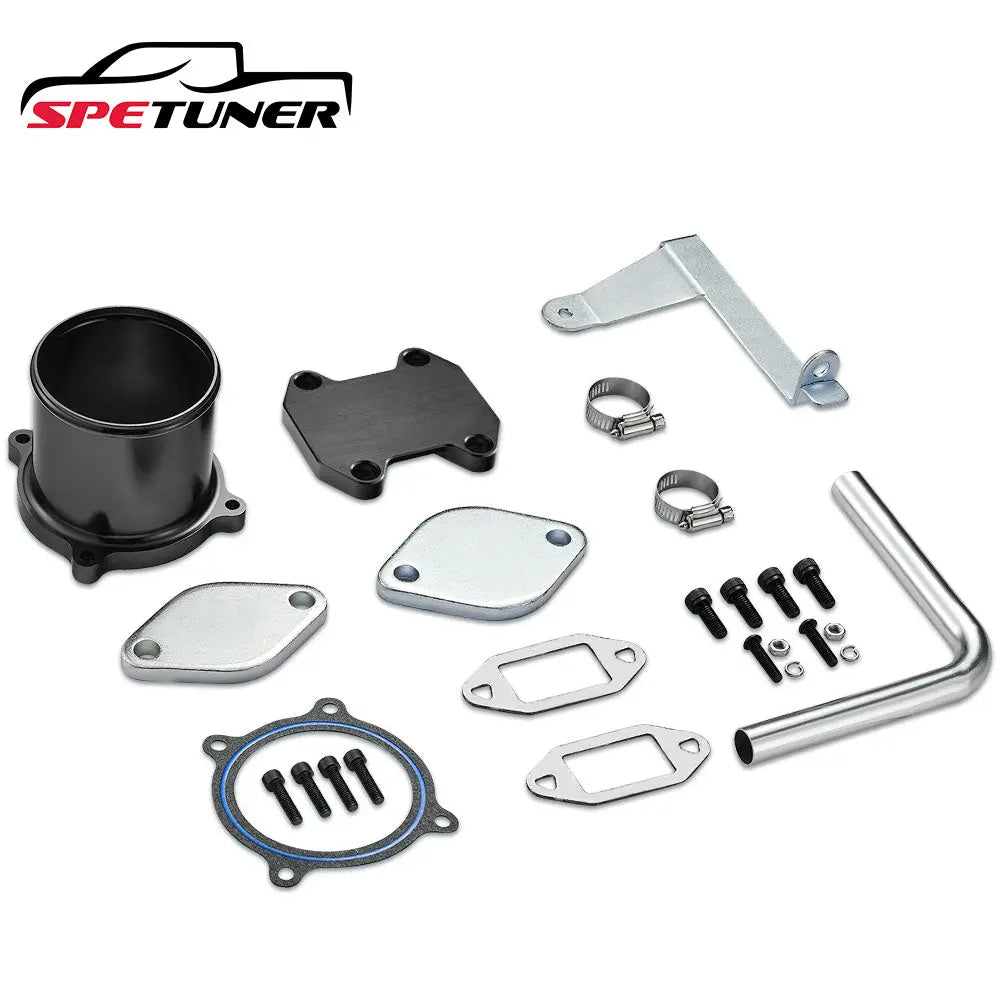

For a dedicated off-road or competition build where emissions-system removal is lawful, a vehicle-specific 2007–2009 6.7L Cummins EGR delete kit provides the application-specific block-off hardware. It should not be used as a substitute for diagnosing coolant loss, overheating or an existing intake problem. Verify the engine, calibration requirements and local regulations first.

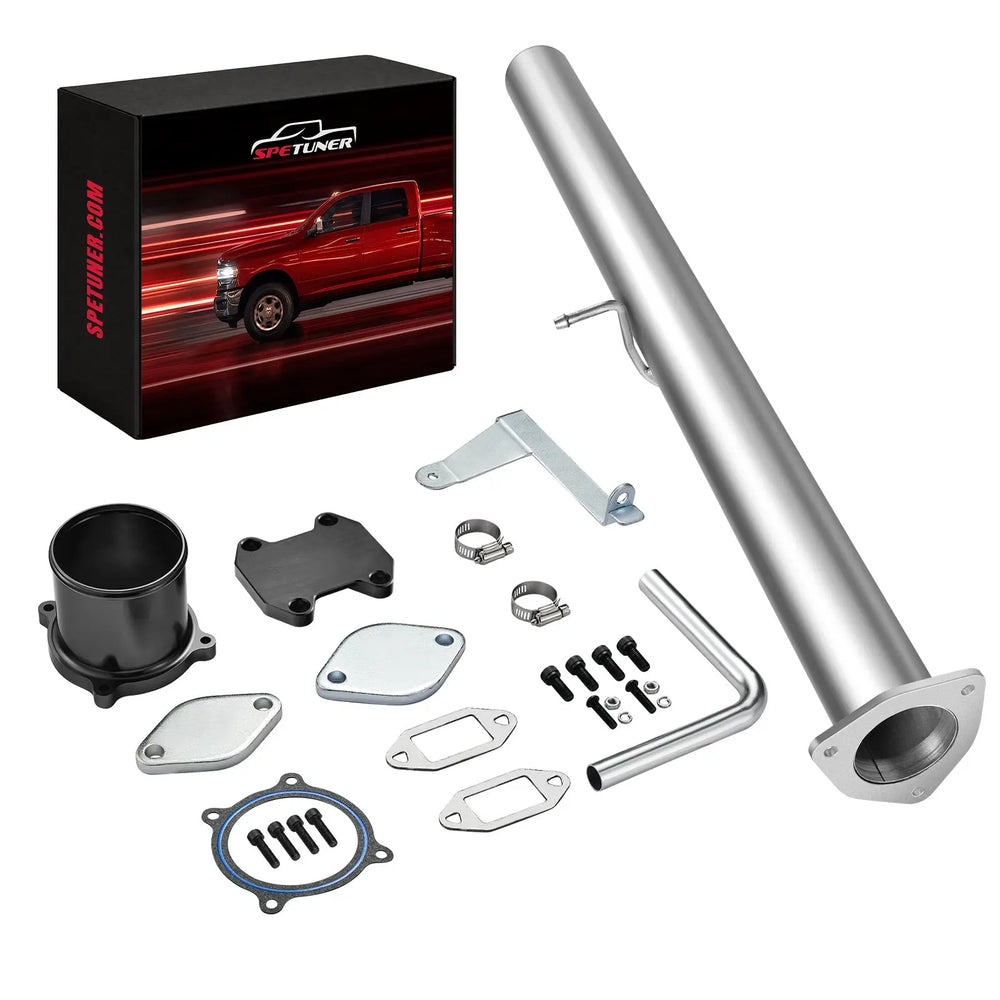

3. Individual Components vs. Combined DPF and EGR Packages

DPF and EGR symptoms often interact, but an owner should not assume that every truck needs the same parts. A standalone component may be appropriate when only one section of a dedicated competition build is being configured. A combined package may be more practical when the truck requires coordinated exhaust hardware, EGR hardware and compatible off-road calibration.

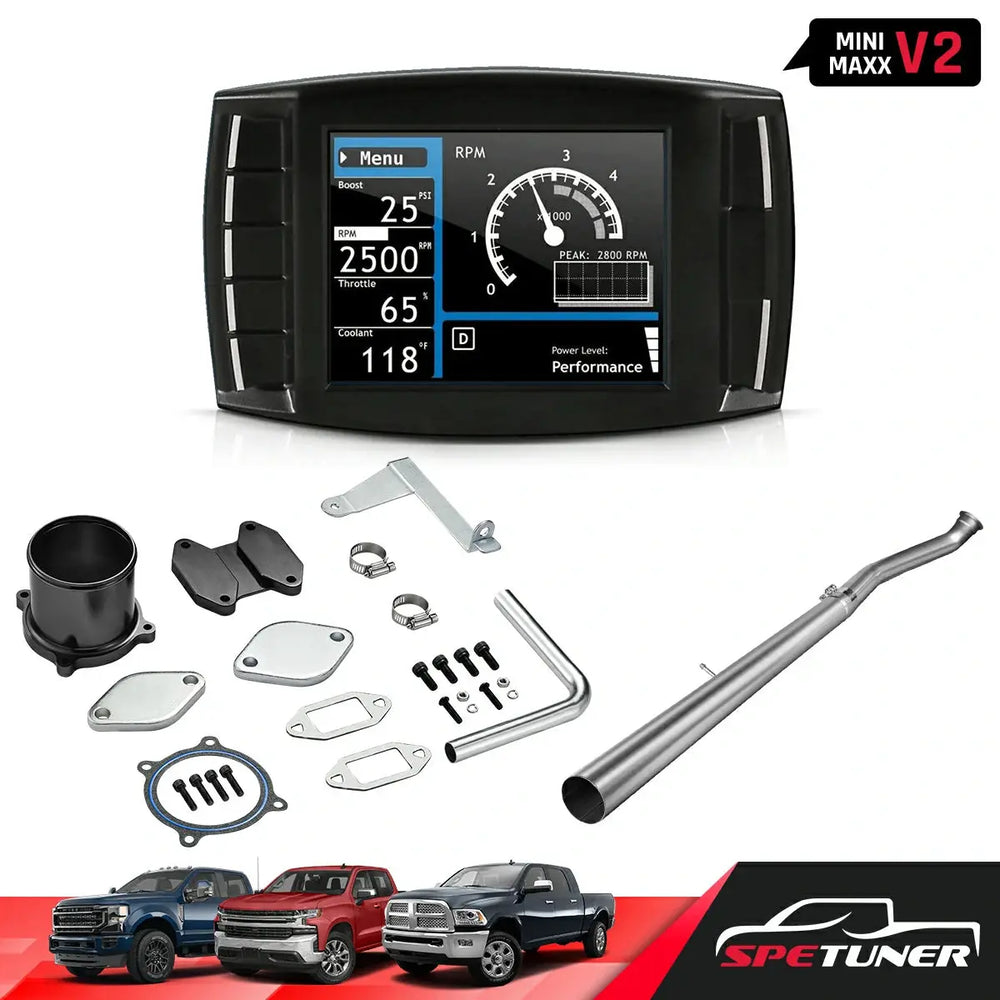

Owners building a non-road competition truck from the beginning can compare the 2007.5–2009 6.7L Cummins all-in-one delete package, which combines multiple application-specific components and tuner options. It is listed for Ram 2500 and 3500 pickups and does not fit Cab & Chassis applications.

For owners comparing combined EGR and exhaust hardware configurations, the 2007.5–2009 Cummins EGR/DPF delete kit offers selectable component combinations for compatible Ram 2500 and 3500 competition vehicles. Check the selected variant carefully because pipe configuration, EGR hardware and tuning requirements can differ.

4. VGT Turbo and Actuator Problems

The factory variable-geometry turbocharger changes vane position to control boost and exhaust backpressure. It also supports the factory exhaust-brake function. Heat and soot can restrict vane movement, while the actuator, wiring or position-feedback system can develop faults.

Symptoms Commonly Blamed on the Turbo

• Slow turbo response or reduced low-RPM torque
• Low-boost or overboost codes
• Loss of exhaust-brake performance
• Intermittent changes in engine power
• Unusual whistle, scraping or siren-like noise
• Excessive smoke during acceleration
• Actuator communication or position codes

Do not replace the complete turbocharger based only on low boost. A split intercooler boot, loose clamp, intake restriction, exhaust leak, restricted DPF, faulty pressure sensor or wiring problem can produce the same result.

Recommended Diagnostic Sequence

1. Read turbo, exhaust-pressure and aftertreatment fault codes.
2. Compare commanded vane position with actual vane position.
3. Run the appropriate actuator sweep or calibration test.
4. Inspect the intake, charge pipes, intercooler and exhaust system for leaks.
5. Check DPF backpressure before condemning the turbo.
6. Inspect the compressor wheel for damage or excessive shaft movement when mechanical failure is suspected.

If the actuator is faulty but the turbocharger is mechanically healthy, an actuator repair may be possible. Actuator installation and calibration requirements must be followed. If the vanes are seized, the bearings are damaged or the housings are cracked, turbocharger service or replacement may be necessary.

5. Injector, Fuel-Pressure and Hard-Starting Problems

Hard starting and rough running are often described as injector problems, but injector replacement should not be the first step. The high-pressure common-rail system depends on clean fuel, correct filtration, adequate supply pressure, reliable sensors and acceptable injector return flow.

Possible Fuel-System Symptoms

• Long cranking time, especially when hot
• Rough idle or cylinder imbalance
• White, gray or black smoke
• Unusual combustion knock
• Loss of power under load
• Fuel-rail-pressure codes
• Rising engine oil level caused by fuel contamination

What Should Be Tested?

Begin with fuel quality and maintenance history. Drain and inspect the water separator, confirm that the correct filter is installed and check for air entering the low-pressure side. Compare commanded and actual rail pressure while cranking and under load. If the results indicate excessive leakage, perform injector return-flow or balance testing before deciding which components require replacement.

The factory manual emphasizes correct filtration and water separation because contaminated fuel can severely shorten high-pressure fuel-system life. Avoid filters that do not provide the required filtration efficiency and water-separation performance.

6. Cooling-System Pressure, Overheating and Head-Gasket Symptoms

Head-gasket failure is frequently mentioned in discussions about modified or heavily worked 6.7L Cummins trucks, but it should not be assumed every time coolant disappears. Cooling-system, EGR-cooler and combustion-leak symptoms can overlap.

Warning Signs Requiring Prompt Diagnosis

• Repeated coolant loss with no obvious external leak
• Coolant pushed into or out of the overflow bottle
• Rapid cooling-system pressure after a cold start
• An unusually hard upper radiator hose soon after startup
• Overheating under load or while towing
• White exhaust vapor after the engine is fully warm
• Cabin heat that repeatedly changes from hot to cold

How to Separate the Possible Causes

1. Inspect the radiator, cap, hoses, reservoir, heater circuit and water pump for external leakage.
2. Pressure-test the cooling system when cold and at operating temperature.
3. Test for combustion gas in the cooling system.
4. Evaluate the EGR cooler for internal leakage.
5. Use cylinder leak-down testing or other mechanical tests if combustion leakage remains likely.

A few bubbles in the reservoir are not enough to diagnose a failed head gasket. Conversely, repeated pressure buildup, coolant displacement and positive combustion-gas test results should not be ignored.

Overheating, aggressive tuning and excessive cylinder pressure can increase head-gasket risk. If the engine has been modified, the technician should understand the calibration, boost level, towing history and any previous overheating event before recommending a repair.

7. CCV Filter Restriction and Crankcase Pressure

The factory closed crankcase ventilation system separates oil mist from blow-by gas before routing the gas back into the intake. Its coalescing filter is a service item. When the filter becomes restricted, crankcase pressure may increase and contribute to oil seepage or other problems.

Possible CCV Symptoms

• New oil seepage around seals or gaskets
• Oil residue inside intake plumbing
• Crankcase-pressure fault codes
• Increased oil consumption
• Unusual whistling or pressure at the oil-fill opening
• A persistent oily odor around the engine compartment

Review the truck's CCV filter service history before assuming an engine seal has failed. Inspect the filter, housing, hoses and crankcase-pressure sensor. Measure actual crankcase pressure if symptoms continue. Excessive blow-by after installing a known-good filter may indicate an internal engine condition requiring further testing.

For more diagnostic information, see the 6.7 Cummins CCV filter and oil-leak guide.

8. Intercooler Boots, Charge Pipes and Boost Leaks

A charge-air leak is one of the most important lower-cost problems to rule out before replacing a turbocharger. Boots can loosen, split or become contaminated with oil. Charge pipes and intercooler end tanks can also develop leaks.

Common Boost-Leak Symptoms

• Hissing or rushing-air noise during acceleration
• Oily mist around a boot, clamp or pipe connection
• Reduced boost and slower acceleration
• Black smoke under load
• Higher exhaust-gas temperature
• P0299 or another underboost-related code

Visually inspect every boot and clamp, but do not rely on appearance alone. Pressure-testing or smoke-testing the entire charge-air system is more reliable. Repair the leak and confirm boost operation before condemning the VGT turbo or actuator.

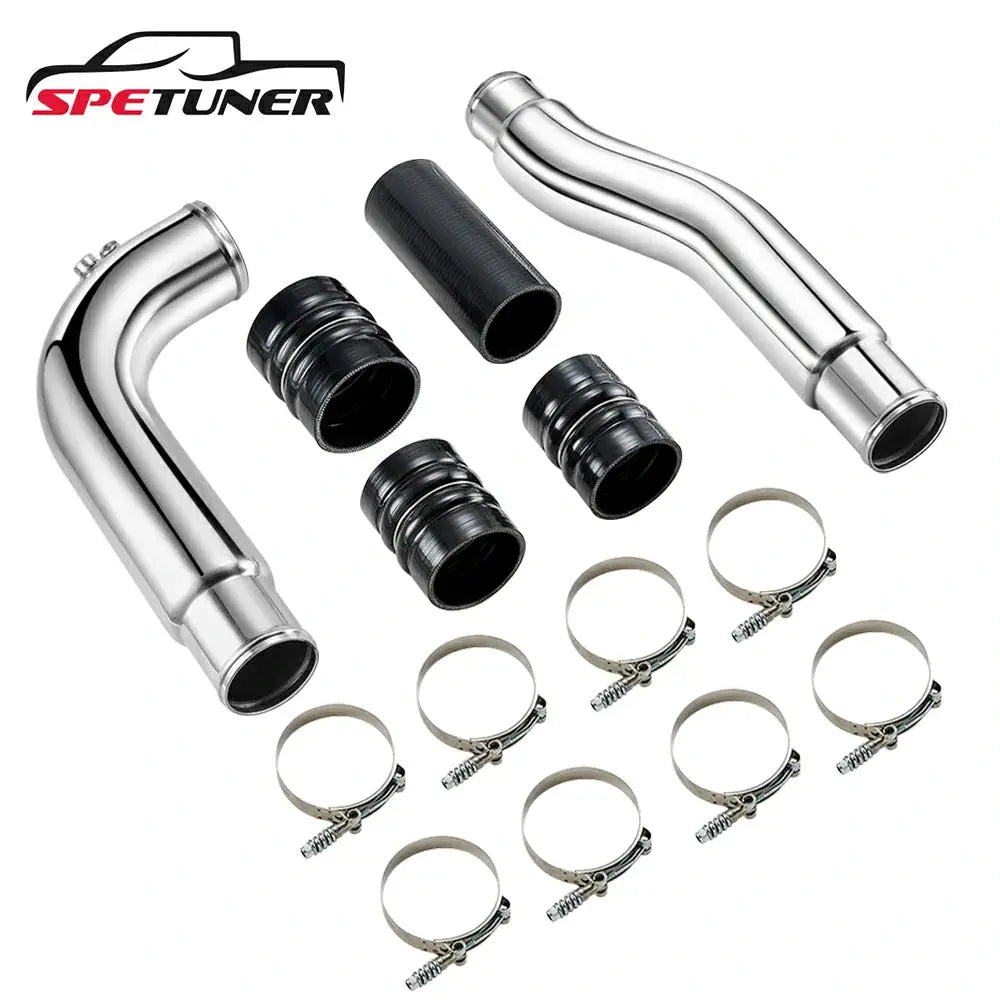

If testing confirms that a factory charge pipe is damaged or no longer sealing correctly, verify the truck's exact configuration before selecting an intercooler pipe kit for the 2007–2009 6.7L Cummins.

2007.5 vs. 2008 vs. 2009 6.7 Cummins Problems

2007.5 6.7 Cummins

The 2007.5 truck marks the transition from the 5.9L to the 6.7L in the pickup lineup. Because both engines appear under the 2007 model year, identification is essential before buying filters, sensors, turbo components or emissions parts. On an early truck, review whether factory software updates and previous emissions-system repairs were completed correctly.

2008 6.7 Cummins

The 2008 model retains the same basic combination of cooled EGR, DPF aftertreatment, common-rail injection and variable-geometry turbocharging. Vehicle condition, duty cycle and maintenance history normally matter more than the model-year badge alone. A truck used for repeated short trips may have more soot-related problems than a higher-mileage truck that regularly reached full operating temperature.

2009 6.7 Cummins

The 2009 model remains part of the early 6.7L generation and should be checked for the same DPF, EGR, turbo, fuel-system and CCV concerns. Do not assume that a later build date eliminates these issues. Compare service records, scan data and physical condition.

Used 2007.5–2009 6.7 Cummins Buying Checklist

1. Start with a cold engine. Ask the seller not to warm the truck before inspection. Watch cranking time, smoke, idle quality and oil-pressure response.
2. Scan every control module. Review active, pending and permanent codes. Recently cleared monitors can be as important as an illuminated warning light.
3. Review DPF data. Check calculated soot load, differential pressure, regeneration history and exhaust-temperature sensor readings.
4. Inspect the cooling system cold. Check coolant level, stains, hose condition and reservoir contamination before opening the cap.
5. Look for crankcase pressure and oil leaks. Ask when the CCV filter was last serviced and examine the intake plumbing for excessive oil.
6. Test turbo and exhaust-brake operation. Boost should build smoothly, and the exhaust brake should operate consistently without actuator faults.
7. Inspect the charge-air system. Look for loose clamps, split boots, oily spray patterns and damaged intercooler connections.
8. Check fuel-service records. Confirm regular fuel-filter replacement and ask about water contamination, injector work or hard-start complaints.
9. Inspect modifications carefully. Identify the tuner, calibration, turbo, fuel-system and emissions changes. Poorly documented modifications increase diagnostic uncertainty.
10. Verify recalls by VIN. Recall eligibility depends on the individual vehicle, not merely the model year and engine.
11. Arrange an independent inspection. A diesel technician with the correct scan tool can identify problems that may not appear during a short test drive.

Preventive Maintenance and Repair Priorities

Stop Driving and Diagnose Immediately If:

• The engine overheats or repeatedly forces coolant from the reservoir.
• Oil pressure is low or the engine develops a severe mechanical knock.
• The engine oil level rises rapidly or smells strongly of diesel fuel.
• A fuel leak, uncontrolled smoke or turbocharger contact noise appears.
• The truck displays a severe exhaust-system warning or enters derate.

Schedule Diagnosis Soon If:

• Regeneration becomes noticeably more frequent.
• Coolant disappears without an obvious external leak.
• The exhaust brake becomes intermittent.
• Boost falls, smoke increases or a hissing sound develops.
• Cold- or hot-starting time increases.
• Oil leaks appear around multiple seals or gaskets.

Routine Ownership Priorities

• Use the oil specification and viscosity required by the applicable owner manual and operating temperature.
• Use a correctly rated fuel filter with effective water separation.
• Service the CCV filter according to the applicable maintenance schedule.
• Keep batteries, grounds and charging-system connections healthy.
• Inspect charge-air boots and clamps regularly, especially before heavy towing.
• Do not ignore repeated regeneration or a rising engine-oil level.
• Follow the proper valve-lash inspection schedule.
• Confirm available factory calibration updates with a qualified service provider.

Exact maintenance intervals vary by model, application, duty cycle and operating conditions. Use the maintenance schedule associated with the truck's VIN and original manual rather than applying one generic interval to every 6.7L Cummins.

Is a 2007.5–2009 6.7 Cummins Worth Buying?

Yes—provided the truck has been maintained, correctly diagnosed and realistically priced for its condition. The 6.7L Cummins offers strong low-speed torque and a durable basic engine design. You can compare factory output in the 6.7 Cummins horsepower and torque guide.

The biggest ownership risk is not mileage alone. It is an unknown repair history combined with incomplete diagnostics. A truck with documented maintenance, stable cooling pressure, normal fuel-rail pressure, a functioning turbo system and credible DPF data can be a better purchase than a lower-mileage truck with recently cleared codes and undocumented modifications.

FAQ

Q1: What is the most common problem on a 2007.5–2009 6.7 Cummins?

A1: Soot and aftertreatment complaints are among the best-known early 6.7L Cummins problems. They may appear as frequent regeneration, DPF fault codes, reduced fuel economy or loss of power. The DPF may be reacting to another engine or sensor fault rather than failing by itself.

Q2: Is a 2007 Cummins a 5.9L or a 6.7L?

A2: It can be either. Earlier 2007 pickups used the 5.9L Cummins, while the later 2007.5 version introduced the 6.7L. Verify the VIN and underhood emissions label before ordering parts.

Q3: Does a 2007.5–2009 Ram 6.7 Cummins use DEF?

A3: The 2007.5–2009 pickup configuration did not use the later factory DEF/SCR system. It did use cooled EGR and a diesel particulate filter. Confirm the original configuration on Chassis Cab or previously modified vehicles.

Q4: How can I tell if my 6.7 Cummins DPF is plugged?

A4: Possible signs include frequent regeneration, filter warnings, reduced power and codes such as P242F or P2463. Confirm the condition with soot-load data, differential pressure and exhaust-temperature readings rather than symptoms alone.

Q5: How do I know whether the turbo or actuator is bad?

A5: Compare commanded and actual vane position, run the actuator test and inspect the charge-air system, DPF pressure, sensors and wiring. A boost leak or excessive exhaust restriction can imitate a failed turbo or actuator.

Q6: Are head-gasket problems common on early 6.7 Cummins engines?

A6: Head-gasket failure is possible, particularly after overheating or on aggressively tuned engines, but coolant loss does not automatically mean the gasket has failed. Test the EGR cooler, cooling system and combustion-gas level before removing the cylinder head.

Q7: Can a clogged CCV filter cause an oil leak?

A7: A restricted CCV filter can raise crankcase pressure and contribute to oil seepage. Replace an overdue filter and verify crankcase pressure, but continue diagnosis if excessive blow-by or leakage remains.

Q8: How many miles can a 2007.5–2009 6.7 Cummins last?

A8: There is no guaranteed mileage. Engine life depends on maintenance, fuel quality, operating temperature, load, tuning and how quickly developing faults are repaired. Service history and current diagnostic data are more useful than mileage alone.

Final Takeaway

The early 6.7L Cummins is not a bad engine, but it introduced several systems that require more disciplined diagnosis than the earlier 5.9L. Start with scan data and basic inspections. Rule out filters, wiring, sensors, pressure leaks and overdue maintenance before authorizing a turbocharger, injector set or head-gasket repair.

When evaluating a used truck, prioritize cooling-system stability, fuel-system data, DPF condition, turbo operation and maintenance documentation. Those checks provide a more accurate picture of reliability than the model year or odometer reading alone.

References

• Cummins Inc.: "EPA 2007 ISB engine technology overview covering cooled EGR, variable-geometry turbocharging, crankcase ventilation and particulate-filter systems." Available from Cummins.
• FCA US LLC / Mopar: "2008 Dodge Ram Owner's Manual covering diesel-engine oil, fuel filtration, water separation and vehicle maintenance information." Available from Mopar.
• FCA US LLC / Mopar: "2009 Dodge Ram Diesel Supplement covering diesel fuel, emissions equipment and crankcase ventilation maintenance." Available from Mopar.
• National Highway Traffic Safety Administration: "Chrysler technical service information addressing DPF loading, regeneration procedures and diagnostic trouble codes on 2007–2009 6.7L Cummins trucks." Available from NHTSA.
• National Highway Traffic Safety Administration: "VIN-specific vehicle safety recall lookup." Available from NHTSA.

This article provides general troubleshooting information and is not a substitute for factory service information or an in-person diagnosis. Specifications and procedures may vary by VIN, calibration, vehicle application and local regulation.
