4" DPF Turbo-Back Pipe Installation Guide for 2010-2012 Dodge Ram 6.7 Cummins

A 4-inch turbo-back installation on a 2010–2012 Ram 6.7 Cummins is easier when you work from the turbo toward the tailpipe. The key is to leave each connection loose until the full system is aligned. Tightening the front pipes too early can make the rear section hard to position.

Rusty clamps, tight clearances, and heavy factory exhaust parts are the main challenges. Give yourself enough working room, support each exhaust section before releasing it, and never work under a truck held up by a jack alone.

Legal and Safety Notice

Removing or changing factory emissions equipment may violate federal, state, provincial, or local law. It may also affect registration, inspection eligibility, and warranty coverage. Parts intended for emissions removal should only be used on lawful off-road, competition, export, or otherwise exempt vehicles. Confirm the rules that apply to your truck before ordering or installing any part.

Allow the exhaust to cool fully before starting. Disconnect both negative battery cables, park on a firm and level surface, and use rated ramps or jack stands if you need more room. Wear eye protection and gloves, especially when cutting or working below rusty exhaust parts.

Confirm Truck and Exhaust Fitment First

This guide covers standard 2010–2012 Ram 2500 and Ram 3500 pickups equipped with the 6.7L Cummins diesel engine. Do not rely on the model year alone. Check the cab, bed, wheelbase, exhaust layout, previous modifications, and product listing before removing the factory system.

You can compare compatible exhaust, tuning, and supporting options in the 2010–2012 Ram 6.7 Cummins collection. Match the exact product variant to your truck before beginning the installation.

What the Turbo-Back System Changes

A turbo-back system replaces the exhaust path starting near the turbo outlet and continuing toward the rear of the truck. Depending on the selected product variant, the system may include a turbo pipe, race pipe, wheelbase extension, muffler, over-axle pipe, and tailpipe.

A 4-inch turbo-back system creates a less restrictive exhaust path. It can improve exhaust flow, support quicker turbo spool, improve engine efficiency, and give the truck a louder, deeper exhaust tone.

Removing the factory DPF may also improve fuel economy by about 1–3 MPG. Actual results can vary with the tune, engine condition, load, tires, gearing, driving habits, and complete truck setup.

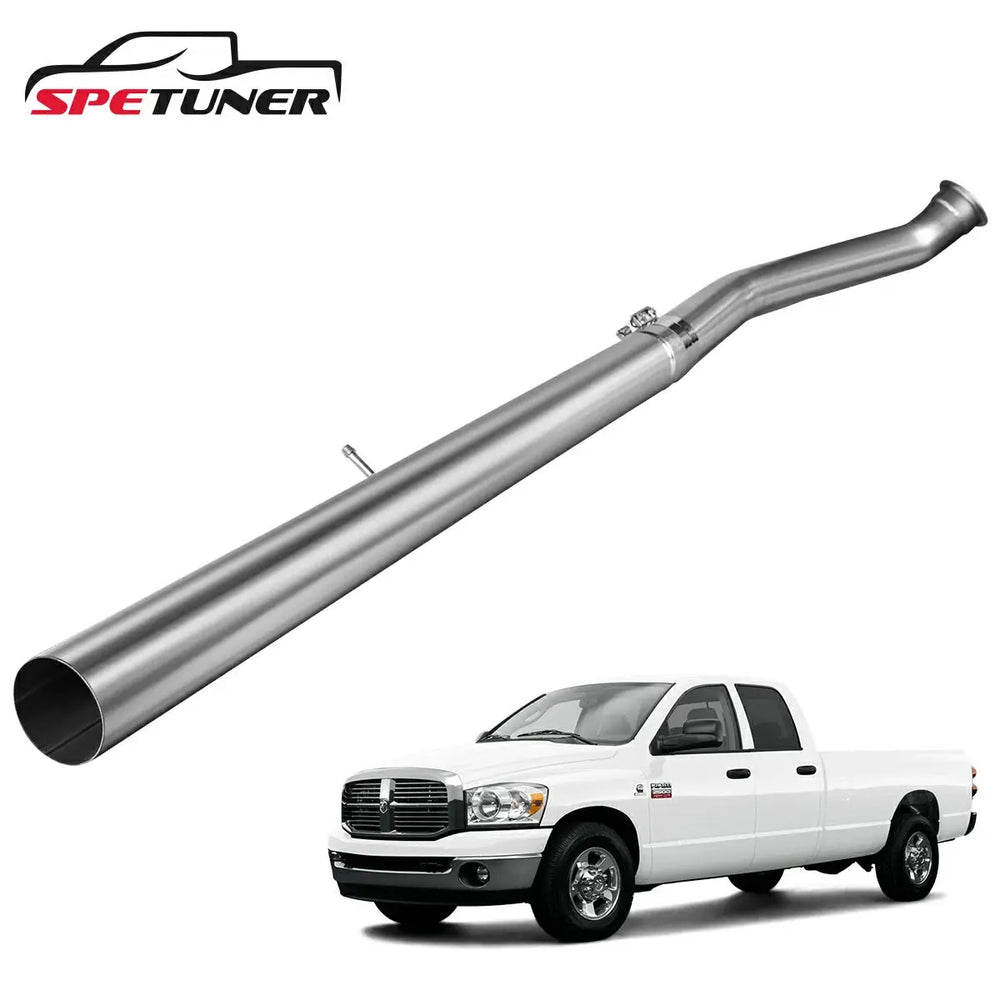

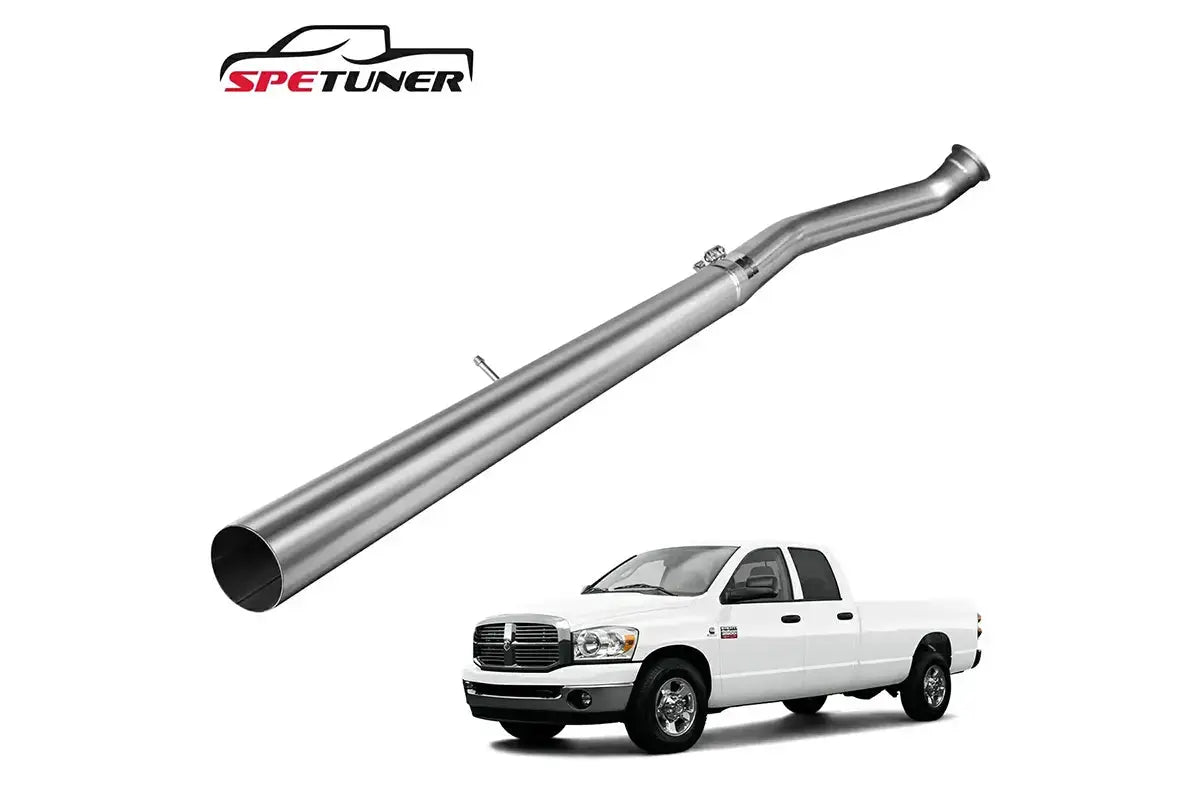

For a pipe-focused setup, review the 2010–2012 6.7 Cummins DPF delete race pipe. Select the correct 4-inch variant and confirm whether your order is a DPF section or a complete turbo-back configuration.

Tools and Equipment

Basic Hand Tools

• Metric and standard socket set
• Ratchet, extensions, and combination wrenches
• Flathead screwdriver
• Pry bar or exhaust-hanger removal pliers
• Penetrating oil
• Torque wrench
• Marker or paint pen for alignment marks

Cutting Tools That May Be Needed

• Reciprocating saw with metal-cutting blades
• Exhaust pipe cutter or hacksaw
• Cutting wheel where safe access allows
• File or deburring tool

Safety and Support Equipment

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Rated ramps or jack stands
• Transmission support if the transmission crossmember must be lowered
• A helper for long or heavy exhaust sections

Pre-Installation Checklist

1. Confirm that the truck and ordered variant match.
2. Lay out every pipe, clamp, hanger, bolt, and extension on the floor.
3. Compare the received parts with the product packing list.
4. Inspect each pipe end for shipping damage or dents.
5. Test-fit the clamps over the pipe joints before getting under the truck.
6. Apply penetrating oil to the turbo clamp, exhaust clamps, bolts, and rubber hangers.
7. Confirm the tuning plan before removing monitored emissions hardware.
8. Keep the removed factory parts in a safe place in case the truck must be returned to its original configuration.

2010–2012 6.7 Cummins Turbo-Back Pipe Installation Steps

Step 1: Disconnect Power and Support the Truck

Park the truck on a flat surface, set the parking brake, and chock the wheels. Let the exhaust cool. Disconnect both negative battery cables before unplugging factory exhaust connections.

Raise the truck only if more room is needed. Set it on rated ramps or jack stands at approved lifting points. Shake the truck lightly to confirm it is stable before working underneath it.

Step 2: Remove the Turbo Band Clamp

Find the band clamp that secures the factory downpipe at the turbo connection. Loosen the clamp bolt far enough to release its latch.

Use a flathead screwdriver to work the clamp away from the flange at several points. Do not bend or damage it. Remove the clamp and keep it because the installation instructions call for reusing it with the new turbo pipe.

Step 3: Disconnect the Factory Exhaust Connections

Trace the factory exhaust from front to rear. Label and disconnect the electrical connectors, pressure lines, and other attached lines that must be moved before the exhaust can come out.

Remove the flange hardware and loosen the factory exhaust clamps. Support each section before removing the final fastener. Do not let the weight of the exhaust pull on wiring, hoses, or sensor leads.

Follow the instructions supplied with the exact product and tuner when handling unused factory connections. Do not cut wiring or force a connector to fit where it does not belong.

Step 4: Remove or Cut the Factory Downpipe

The supplied instructions allow the factory downpipe to be cut near the transmission to make removal easier. Before cutting, inspect every side of the pipe for wiring, brake lines, fuel lines, hoses, and heat shields. Place a shield between the saw and nearby components when possible.

If you want to keep the factory downpipe intact, the instructions state that the transmission support plate may need to be lowered for clearance. Support the transmission correctly before loosening any support or crossmember hardware. If you are not equipped for that work, have a qualified shop remove the downpipe.

Step 5: Remove the Remaining Factory Exhaust

Loosen the remaining clamp connections. Spray a small amount of penetrating lubricant on the rubber hangers, then slide the metal hanger rods out of the rubber mounts.

Remove the system in manageable sections. Keep each section supported until it is fully free from the truck. Check that no connector, hose, or line is still attached before lowering it.

Step 6: Install the Front Turbo Pipe

Place the needed clamps loosely over the pipe ends before installing the new sections. Lift the front turbo pipe into position and connect it to the turbo using the retained factory band clamp.

Snug the clamp enough to hold the pipe, but do not fully tighten it. The pipe should still move by hand so the rest of the system can be aligned without stress.

Step 7: Install the Race Pipe and Wheelbase Extension

Slide the race-pipe section into the front pipe. Use the correct overlap and clamp position shown by the product instructions. The pipe should seat evenly without being hammered into place.

Long-wheelbase trucks may require the supplied extension section. Test-fit the entire exhaust before deciding that an extension is or is not needed. The next section should reach its hanger position without pulling the front pipe away from the turbo.

Step 8: Install the Muffler and Rear Sections

If the selected turbo-back system includes a muffler, install it in the correct flow direction. Then install the over-axle pipe and tailpipe. Insert the hanger rods into the factory rubber mounts as you move toward the rear.

Keep every clamp loose enough for adjustment. Rotate the pipes until the system follows the truck without placing sideways force on the turbo connection or rubber hangers.

Step 9: Set Tailpipe Position and Component Clearance

Snug the clamps so the pipes stay in place but can still be moved. Center the tailpipe exit and make sure it sits level with the truck. Check the position at normal ride height when possible.

Inspect clearance around the transmission, frame, driveshaft, axle, spare tire, shocks, brake lines, parking-brake cables, and axle vent tube. The exhaust must not rub any moving part, hose, wire, or heat-sensitive surface.

Pay close attention to the over-axle section. Leave enough room for axle movement when the suspension compresses or extends. A pipe that clears in the shop can still contact the axle or body while driving.

Step 10: Tighten the System from Front to Rear

Once the system is aligned, tighten the turbo band clamp and work toward the rear. Tighten each connection in stages so one joint does not pull the rest of the system out of position.

• Turbo Band Clamp: Tighten to approximately 15–20 ft-lbs.
• Exhaust Clamps: Tighten to approximately 40–50 ft-lbs.

After tightening, check the full system again. Make sure the pipes do not contact the frame, axle, transmission, wiring, hoses, or other nearby parts.

For added security, weld only the pipe-to-pipe connections if needed. Do not weld directly on the clamps. The linked product is described as a bolt-on system, so confirm the exact product variant and test-fit the complete exhaust before welding any connection.

Important Note About the Original Installation PDF

Step 9 in the supplied PDF refers to moving a MAF sensor from a factory intake to a new intake. That instruction does not match a turbo-back exhaust installation and appears unrelated to this exhaust procedure. Do not move an intake MAF sensor as part of this guide unless separate instructions for an included intake specifically require it.

The same PDF states that exhaust sensors and lines do not return to the new system. Follow the exact product and tuner instructions for your configuration. Do not assume that every sensor can be removed, relocated, or left disconnected in the same way.

Tuning Requirements and Options

A 2010–2012 6.7 Cummins monitors the factory emissions system. If monitored emissions hardware is removed on a vehicle that can lawfully use this setup, compatible tuning must be addressed before operation. Without the correct calibration, the truck may store diagnostic codes, show warning lights, or enter a reduced-power condition.

Tuner compatibility is not based on the word “Cummins” alone. Confirm the model year, transmission, current calibration, existing modifications, included files, unlock needs, and intended lawful use before purchasing.

• The Mini Maxx V2 tuner and full kit combines tuning hardware with related components, but the exact fitment and included parts must be checked.
• The H&S Performance Mini Maxx V1 tuner is another option to compare by supported model year and calibration.
• The EFI Live AutoCal V3 for Ram Cummins uses supplied calibration files and should be matched to the truck and tune provider.
• The EZ LYNK tune package for 2010–2021 Ram 6.7 Cummins offers another tuning route when the exact truck and calibration are supported.

Do not start the engine simply to see whether an incompatible or unfinished setup works. Complete the required calibration process according to the tuner provider’s instructions. Keep stable battery voltage during programming.

When an All-in-One Kit May Be a Better Choice

A race pipe makes sense when you already have the other required hardware and a confirmed tuning plan. If the build also requires EGR-related components and compatible tuning, buying separate parts can create fitment gaps or duplicate hardware.

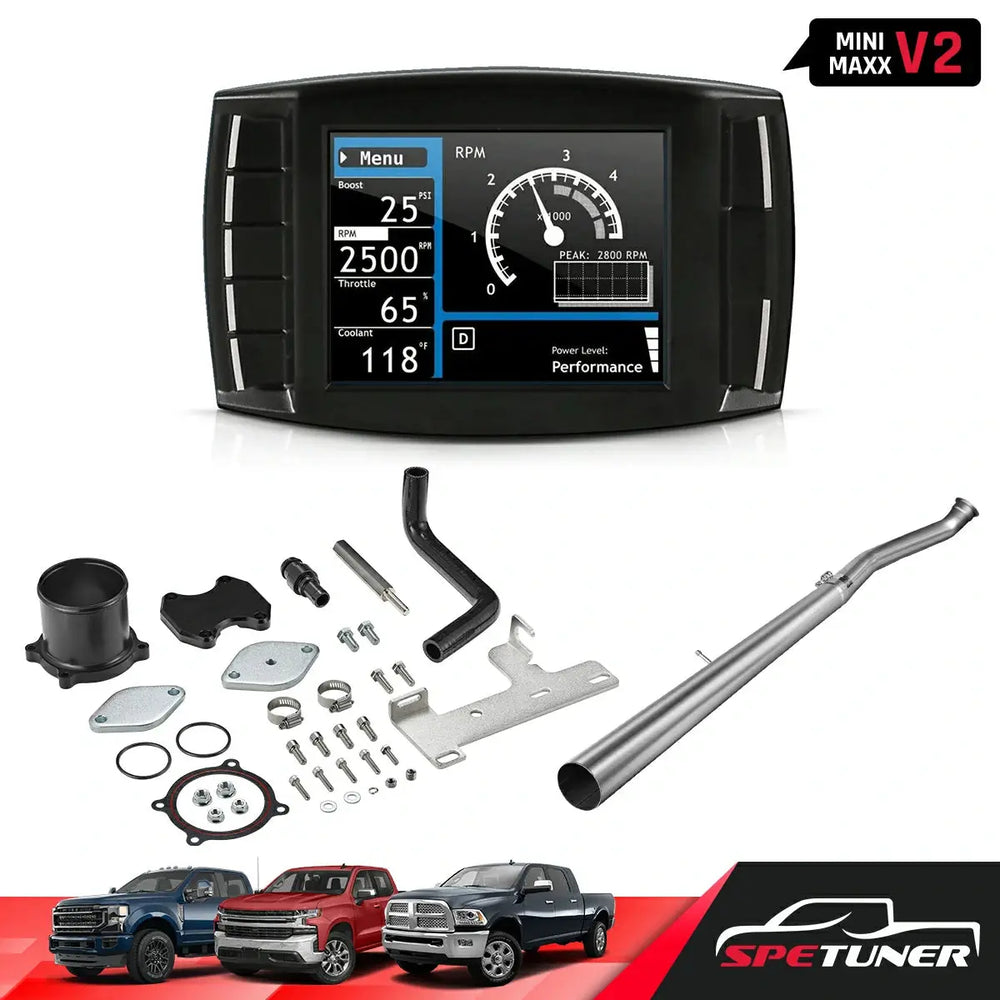

The 2010–2012 Ram 6.7 Cummins all-in-one kit is designed as a broader package. Check the selected options carefully because package contents, exhaust size, tuner choice, and supported truck configurations may vary.

Post-Installation Checks

1. Reconnect both negative battery cables after the mechanical and tuning work is complete.
2. Confirm that no tools, rags, or loose hardware remain under the truck.
3. Start the engine in a well-ventilated area and let it idle.
4. Listen for ticking, hissing, or puffing sounds at every joint.
5. Check for exhaust contact with the frame, crossmember, axle, body, or wiring.
6. Watch for warning lights, fault messages, or abnormal exhaust behavior.
7. Shut the engine off and allow the system to cool before touching or adjusting it.
8. Recheck clamp position and pipe clearance after the first heat cycle.
9. Inspect the system again after a short, low-load test drive on property where the vehicle can lawfully operate.

Common Installation Problems

Final Thoughts

The cleanest 2010–2012 6.7 Cummins turbo-back installation starts with correct fitment and patient alignment. Leave the clamps loose, build the system from the turbo toward the rear, and check every nearby line and moving part before final tightening.

A correctly installed 4-inch turbo-back pipe can improve exhaust flow, support quicker turbo spool, and improve engine efficiency. Pair the system with compatible tuning and complete all leak, clearance, and clamp checks before driving.

Do not treat exhaust hardware as a repair for engine faults, turbo damage, fuel-system problems, or electrical issues. Diagnose existing warning lights and mechanical problems before changing the exhaust. After installation, recheck the system following its first full heat cycle.

FAQ

Q1: How long does it take to install a turbo-back exhaust on a 6.7 Cummins?

A1: Installation time depends on rust, lifting equipment, truck configuration, and whether the factory exhaust must be cut. A clean truck on a lift is usually much easier than a rusty truck being serviced on the ground.

Q2: Does this exhaust fit every 2010–2012 Ram 6.7 Cummins?

A2: No. Confirm the exact product variant, wheelbase, cab and bed configuration, and previous exhaust changes. The linked race-pipe product excludes Cab & Chassis and factory air-ride applications.

Q3: Do I need to cut the factory downpipe?

A3: Cutting can make removal easier, but it is not always required. Keeping the downpipe intact may require extra clearance and safe support of the transmission before lowering related support hardware.

Q4: Does a 6.7 Cummins DPF delete pipe require a tuner?

A4: Yes. Compatible tuning is required when monitored emissions hardware is removed on a vehicle that can lawfully use the setup. Confirm the truck, transmission, calibration, and tuner support before installation.

Q5: Should I tighten each clamp as I install the pipes?

A5: No. Keep the connections loose until the full system is installed and aligned. Then tighten the system in stages from front to rear.

Q6: Does a 4-inch turbo-back exhaust require welding?

A6: The linked product is described as a bolt-on system, but the supplied PDF mentions optional welding for added security. Confirm the exact variant before welding, and never weld directly on the clamps.

Q7: Why is my new exhaust touching the axle or frame?

A7: The pipe sections may be rotated incorrectly, or the front connections may have been tightened too soon. Loosen the clamps, realign the system, and check clearance through normal suspension movement.

Q8: Can a 6.7 Cummins turbo-back pipe improve fuel economy?

A8: Yes. Removing the factory DPF restriction may improve fuel economy by about 1–3 MPG. Actual results depend on tuning, engine condition, load, tires, gearing, and driving habits.
