Installation Guide for 6.0L Powerstroke EGR Delete Kit

Author: Lars, SPETUNER Diesel Performance Engineer

This guide covers the main steps used to install a 6.0L Powerstroke EGR delete kit on a 2003–2007 Ford Super Duty. The exact layout can change by model year, cab style, prior repairs, and kit design, so verify the part number and instructions supplied with your kit before removing anything.

Quick Answer

A 6.0L Powerstroke EGR delete is a seven-stage job that requires access to the turbocharger, intake manifold, EGR cooler, and coolant circuit. An experienced diesel technician may finish in about 4–6 hours, but a first-time DIY installer should plan for a full day. The key reminder is simple: use new seals where needed, protect every open intake port, and follow the correct Ford or kit-specific torque sequence instead of applying one torque value to every fastener.

Compliance Note: Removing, disabling, or tampering with emissions equipment is illegal on trucks driven on public roads in the United States and restricted in many other regions. This guide is for off-road, race-only, competition-use, or export applications where permitted. Check the rules that apply to your truck before buying or installing any delete hardware.

Download the SPETUNER 6.0L Powerstroke EGR Delete Kit Installation PDF

Before You Start

Fitment

• Engine: 6.0L Powerstroke diesel
• Typical application: 2003–2007 Ford F-250, F-350, F-450, and F-550 Super Duty
• Important: E-Series vans and trucks with aftermarket turbo, intake, exhaust, or cooling parts may use a different procedure.

The 2003–2007 6.0L Powerstroke does not use a DEF or SCR system. This job concerns the EGR valve, EGR cooler, exhaust block-off hardware, and coolant routing. Do not confuse an EGR delete kit with a DEF delete kit.

If you are working on a recently purchased truck, inspect the cooling system, head-gasket condition, injector performance, FICM voltage, turbo response, and previous repair history before installing new parts. Our guide to what to inspect before buying a used 6.0L Ford Powerstroke explains the main warning signs that should be checked before modifying the truck.

Difficulty and Time

• Difficulty: Advanced DIY
• Experienced installer: About 4–6 hours
• First-time installer: Plan for a full day
• Best work area: Level floor, good lighting, and enough room to leave the truck apart if a seal or clamp must be replaced

Tools

• Metric and SAE socket sets
• Ratchets, long extensions, and swivel joints
• Combination wrenches
• Inch-pound and foot-pound torque wrenches
• Screwdrivers, picks, and a small trim tool
• Small pry bar for controlled movement only
• Pliers for hose clamps
• Drain pan for coolant
• Penetrating oil for exhaust fasteners
• Clean caps, plugs, or lint-free shop towels
• Labels, masking tape, and a marker
• Safety glasses and gloves

Parts and Supplies to Check

• EGR cooler block-off plate or up-pipe block-off plate
• Intake adapter or EGR valve replacement plate
• Stainless coolant pipe or coolant reroute fitting
• Silicone coolant hoses and clamps
• Required O-rings, gaskets, and hardware
• Turbo oil feed and drain seals if they are disturbed or damaged
• Correct coolant for the truck

Lay out every part before starting. Match each plate, hose, clamp, and O-ring to the kit instructions. Do not begin if the kit is missing a seal or if the block-off hardware does not match the truck.

Step 1: Cool the Engine, Disconnect the Batteries, and Drain Coolant

1. Park the truck on a level surface and let the engine cool fully.
2. Disconnect both negative battery cables. The 6.0L uses two batteries, so disconnecting only one does not isolate the electrical system.
3. Remove the coolant reservoir cap only after the system is cold and no pressure remains.
4. Drain enough coolant to lower the level below the EGR cooler. Use a clean drain pan if you plan to reuse serviceable coolant.
5. Take photos of hose routing, wire clips, and clamp positions before disassembly.

Step 2: Clear the Top of the Engine

1. Release the plastic wire-harness clips and move the harness toward the windshield. Do not pull on the wires.
2. Remove the upper fan shroud if it blocks access.
3. Loosen the intake clamps and remove the air-intake tube and turbo inlet duct.
4. Disconnect the crankcase ventilation tube. On the 6.0L Powerstroke, this is a CCV connection, not a gasoline-style PCV valve.
5. Remove the charge-air pipe or move it aside as required by the kit instructions.
6. Remove or tilt the alternator only if needed for access. Protect the belt and electrical terminal.
7. Cap every open turbo, intake, and charge-air connection as soon as it is exposed.

Owner tip: Do not blow compressed air into an open intake port. It can push dirt deeper into the engine. Wipe the area before opening it, then use a shop vacuum around the outside of the port.

Step 3: Remove the Turbocharger

1. Apply penetrating oil to the turbo-to-downpipe and up-pipe V-band fasteners. Give it time to work.
2. Remove the V-band clamp that connects the downpipe to the turbo. Support the exhaust so it does not hang on another joint.
3. Unplug the VGT actuator connector and move the harness out of the way.
4. Disconnect the turbo oil feed and drain connections without bending the tubes.
5. Remove the up-pipe V-band clamps and turbo mounting fasteners.
6. Lift the turbo straight up. Watch the oil drain tube and rear V-band area as the turbo comes free.
7. Cover the exposed oil and intake openings at once.

Check before reassembly: Inspect the V-band clamps, turbo mounting O-rings, oil feed seal, and drain-tube seal. A flattened O-ring or distorted clamp can cause an oil leak, exhaust leak, or slow spool after the job.

Step 4: Remove the EGR Cooler

1. Label the intake-manifold bolts by location. Different brackets may share the same area, and mixing hardware can slow down reassembly.
2. Loosen the driver-side intake-manifold bolts as directed by the kit instructions. Remove the passenger-side bolts needed to lift the manifold.
3. Disconnect the EGR cooler coolant hoses and remove the cooler mounting bolts.
4. Separate the cooler from the exhaust and intake connections. Use light, controlled pressure. Do not pry against a sealing surface.
5. Lift the intake manifold only as much as needed, then work the EGR cooler out through the front of the engine bay.
6. Remove old O-rings and gaskets. Make sure no seal remains stuck in a bore.
7. Clean the sealing surfaces with a lint-free cloth and a safe plastic scraper. Keep debris out of the intake ports.

Step 5: Install the Block-Off and Coolant-Reroute Parts

1. Install the supplied exhaust block-off plate at the up-pipe connection. Seat the V-band clamp evenly around the full joint before tightening it.
2. Install the supplied coolant pipe, hose, or reroute fitting. Keep hoses away from sharp edges, the belt, and hot exhaust parts.
3. Place each clamp behind the raised bead on the tube. Do not leave a clamp on the tapered edge of a fitting.
4. Lightly lubricate the new intake-adapter O-ring with clean engine oil or the lubricant named in the kit instructions.
5. Press the adapter into the bore without twisting or pinching the O-ring.
6. Reposition the intake manifold and install the bolts by hand before tightening them.
7. Use the correct tightening sequence and torque specifications from the SPETUNER instructions or Ford service information for the exact model year.

Important: Do not apply one blanket torque value to the intake manifold, adapter, turbo, and V-band hardware. These fasteners use different specifications. If the supplied instructions and the truck's service information disagree, stop and confirm the correct specification before continuing.

Step 6: Reinstall the Turbo and Intake Parts

1. Install the turbo with serviceable seals. Align the oil drain tube before tightening the turbo mounting hardware.
2. Reconnect the oil feed, oil drain, VGT connector, up-pipe V-band clamps, and downpipe clamp.
3. Confirm that each V-band joint is fully seated. A clamp can look tight while the flange is still cocked.
4. Reinstall the alternator, charge-air pipe, CCV tube, turbo inlet duct, intake tube, fan shroud, and wiring harness.
5. Check for trapped wires, loose grounds, tools, rags, and caps before closing the engine bay.

Step 7: Refill Coolant and Check the Installation

1. Refill the cooling system slowly with the correct coolant. Do not mix incompatible coolant types.
2. Reconnect both negative battery cables.
3. Turn the key on and check for an immediate warning or electrical fault before starting.
4. Start the engine and let it idle. Do not raise engine speed until oil pressure is stable and no leak is present.
5. Inspect every coolant hose, O-ring joint, turbo oil connection, and V-band connection.
6. Listen for a sharp exhaust tick or boost hiss that may point to a V-band joint that is not seated.
7. Let the engine reach operating temperature, then shut it down and allow it to cool fully.
8. Recheck the coolant level and inspect the engine valley for fresh oil or coolant.

Post-Installation Checklist

• Both batteries are connected and the terminals are tight.
• No tools, caps, or shop towels remain in the engine bay.
• The turbo oil feed and drain connections are dry.
• The up-pipe and downpipe V-band clamps are seated evenly.
• Coolant hoses are not kinked or touching the belt or exhaust.
• The coolant level is correct after a full heat cycle and cool-down.
• No new exhaust tick, boost hiss, oil leak, or coolant smell is present.
• No EGR-related diagnostic code remains unresolved.

Common Mistakes That Cause Comebacks

• Starting with a warm engine: Hot coolant can cause severe burns.
• Leaving intake ports open: One dropped nut can turn a long repair into an engine teardown.
• Reusing damaged O-rings: A small flattened seal can fill the engine valley with oil or coolant.
• Forcing a V-band clamp: The flanges must meet squarely before the clamp is tightened.
• Mixing bolts and brackets: Label each group during removal.
• Guessing torque values: Use the correct fastener-specific specification.
• Assuming hardware clears every code: Some calibrations may still set EGR-related faults.
• Loading the engine too soon: Complete a heat cycle and leak check before towing or hard acceleration.

Do You Need a Tune After a 6.0L Powerstroke EGR Delete?

It depends on the truck's model year, calibration, and how the kit handles the EGR valve and sensors. Some trucks may run without an immediate drivability issue but still store an EGR-related code. Others may need a compatible off-road calibration. Confirm the tuning requirement before installation rather than waiting for a check-engine light afterward.

For a deeper explanation, read Do You Need a Tune After an EGR Delete?

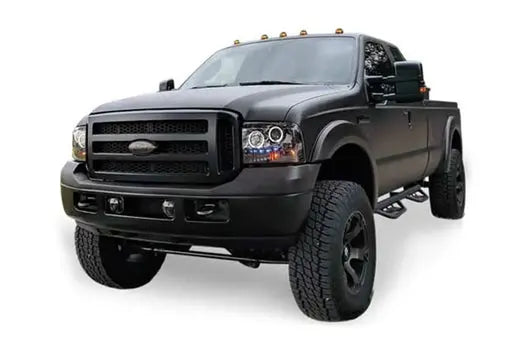

2003–2007 6.0L Powerstroke EGR Delete Kit

Check the selected package before ordering. Available configurations may include EGR delete hardware and a compatible tuner. Confirm your truck's model year, body type, and existing modifications.

Shop the 6.0L Powerstroke EGR Delete Kit

Do You Need a Tune After a 6.0L Powerstroke EGR Delete?

It depends on the truck's model year, calibration, and how the kit handles the EGR valve and sensors. Some trucks may run without an immediate drivability issue but still store an EGR-related code. Others may need a compatible off-road calibration. Confirm the tuning requirement before installation rather than waiting for a check-engine light afterward.

For a deeper explanation, read Do You Need a Tune After an EGR Delete?

Frequently Asked Questions

Q1: How long does a 6.0L Powerstroke EGR delete take?

A1: An experienced installer may finish in about 4–6 hours. A first-time DIY installer should plan for a full day because turbo access, stuck V-band clamps, and coolant cleanup can add time.

Q2: Does the turbo have to come out?

A2: This installation method removes the turbo because it gives direct access to the EGR cooler, up-pipe connection, and intake manifold. Some kit designs may use a different sequence, so follow the instructions for the exact kit.

Q3: Will an EGR delete add horsepower?

A3: The hardware change alone should not be treated as a guaranteed horsepower upgrade. The main change is removal of the EGR cooler and exhaust-gas path. Any power change depends on the truck's calibration and other parts.

Q4: Do I need a tune after the EGR delete?

A4: Possibly. The truck may store EGR-related codes depending on model year and calibration. Confirm the tuning plan before the hardware is installed.

Q5: Why is coolant leaking after installation?

A5: Common causes include a pinched O-ring, a hose that is not fully seated, a clamp placed ahead of the tube bead, or a coolant pipe that was tightened while misaligned. Let the engine cool before checking any connection.

Q6: Can I reuse the old intake and turbo seals?

A6: Reuse only seals that the service procedure allows and that remain soft, round, and undamaged. Replacing a questionable O-ring is far easier than removing the turbo again to repair a leak.

Q7: Does a 2003–2007 6.0L Powerstroke have DEF?

A7: No. These trucks do not have a DEF or SCR system. A 6.0L Powerstroke EGR delete concerns the EGR cooler, EGR valve path, exhaust block-off, and coolant routing.

Q8: What is the road-legal alternative to an EGR delete?

A8: For a road-driven truck, repair the factory system with compliant parts. That may include an upgraded replacement EGR cooler, new seals, and cooling-system repairs. Check local emissions rules before choosing parts.

Q9: What should I inspect while the turbo is out?

A9: Inspect the turbo oil feed and drain seals, V-band clamps, intake boots, wiring, and the engine valley for old oil or coolant residue. Fixing a weak seal now can prevent a second teardown.

Q10: When can I tow after the installation?

A10: Do not tow until the truck completes a full heat cycle, cools down, holds the correct coolant level, and shows no oil, coolant, exhaust, or boost leak.
