Gen-2 CCV Reroute to Exhaust Kit Fits 2011+ Ford Super Duty F250 F350 F450 F550 6.7L Powerstroke

SPEtuner Gen-2 Filtered CCV Reroute Kit | 2011-2025+ Ford 6.7L Powerstroke

Keep your intake pristine and your engine bay smelling fresh. The SPEtuner Gen-2 Filtered CCV Reroute Kit with Rear Exit is the ultimate advanced crankcase ventilation upgrade for 2011–2025+ Ford F250, F350, F450, and F550 Super Duty trucks equipped with the 6.7L Powerstroke diesel engine.

Key Features

• Eliminate Intake Sludge & Gunk: Completely stops oily blow-by vapors from coating your turbo compressor blades and insulating your intercooler, restoring maximum thermodynamic efficiency.
• 100% Odor-Free Technology: Features a specialized internal filtration element that traps residual oil mist and neutralizes harsh blow-by smells, preventing unwanted diesel odors from drifting into your cabin or engine bay.
• Rear-Exit Ventilation Routing: Safely channels filtered crankcase gases away from the engine compartment and down toward the rear chassis, maintaining a completely clean, smoke-free engine bay.
• Protect Vital Sensors: Prevents oily residue from coating intake air sensors (IAT/MAP/MAF), ensuring your PCM receives accurate data for precise fueling and optimal performance.
• Extend Engine & Turbo Life: By preventing carbon-forming oil deposits from entering the combustion chamber, your valves and pistons stay cleaner for long-term durability.
• High-Capacity Filtration Canister: Built with a durable, service-friendly filter housing designed for easy maintenance and long-lasting performance under heavy loads.

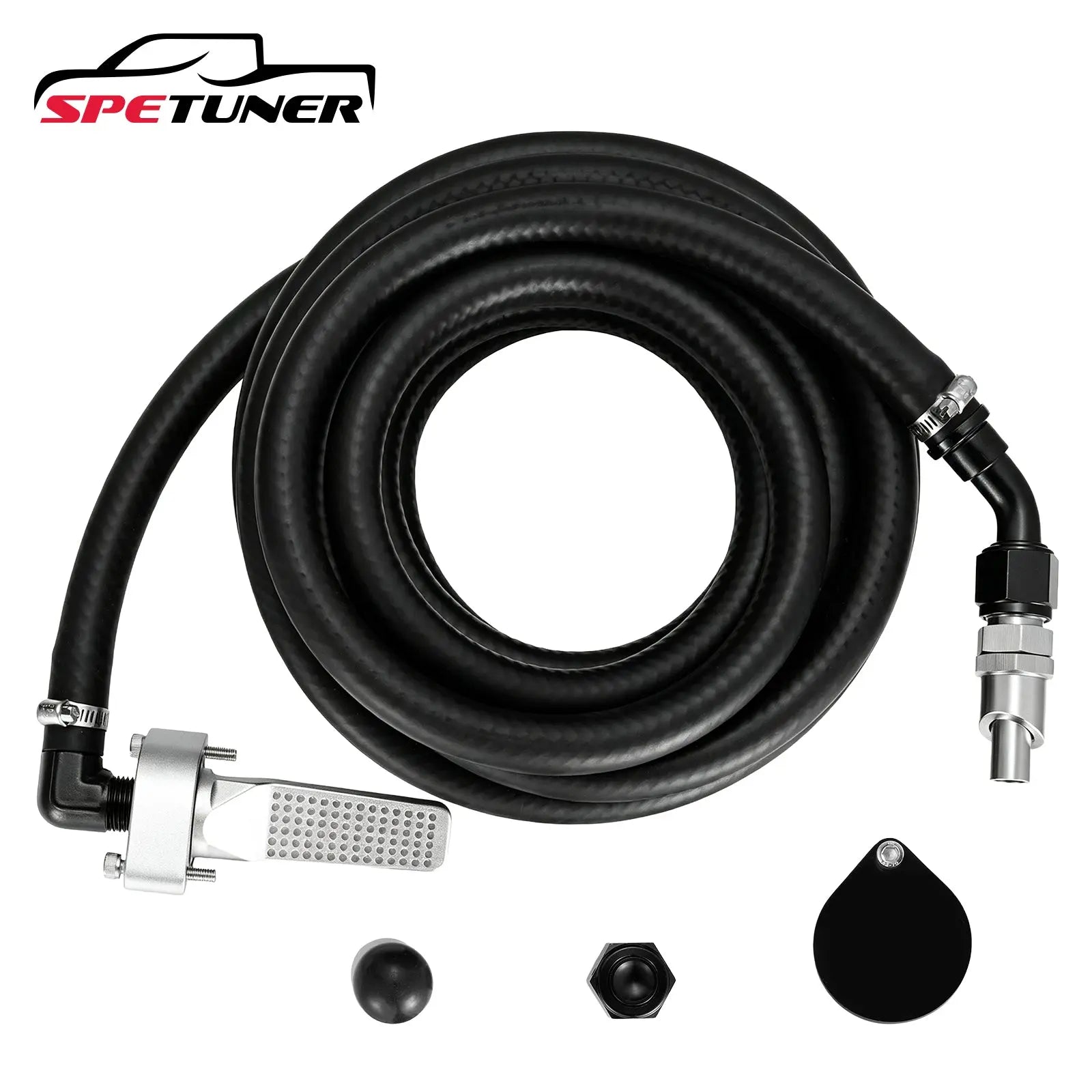

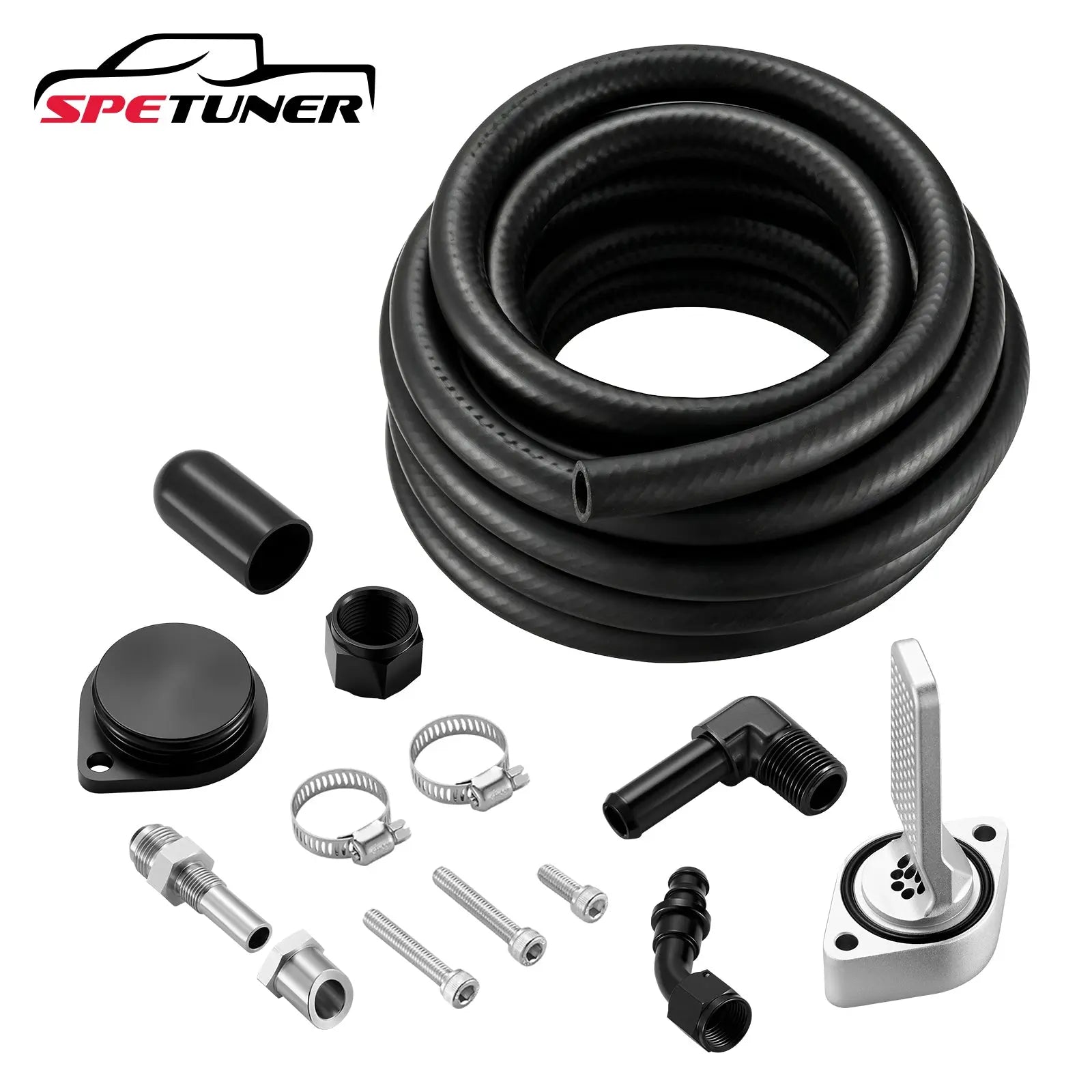

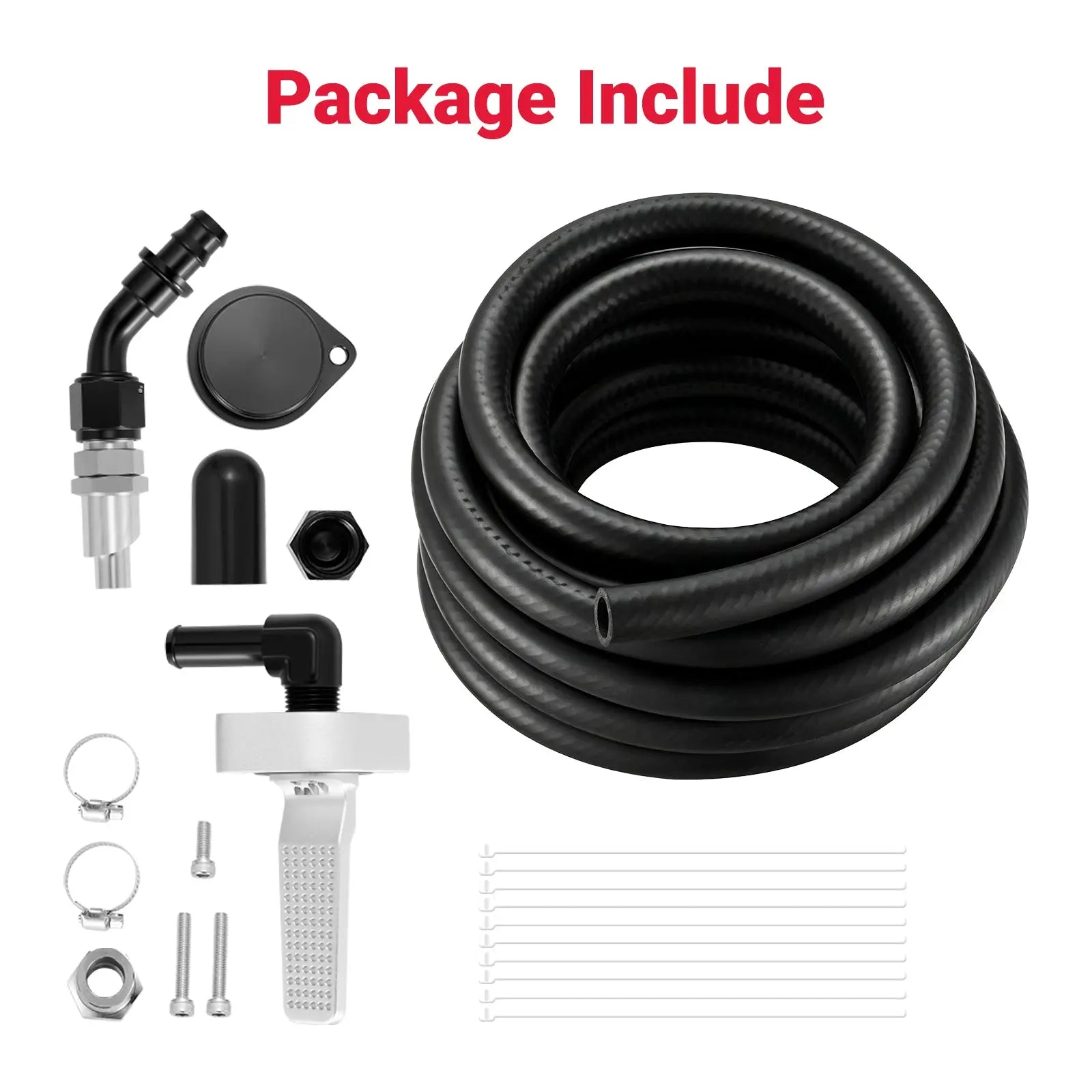

What's Included in the Gen-2 Kit

This kit is "box-complete," providing professional-grade hardware for a seamless installation:

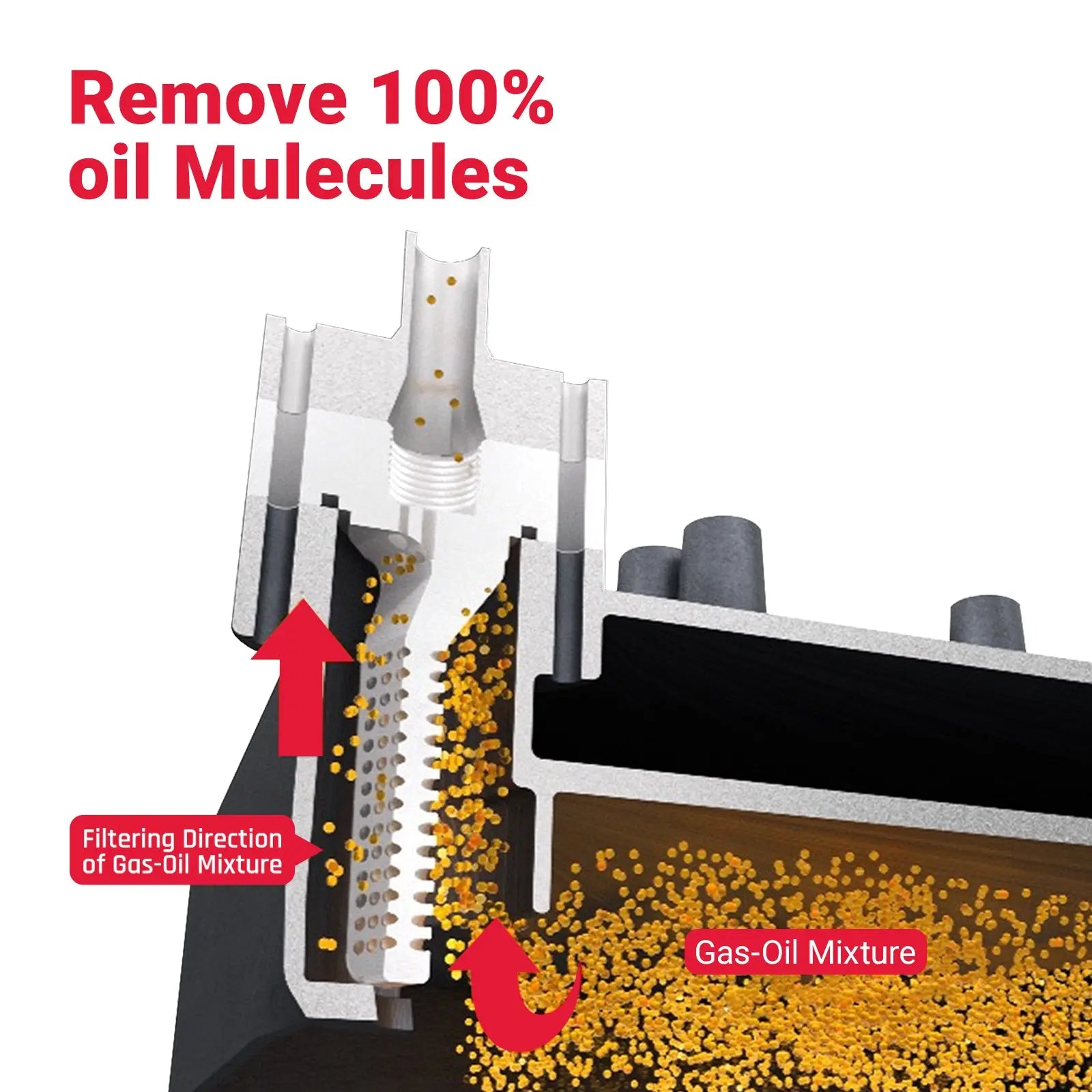

• 1x CNC Integrated CCV Filter: Precision-machined billet aluminum with a built-in high-density oil-gas separation filter core

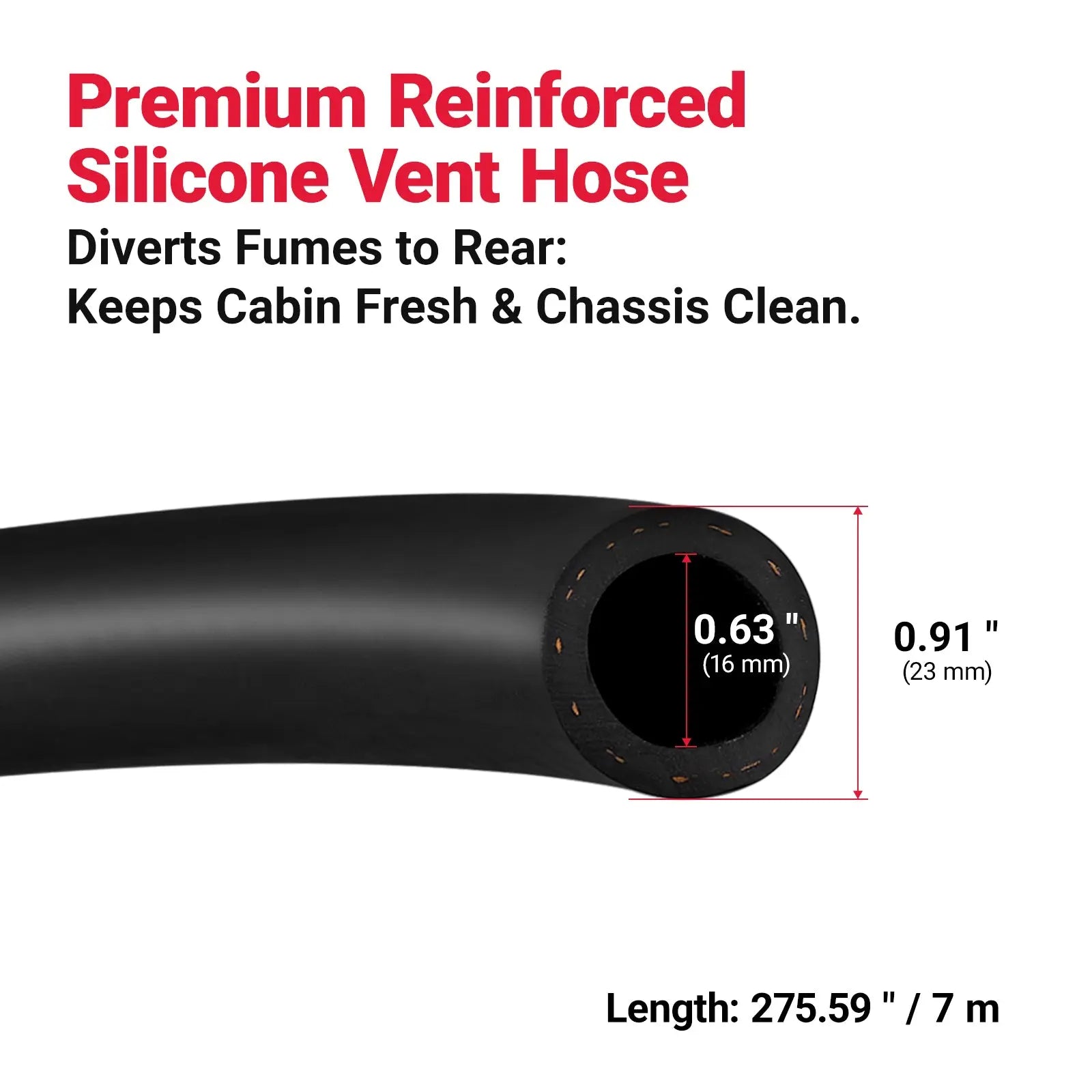

• 1x High-Temp Reinforced Silicone Hose: For rear-exit routing
• 1x Rear Exhaust Integration Port: CNC-machined adapter for seamless connection to the vehicle's main exhaust pipe
• 1x Heavy-Duty Reversal Plug: Stainless steel hex-head plug for 100% non-destructive restoration to stock
• 2x Stainless Steel AN-Style Fittings: Includes 1x Straight Male AN threaded fitting and 1x Tapered Threaded Hex fitting for secure hose connections
• 1x Optimized Hardware Kit: Includes all necessary stainless steel bolts and high-torque worm gear clamps for a leak-proof seal
• 1x O-Ring Seal: Pre-installed high-temp chemical-resistant seal for the main CCV filter

Why Choose SPELAB Gen-2 CCV Systems?

Don't settle for basic vent tubes that leave your truck smelling like a refinery. SPEtuner engineered the Gen-2 system to solve every complaint associated with traditional reroutes:

• No Under-Hood Odors: Our integrated filter media captures and neutralizes gases before they can pool around your cab vents.
• Heavy-Duty Construction: Built from high-grade materials designed to withstand the brutal vibration, heat, and pressure of a modified 6.7L diesel engine.
• Fast North American Shipping: Dispatched rapidly from our domestic distribution hubs to get your truck upgraded and running clean.

Installation

Step 1: Preparation

• Ensure the engine is completely cool.
• Disconnect the negative battery terminals for safety.
• Locate the factory CCV box on the driver-side valve cover.

Step 2: Remove Factory CCV Components

• Disconnect the factory plastic vent lines from the CCV box.
• Unbolt the factory CCV box from the valve cover (keep the mounting area clean).
• Remove the factory intake resonance box or CCV cap if applicable to your model year.

Step 3: Install the CNC Integrated Filter

• Ensure the Viton O-ring is properly seated in the groove of the new CNC Integrated CCV Filter.

• Place the filter onto the valve cover.
• Secure it using the provided stainless steel bolts.(Note: Use the optimized shorter bolt for the single-bolt engine cap piece as provided in the kit)
• Torque to factory specifications.

Step 4: Route the Hose

• Attach one end of the Reinforced Silicone Hose to the CCV filter using the provided AN-style fitting and clamp.
• Route the hose along the frame rail toward the rear of the truck.
• Pro Tip: Secure the hose away from moving parts (driveshaft) and extreme heat sources (DPF/exhaust manifolds) using heavy-duty zip ties.

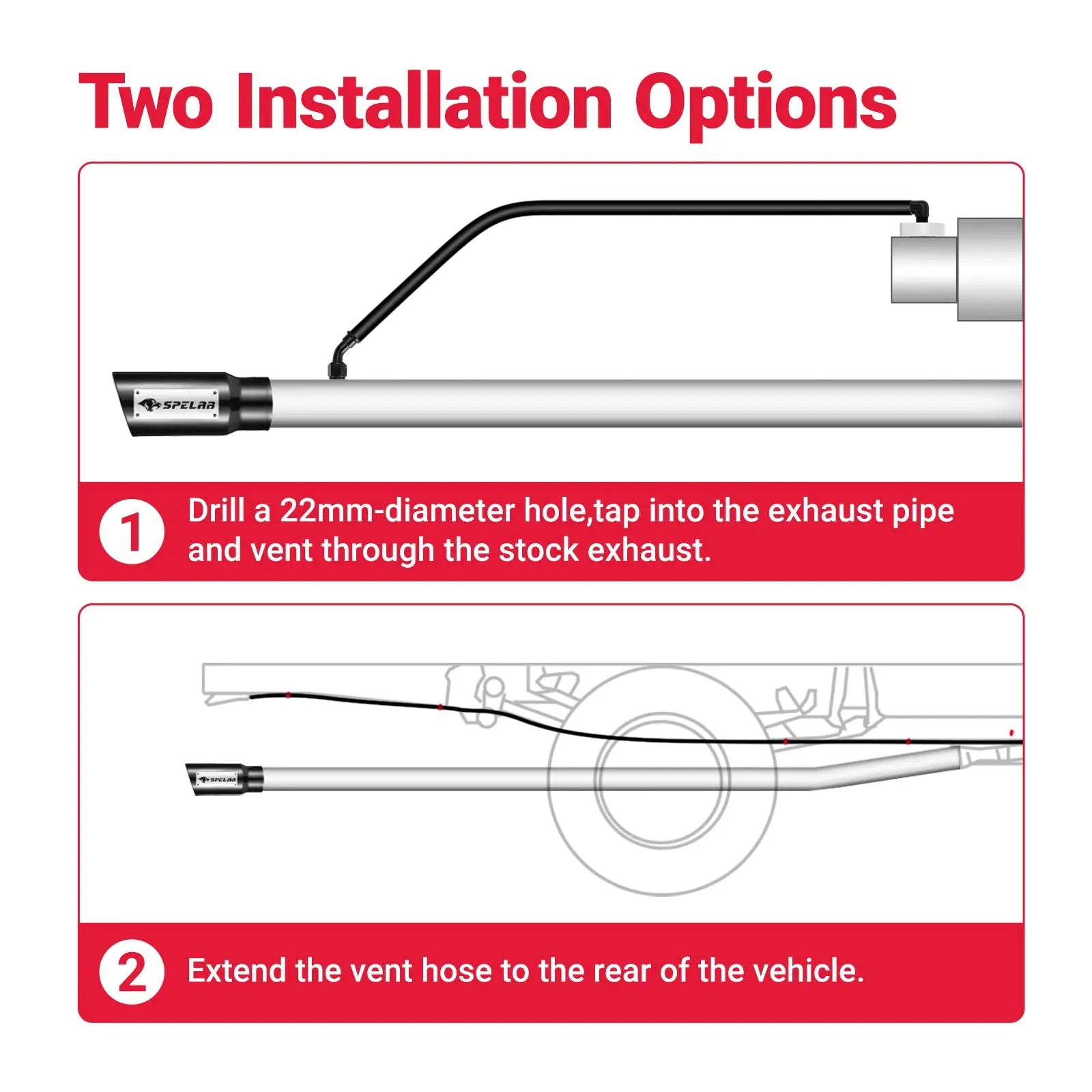

Step 5: Exhaust Integration (Optional but Recommended)

• Locate a suitable section on the rear exhaust tailpipe.
• Install the Rear Exhaust Integration Port. (If your exhaust is already prepped, simply thread the adapter in.)
• Connect the end of the silicone hose to the port and secure it with a stainless steel clamp.
• If not integrating into the exhaust: route the hose to a safe exit point at the rear and secure it.
• Note: Ensure the short side of the fitting’s cut face is oriented toward the exhaust pipe outlet.

Step 6: Final Inspection

• Double-check all clamps and bolts for tightness.
• Ensure there are no sharp kinks or pinches in the silicone hose.
• Reconnect the batteries and start the engine.
• Check for any air or oil leaks around the new filter

Fitment

Specifically engineered for the Ford 6.7L Powerstroke platform:

• 2011–2025+ Ford F-250 / F-350 / F-450 / F-550 Super Duty (6.7L Powerstroke Turbo Diesel)

Designed for direct bolt-on installation using factory mounting points. Compatible with all cab configurations and stock engine bay layouts.

FAQ

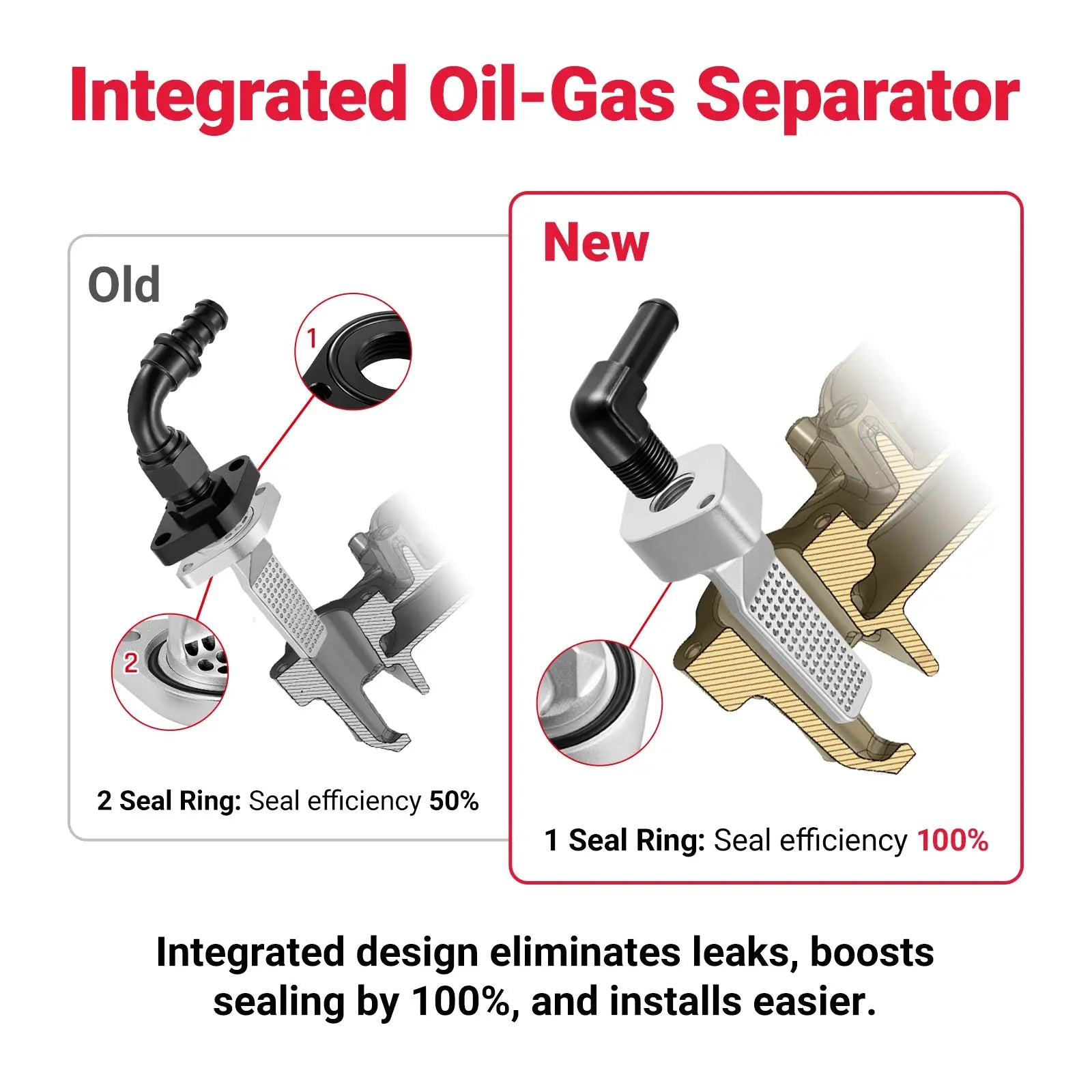

Q1: How is this "Integrated" kit different from a standard CCV Delete?
A1: Most standard kits are "hollow" and multi-piece, which can lead to leaks and zero filtration. Our Clean-Route™ system features a one-piece CNC-machined filter with a built-in high-density filter. It ensures a 100% leak-proof seal and captures oil particles before they leave the engine—something basic delete kits simply can't do.

Q2: Will I smell diesel fumes inside the cabin after installation?
A2: No. That is the core benefit of our Clean-Route™ Rear Exhaust Integration. By routing the extra-long hose to the rear tailpipe, all blow-by gases are expelled out the back of the truck, keeping your cabin air fresh and odor-free.

Q3: Do I need to cut or permanently modify my exhaust pipe?

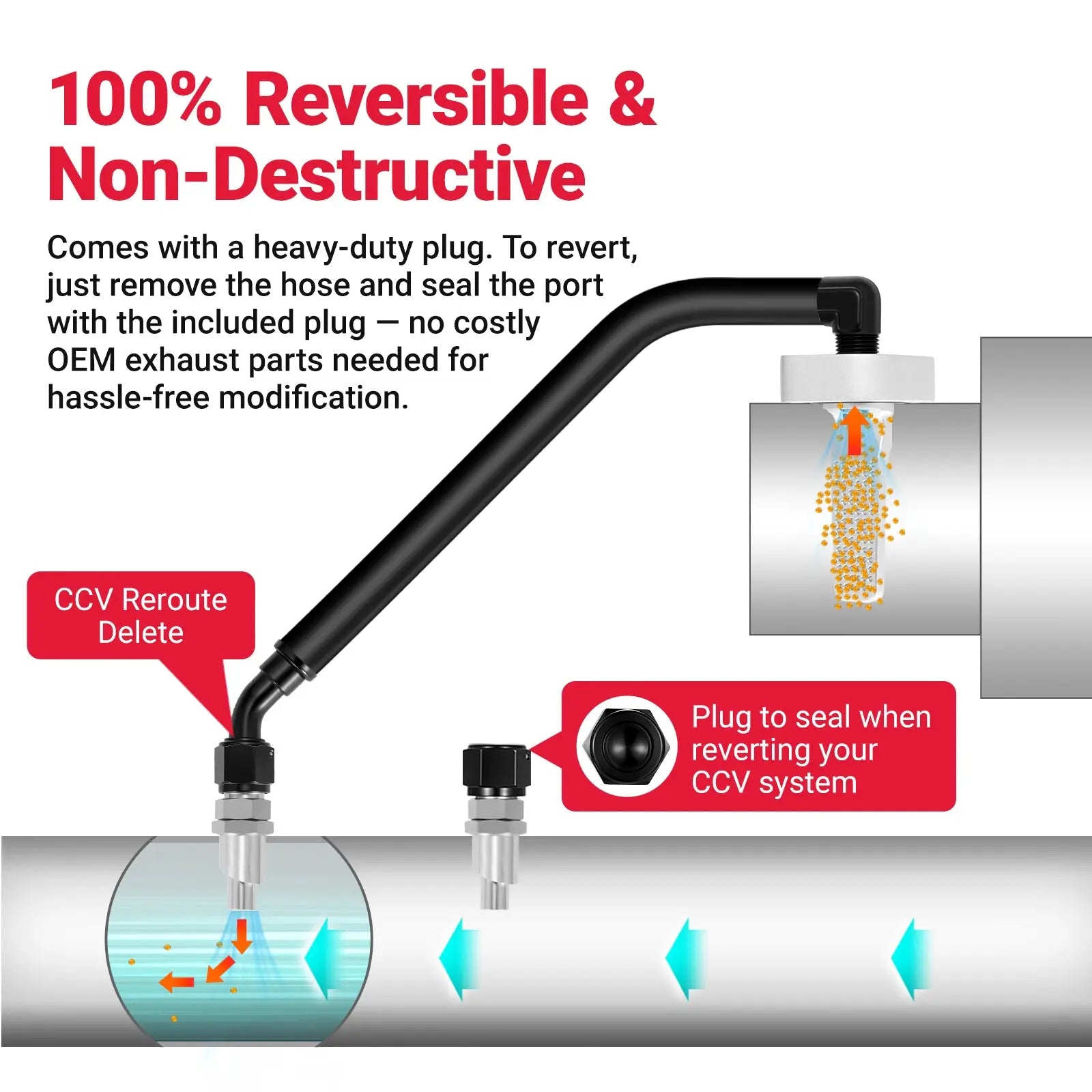

A3: Our kit is designed to be 100% reversible. While it integrates into the exhaust, we include a dedicated heavy-duty plug. If you ever wish to return to stock, simply remove the hose and seal the port with the plug—no need to replace expensive exhaust components.

Q4: Is this kit compatible with my 2023/2024 6.7 Powerstroke?
A4: Yes! This kit is precision-engineered to fit all Ford Super Duty 6.7L Powerstroke models from 2011.

Q5: Does the internal filter need to be replaced or cleaned?
A5: The integrated filter is designed for long-term durability. Under normal driving conditions, it is a "set and forget" component that requires no regular maintenance, as captured oil naturally drains back into the engine.

Q6: Will this help prevent intercooler oil buildup?
A6: Absolutely. By rerouting the crankcase gases away from the intake system, you stop oil mist from coating your intercooler and intake valves, maintaining maximum cooling efficiency and engine longevity.
