What’s in a 5.9 Cummins Exhaust System? Downpipe, Cat, Muffler & Turbo-Back

Knowing the parts makes the buying decision easier: you can replace a leaking front section, address an uncomfortable exhaust note, or renew an aging system without confusing three different jobs. This guide focuses on 2003–2007 Ram 2500/3500 5.9L pickups.

Follow the Route from the Engine to the Outlet

Exhaust manifold → turbo turbine → downpipe → applicable catalyst and connecting pipe → muffler → over-axle pipe and tailpipe. This is a functional sequence; the sections and joints vary by application.

Separate Diameter, Connection Size, and Kit Coverage

Three measurements can appear in the same listing without meaning the same thing: the main pipe diameter, the turbo connection, and the exhaust tip. A larger main tube can use a shaped front section or transition at the turbo. A large polished tip can also sit on smaller tubing. Measure the joint where your new part will connect instead of using the visible outlet as a proxy for the whole exhaust.

For a muffler replacement, record the existing pipe size, the distance between the connection points, the space available for the muffler body, and whether the inlet and outlet align. Two mufflers with the same advertised connection diameter can occupy different amounts of space. The installer must also account for the engagement at slip joints or any adapters; body length alone is not the completed installation length.

Match the Scope to the Condition of the Truck

If one section is damaged and neighboring tubing remains sound, a component repair avoids discarding useful parts. When several sections are corroded, the comparison changes: separate repairs can require several joints and repeated labor. Compare an itemized repair quote with a complete replacement quote, including the supports and clamps in both.

Pipe contact and an exhaust leak are different problems from an unwanted exhaust note. A larger system will not automatically solve either one. Contact calls for checking routing and support; a leak calls for finding the failed joint or damaged part. Sound preference comes afterward, when the system is mechanically sound.

Why a Muffler Still Belongs in a Performance Conversation

A straight-through design provides a continuous internal gas path while surrounding material absorbs some sound energy. That gives you a way to address sound without assuming every muffler uses the same restrictive internal arrangement. The resulting cabin sound still depends on the complete system: outlet position, pipe length, engine load, and the cab all remain part of the combination.

That is especially relevant to a truck used both for work and family travel. The useful comparison is not just a free-rev clip beside the tailpipe, but whether the chosen configuration remains comfortable during the steady loaded driving you actually do.

What Can a Better Exhaust Actually Deliver?

The useful goals are a less restrictive exhaust path where the existing system is restrictive, the sound you prefer, and a sound replacement for deteriorated parts. Published testing helps put the performance side in perspective.

In a Turbo Diesel Register test (pp. 106–108), an early common-rail 5.9 running fueling modules at about 350 rear-wheel horsepower received a full 4-inch exhaust. Reported changes were 4–7 peak hp, 10–60°F lower pre-turbo EGT, and about 1 psi less drive pressure at a given boost. This was one truck, not a SPEtuner test. The authors judged practical EGT improvement small, if any; these results do not promise a cure for towing heat or establish a 5-inch advantage.

That makes exhaust a supporting upgrade, especially when replacement is already needed. For a daily driver, a correctly sized muffler and secure, leak-free installation may be more noticeable than a small peak-power change. For a modified truck, evaluate the whole exhaust path with the turbo and intended load.

Turbo-Back, Downpipe-Back, or Cat-Back?

These names indicate where a system starts, not a universal box of parts. Ask whether the quoted option includes the downpipe, muffler, extension pipes, tip, clamps, and hangers. A tip or catalytic converter is not automatically included in a “complete” listing.

Choose the SPEtuner Part That Matches Your Job

2003–2004 Early Trucks: Compare the 4-Inch System

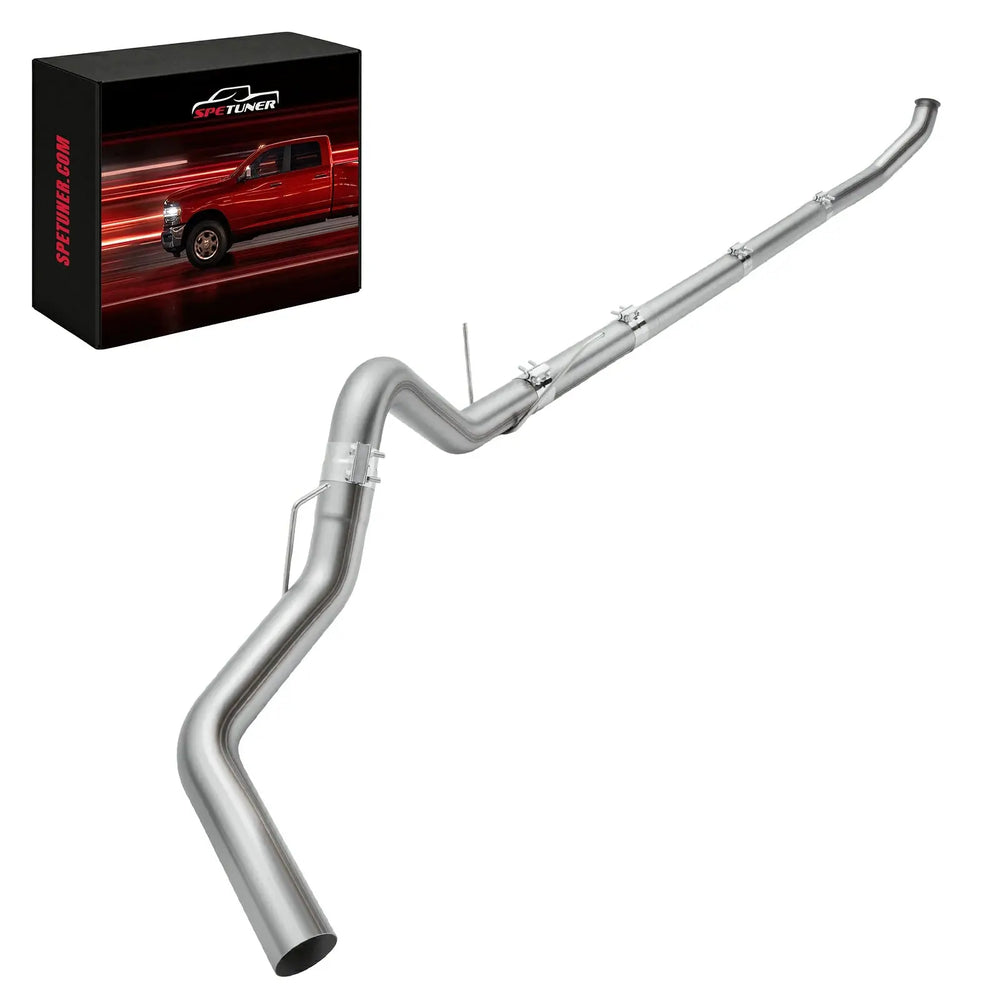

The SPEtuner early 5.9L 4-inch turbo-back listing specifies T409 stainless steel and mandrel-bent construction. It is a starting point for owners replacing several sections together. Confirm the original or aftermarket turbo connection and the selected option’s contents before ordering.

[[product-recommend:1]]

2004.5–2007 Trucks: Compare the Later Options

Later 2004.5–2007 trucks need a separately confirmed exhaust application. The 4-inch versus 5-inch choice comes after identifying the turbo connection and the sections being replaced; diameter cannot settle the kit’s fitment or contents.

Healthy Pipes, Wrong Sound: Start with the Muffler

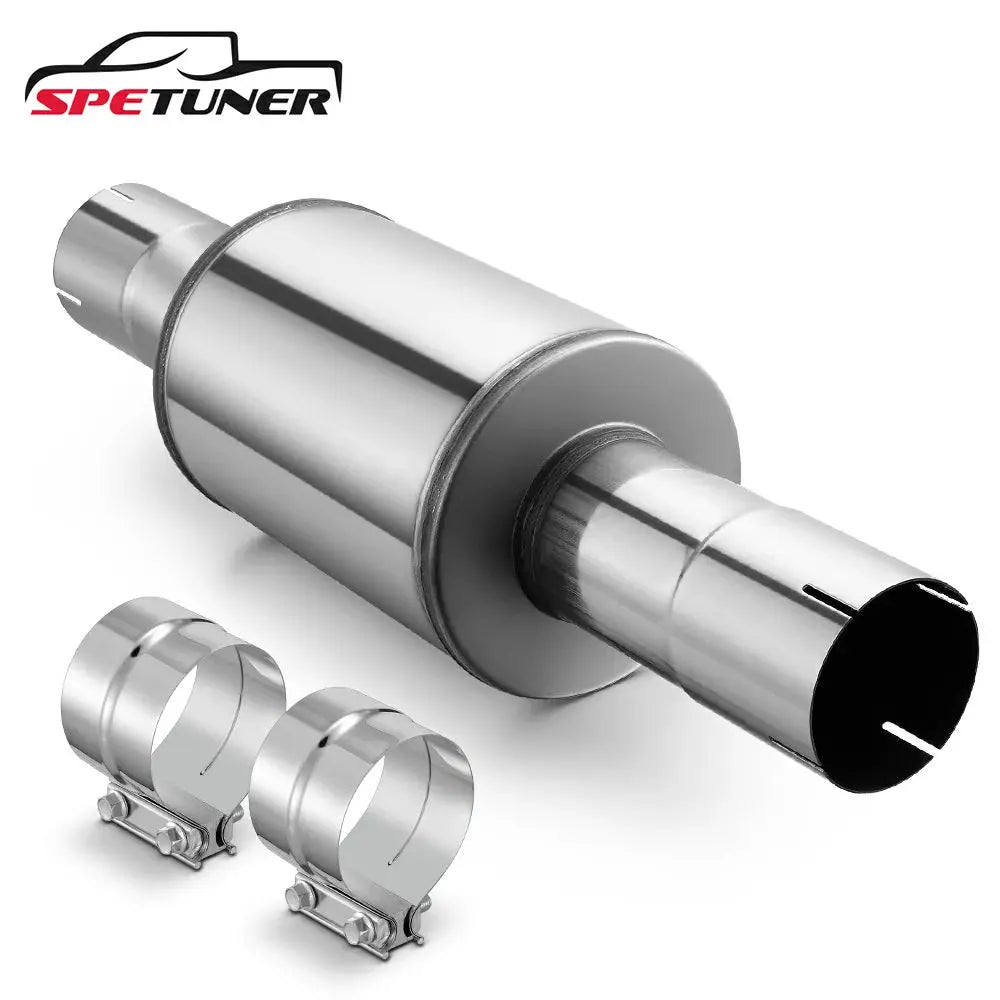

The SPEtuner universal diesel muffler offers 4-inch and 5-inch connections, T409 construction, and a straight-through design with sound-absorbing materials. Choose it when you want sound control while retaining serviceable tubing. Measure the space first: this is a universal component, and installation hardware is not included.

[[product-recommend:2]]

One Fitment Check Before Checkout

Within the 2003–2007 5.9 Cummins range, record the engine/year split, cab and bed, current turbo, connection sizes, and required emissions equipment. Ask the installer to include adapters, clamps, trimming, and worn supports in the total. The 2007 engine transition makes displacement especially important when the vehicle history is uncertain.

A factory 2003–2007 Ram 5.9L has no DPF. The catalytic converter and muffler serve different purposes, and a DPF label on a product does not create a need for a DPF-delete tune. Confusing DPFs and other exhaust components can turn a simple replacement into an unnecessary shopping list.

For road-going trucks: retain required emissions equipment. A race-use label alone does not establish lawful use; see EPA guidance on emissions tampering.

FAQ

Q1: Does turbo-back include the turbocharger?

A1: No, it normally describes the system downstream of the turbo outlet. Check the component list for the exact kit.

Q2: Is a larger exhaust tip a full diameter upgrade?

A2: No. A larger tip changes the visible outlet, not the upstream pipe sizes.

Q3: Should I replace the entire system for a worn muffler?

A3: Not automatically. If the pipes and supports are sound, a correctly measured muffler replacement is a more focused job.
