Quick Answer: Is a 5.9 Cummins Coolant Bypass Worth It?
It is worth considering when sustained towing or a modified build makes rear-engine coolant circulation a priority. Its purpose is to add a controlled coolant route, not to make horsepower. For a healthy stock daily driver, it is optional. SPEtuner’s 2003–2007 5.9L variant is listed for manual-transmission trucks and was $149.00 when checked September 18, 2026.
For a truck that spends long stretches pulling a trailer, an upgrade’s value can be how well it supports the operating conditions you already ask the engine to handle. A coolant bypass belongs in that discussion—but the reason to buy it should be clear before the truck goes into the shop.
The Benefit: An Additional Route at the Rear of the Engine
Fleece’s 5.9L design explanation identifies rear-cylinder coolant circulation, local temperature, and pressure as the problems its bypass addresses. It describes a secondary thermostat responding to temperature and lists reduced rear-cylinder temperature and damaging pressure buildup among the intended benefits. Those are manufacturer claims for its design, not a published SPEtuner before-and-after test.

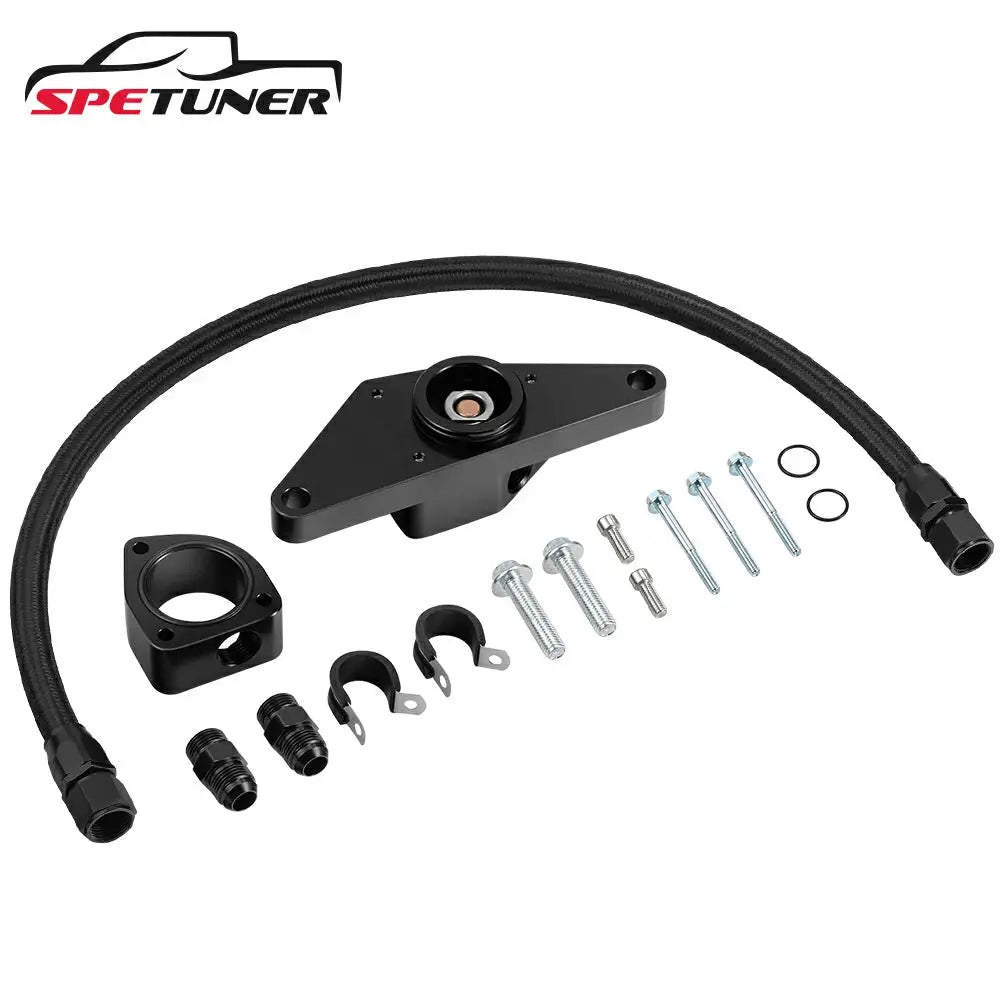

SPEtuner lists a braided bypass line, a temperature-activated secondary thermostat, AN fittings, and mounting hardware for its 5.9L manual-transmission option. The added route is intended to improve circulation where the kit connects. The exact opening temperature and routing should come from this kit’s instructions, not another brand’s specifications.
[[product-recommend:1]]
The useful distinction is between local circulation and overall cooling capacity. A bypass changes a coolant path. It does not add radiator area, restore a worn water pump, or repair a fan fault. It also does not mean removing the main thermostat.
Understand the Three Different Cooling Questions
Circulation: where coolant travels and how the added route interacts with the existing system. A rear bypass is designed around this question. Its connection points, thermostat, and hose routing are functional parts of the design, not simply items in the box.
Heat rejection: how the cooling system transfers heat to the surrounding air. The radiator and airflow still have to do that work. Improving a local coolant route does not make a blocked airflow path, damaged radiator, or malfunctioning fan disappear.
Measurement: where and under what conditions a temperature is recorded. The dashboard indication comes from the vehicle’s sensor arrangement; it is not a temperature map of every cylinder. A useful evaluation of local cooling would need measurements that actually represent the area being discussed.
These distinctions explain why an owner can be interested in a bypass without expecting a dramatic change on the dashboard, and why a cooler dashboard reading alone does not establish that a particular rear-cylinder problem was solved.
Make the Buying Decision Around Your Duty Cycle
A short unloaded trip and a long climb with a trailer expose the cooling system to different demands. Write down the use that matters to you: how long the truck stays under load, the route, ambient conditions, and whether any abnormal behavior is repeatable. Share that description with the installer alongside maintenance history and existing modifications.
For a healthy manual-transmission tow truck, the intended additional rear-circulation route is a concrete reason to consider the kit. For a truck losing coolant, the same purchase can distract from a fault that needs repair. The distinction is whether you are adding a planned capability to a working system or hoping an upgrade will identify and fix an unknown problem.
What Would Make a Temperature Claim Useful?
A meaningful before-and-after result would identify the truck and kit, sensor location, load, operating conditions, and changes made at the same time. A different thermostat, fresh coolant, radiator cleaning, or repaired fan could influence a comparison. Knowing those details lets you judge whether the reported benefit applies to your own purchase.
What Positive Evidence Supports—and What It Does Not
| Evidence | Useful takeaway | Limit |
|---|---|---|
| Manufacturer design explanation | There is a specific mechanical purpose: rear circulation and temperature/pressure management. | It does not establish a universal failure rate or guaranteed prevention. |
| SPEtuner’s listed components | The kit provides the hose, secondary thermostat, and fittings for its stated application. | A component list is not an instrumented temperature test. |
| Published numerical performance evidence reviewed for this article | No controlled SPEtuner 5.9L temperature-reduction test was identified. | A fixed drop in °F or a repair-cost saving cannot be promised. |
The product page advertises up to 20°F lower rear-cylinder coolant temperature, but does not supply the test vehicle, load, sensor placement, or comparison procedure with that claim. Treat that number as an unverified product claim, not your expected result. The purchase case here is the kit’s intended circulation function and fitment.
A single dashboard reading also cannot show the temperature of each rear cylinder. Likewise, an EGT reduction reported for an exhaust upgrade is not coolant-temperature evidence for a bypass.
Who Should Put It on the Shortlist?
| Truck and use | Recommendation | Why |
|---|---|---|
| Healthy stock daily driver | Optional; maintain the existing system first | There may be no current operating need that justifies the installation. |
| Frequent sustained towing or long climbs | Consider during a cooling-system review | The intended rear-circulation benefit is relevant to sustained load. |
| Modified engine with a planned cooling strategy | Discuss it with the builder | Choose the route and thermostat arrangement as part of the complete system. |
| Rear-engine access already available during other work | Ask for an incremental installation quote | Shared access may reduce duplicate labor; the shop must confirm the overlap. |
| Overheating, coolant loss, or contamination | Diagnose first | A bypass does not repair a failed component or head gasket. |
What Will the Job Cost?
The 2003–2007 manual variant was listed at $149.00 on September 18, 2026. Check the current price at checkout and budget for the whole installation:
- Kit: selected variant plus applicable shipping and tax.
- Labor: access, component removal if required, routing, refill, and leak inspection.
- Consumables: correct coolant and any seals or supplies specified by the installer.
- Existing faults: quote repairs separately so an overdue repair is not counted as a bypass benefit.
Ask for a written installed quote and the exact kit instructions. The listing offers an installation PDF on request; get it before scheduling the job. A lower kit price is useful only when the complete job suits your truck and budget.
SPEtuner Fitment: Choose the 5.9L Manual Variant
| Selected option | Application |
|---|---|
| 2003–2007 | 5.9L Cummins, manual transmission only |
| 2007.5–2018 | 6.7L Cummins, manual and automatic; not a substitute for a 5.9 automatic kit |
Transmission restrictions need checking throughout the 2003–2007 5.9L Cummins parts range. This listed kit’s manual-only fitment does not mean automatic 5.9 trucks can never use a bypass; they need a specifically compatible solution. An uncertain 2007 engine identification should also be resolved before ordering.
Installation and Ownership Checks
Have the installer check the rear-engine connection, thermostat specification, hose clearance, and existing aftermarket equipment. Follow the kit’s refill and bleeding procedure. After installation, inspect for leaks and hose contact; include those connections in routine service checks.
For a useful before-and-after comparison, record the same route, trailer/load, approximate weather, speed, and measurement location. Do not open a hot cooling system or keep driving an overheating truck to collect data.
FAQ
Q1: Does it require a delete tune?
A1: The bypass itself is a mechanical cooling modification and does not require an emissions-delete tune.
Q2: Will it fix a blown head gasket or coolant leak?
A2: No. Diagnose and repair the fault first.
Q3: What temperature drop should I expect?
A3: There is no verified universal figure for this kit. Its intended benefit is the additional controlled coolant route; results depend on operating conditions and measurement location.
Q4: Can I install the later 6.7 option on my 5.9 automatic?
A4: Do not use the later option to bypass the fitment restriction. It belongs to a different engine application.
Sources
- Fleece: manufacturer explanation of its 5.9L bypass design
- Cummins: engine-specific service information
